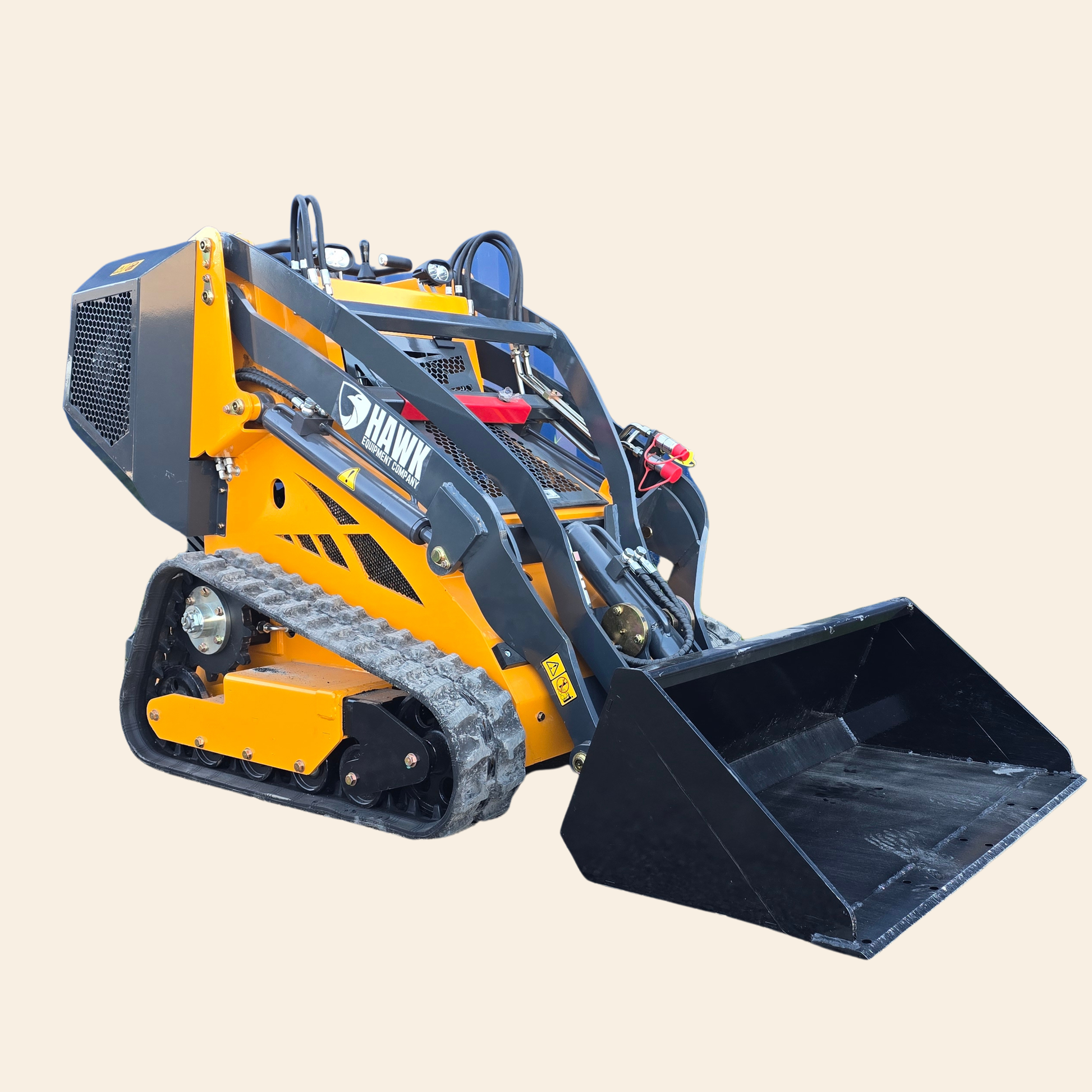

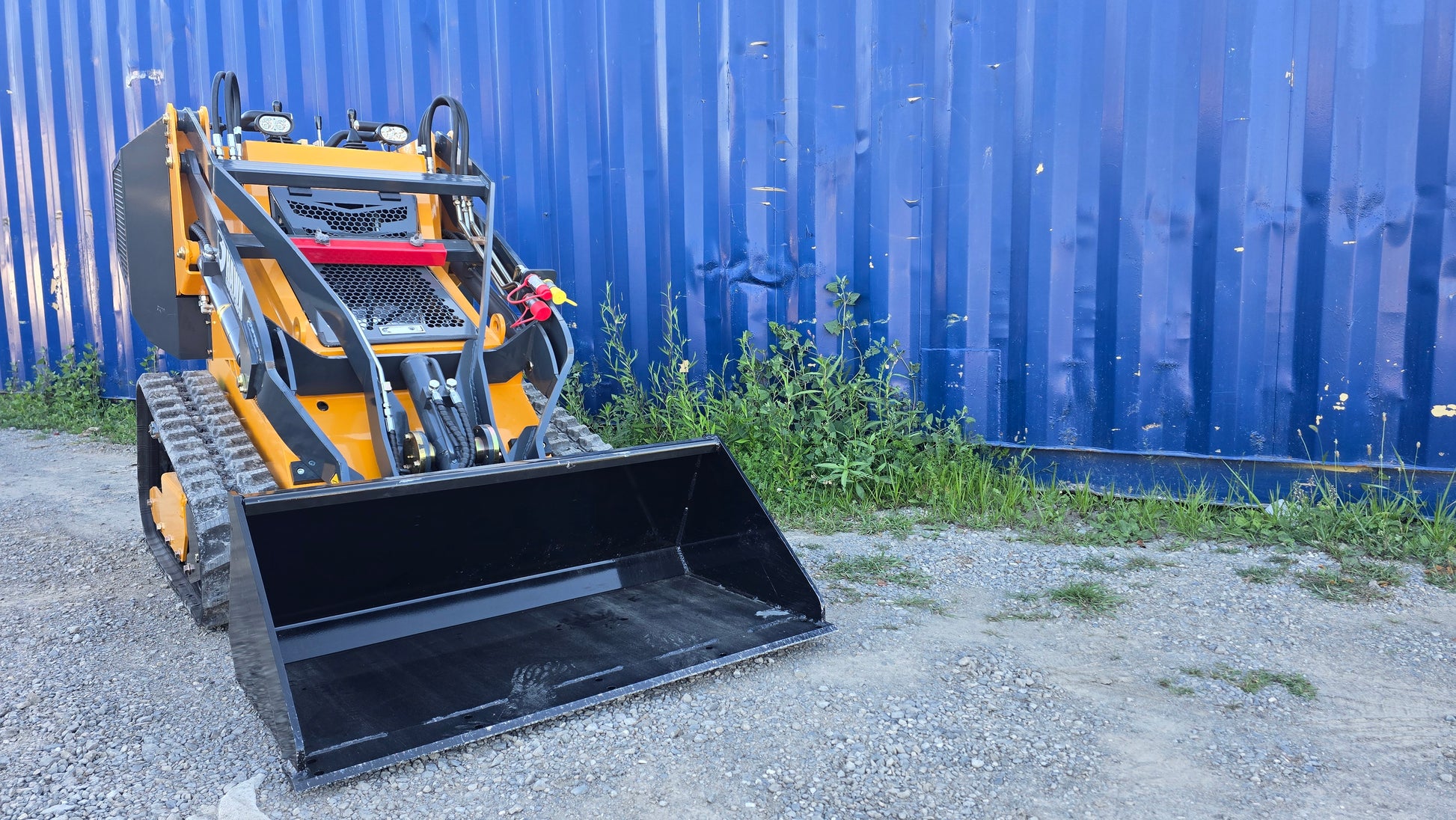

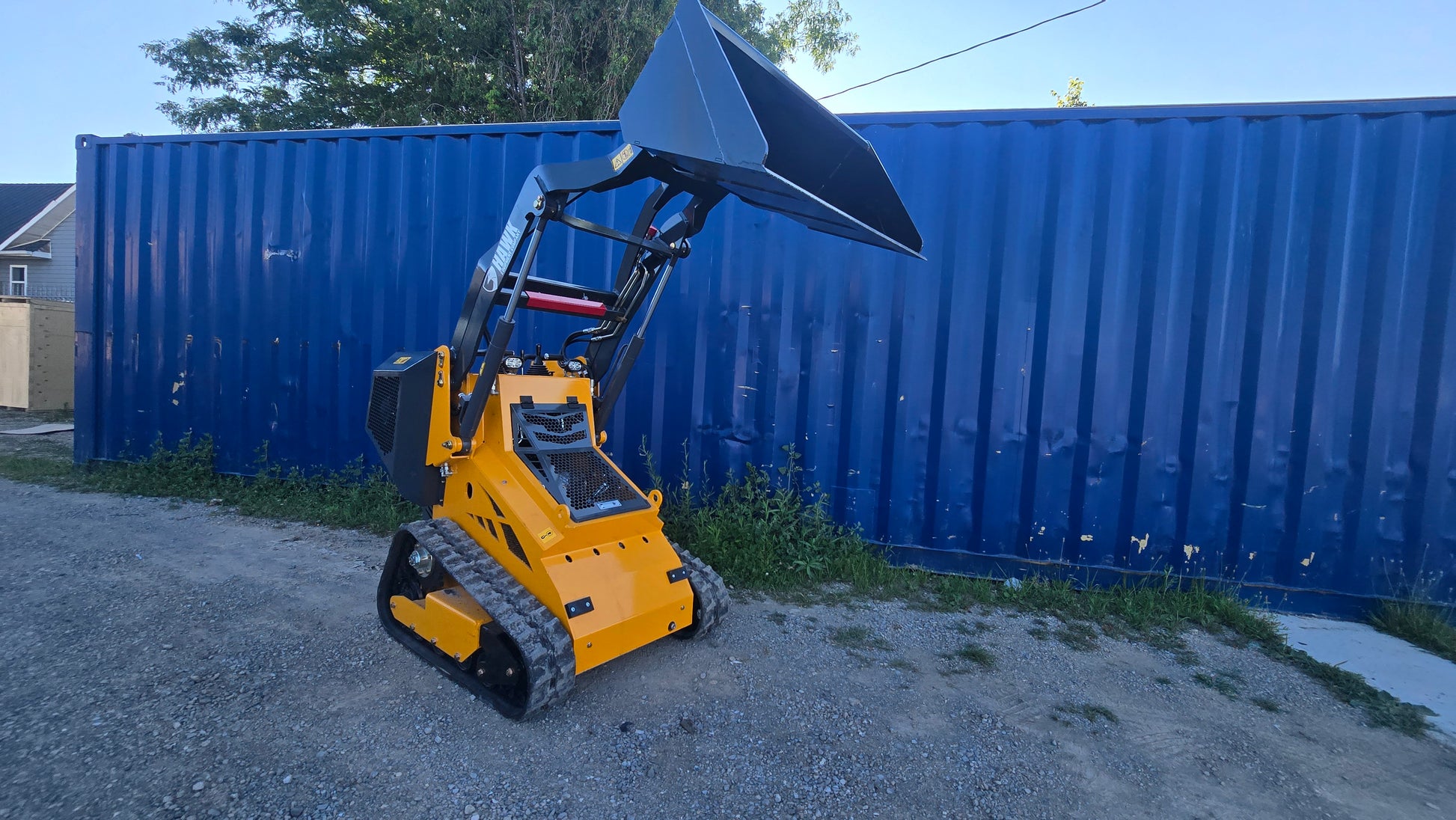

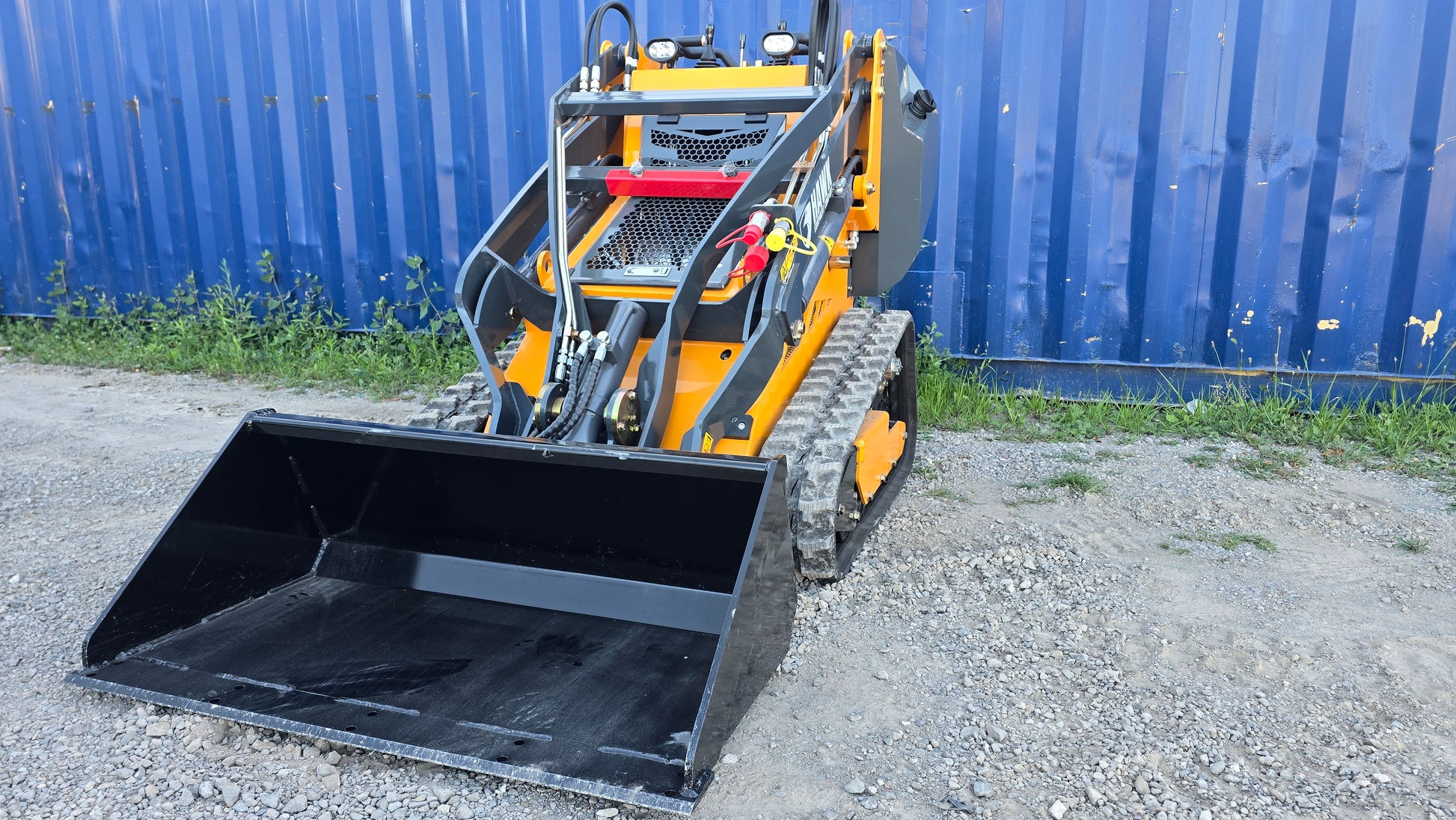

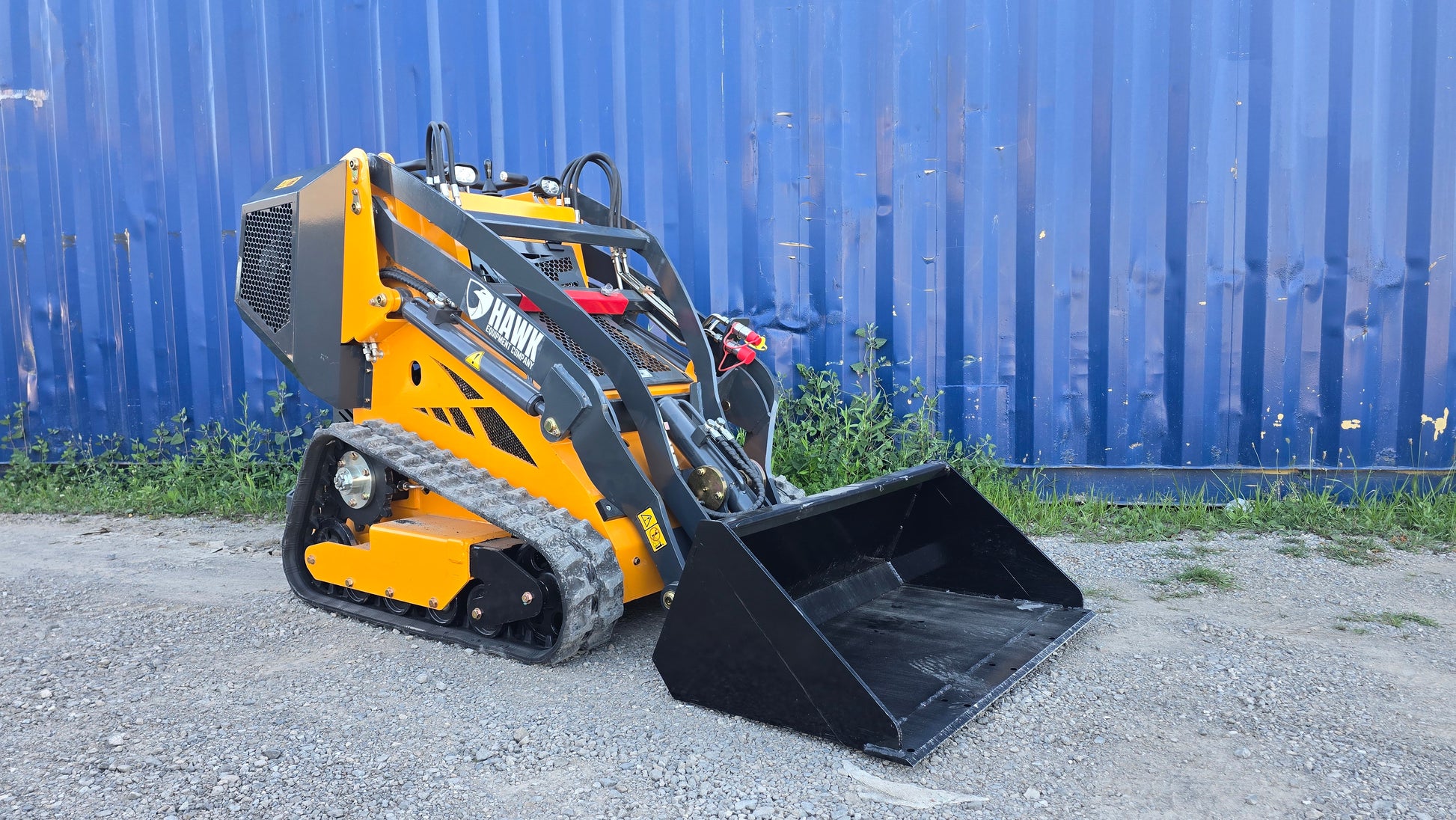

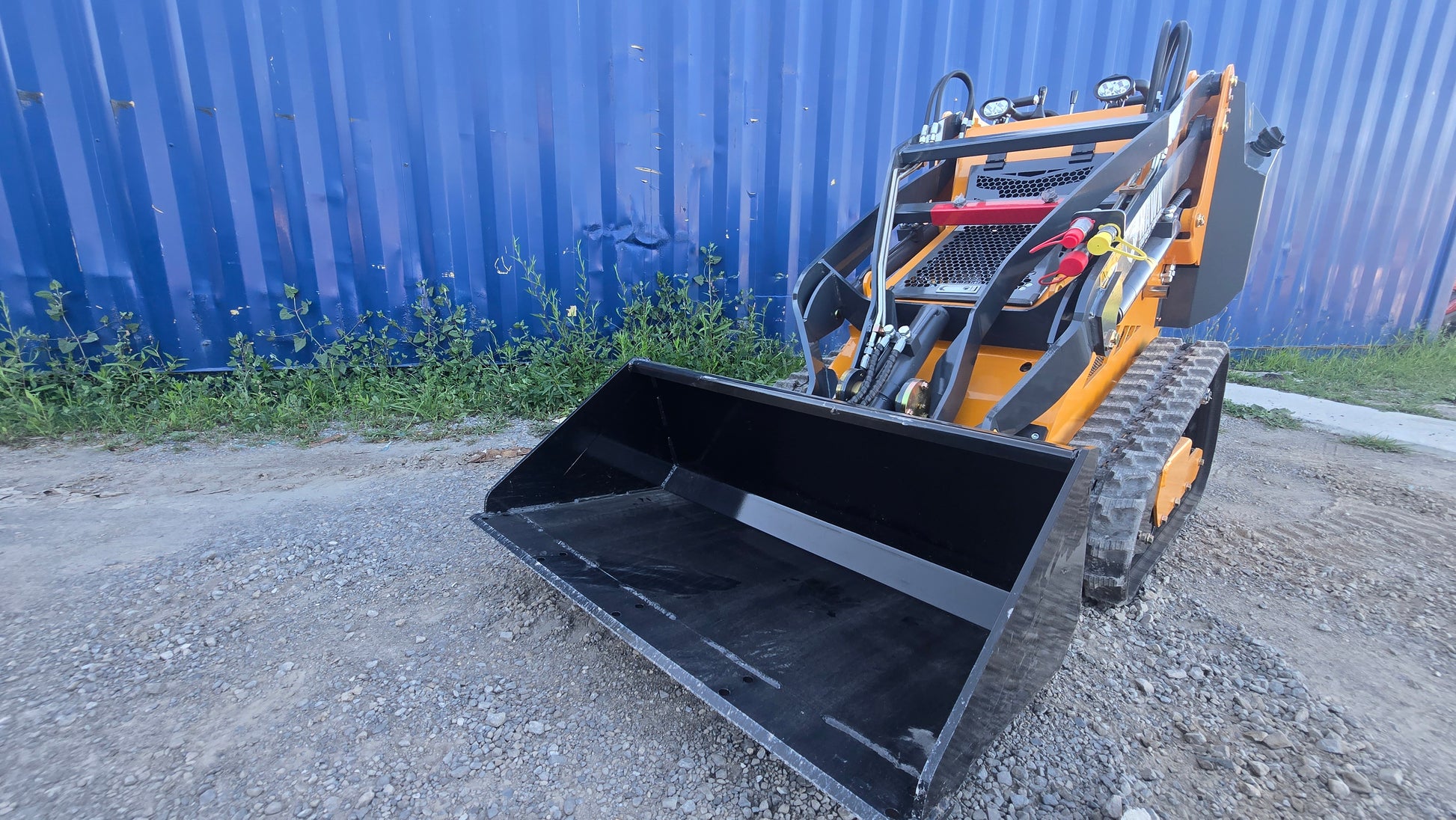

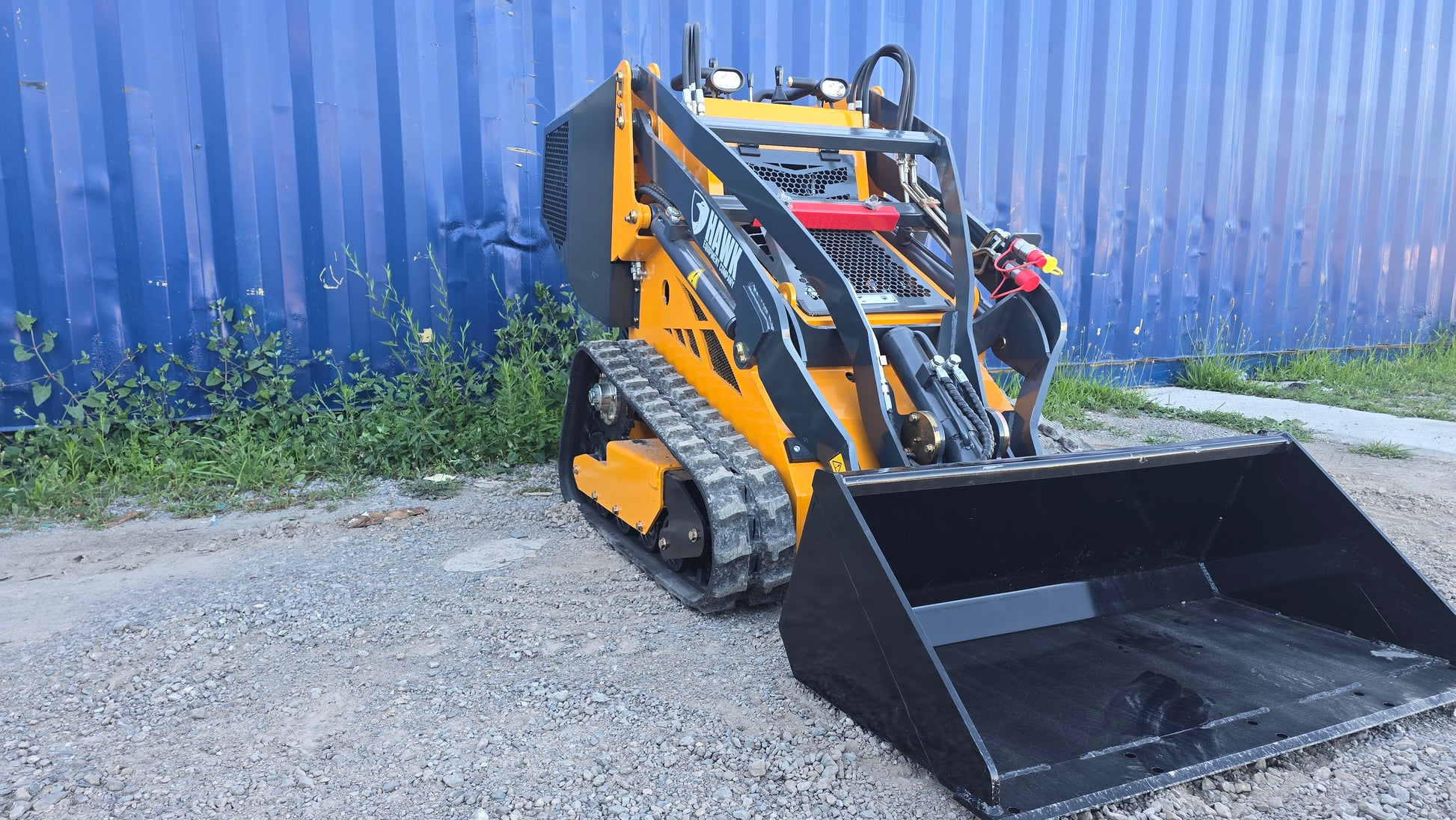

HEC Mini Skid Steer 3 Pumps 23 HP with Briggs & Stratton Engine

Tackle tight spaces with ease using HAWK Equipment’s Mini Skid Steer with 3 pumps. Designed for efficiency, durability, and smooth operation, this compact skid steer loader is engineered to handle demanding tasks in construction, landscaping, agriculture, and material handling. With a reliable Briggs & Stratton engine, a responsive hydraulic system, and a compact footprint, it delivers impressive lifting power and maneuverability—without compromising stability or control.

Engine & Powertrain

Rated Power: 18.2 kW (23 HP)
Operating Speed: 3600 RPM
Noise Level: Less than 95 dB

Hydraulic System Performance

Hydraulic Pressure: 17 MPa
Lift Time (Raise): 4 seconds
Dump Time: 1.3 seconds
Lowering Time: 3.2 seconds

Load Capacity & Operating Performance

Rated Operating Load: 860 lbs
Maximum Lifting Force: 992 lbs
Bucket Capacity: 4.59 cubic feet
Travel Speed: 2.8 mph
Operating Weight: 2,116 lbs

Dimensions & Working Range

Maximum Working Height (H3): 97.4 inches
Maximum Pin Height (H2): 77.8 inches
Maximum Dumping Height (H1): 50.2 inches
Dumping Distance (E): 6.9 inches
Maximum Dumping Angle (a3): 70°
Bucket Rollback on Ground (a2): 25°
Departure Angle (a1): 23°

Overall Dimensions & Maneuverability

Total Height: 51.2 inches
Ground Clearance: 4.7 inches
Wheelbase: 35.0 inches
Overall Length (Without Bucket): 69.6 inches
Overall Length (With Bucket): 91.3 inches
Overall Length (Folded Pedal, No Bucket): 64.3 inches
Total Width: 40.6 inches
Bucket Width: 42.1 inches
Forward Turning Radius: 56.7 inches

Compact design with tight turning radius ensures easy maneuverability in confined spaces and demanding work environments.
