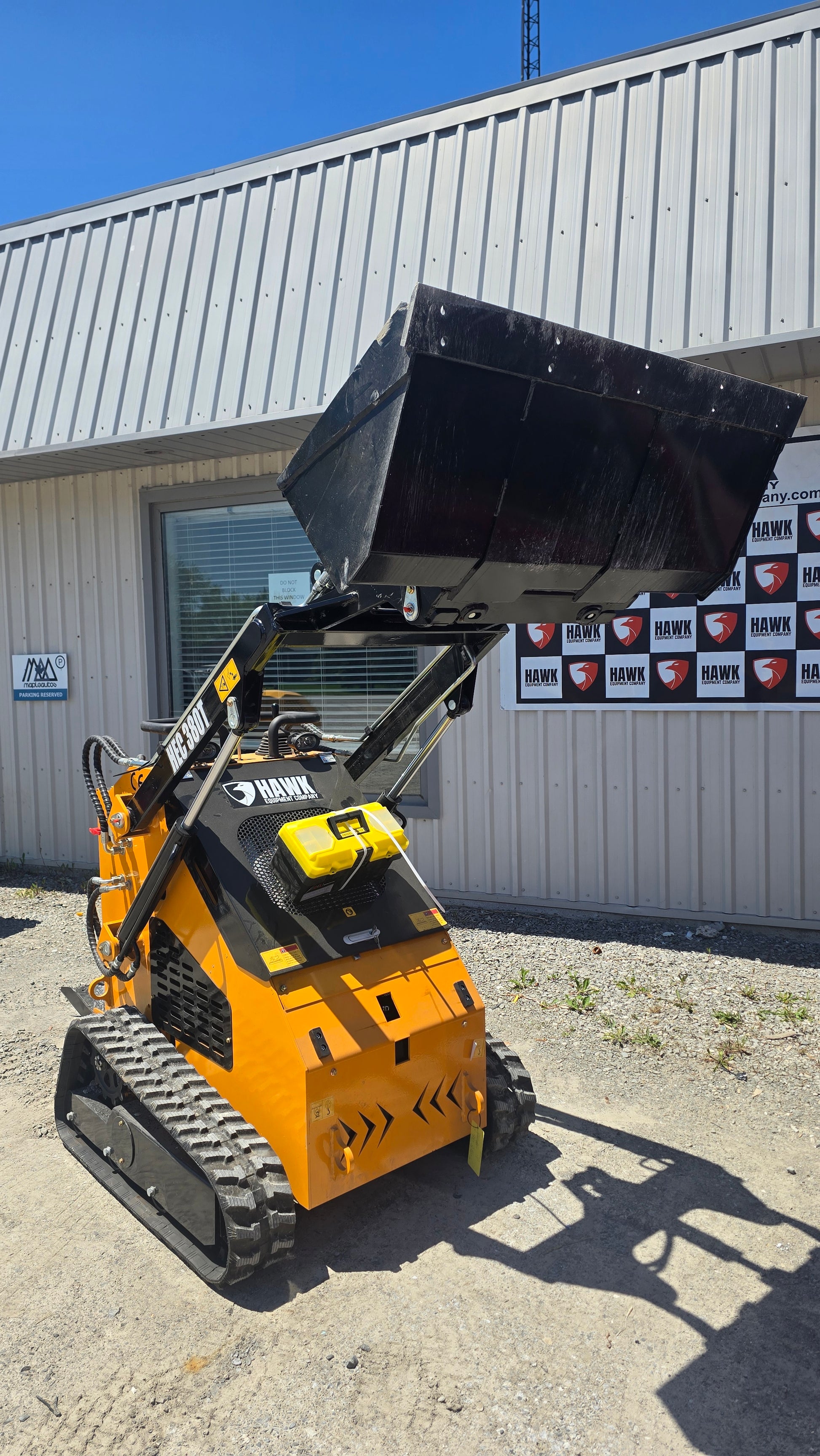

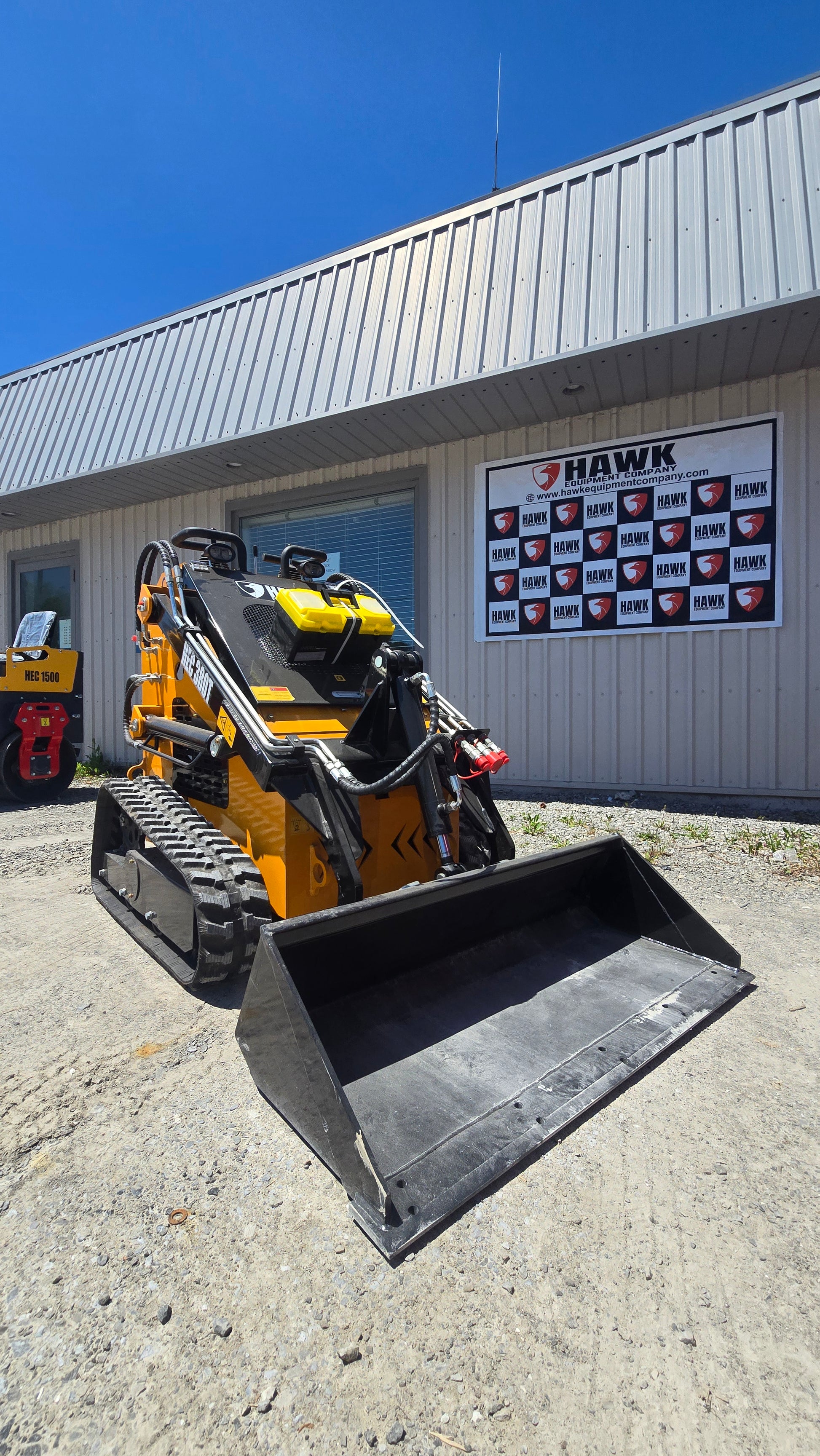

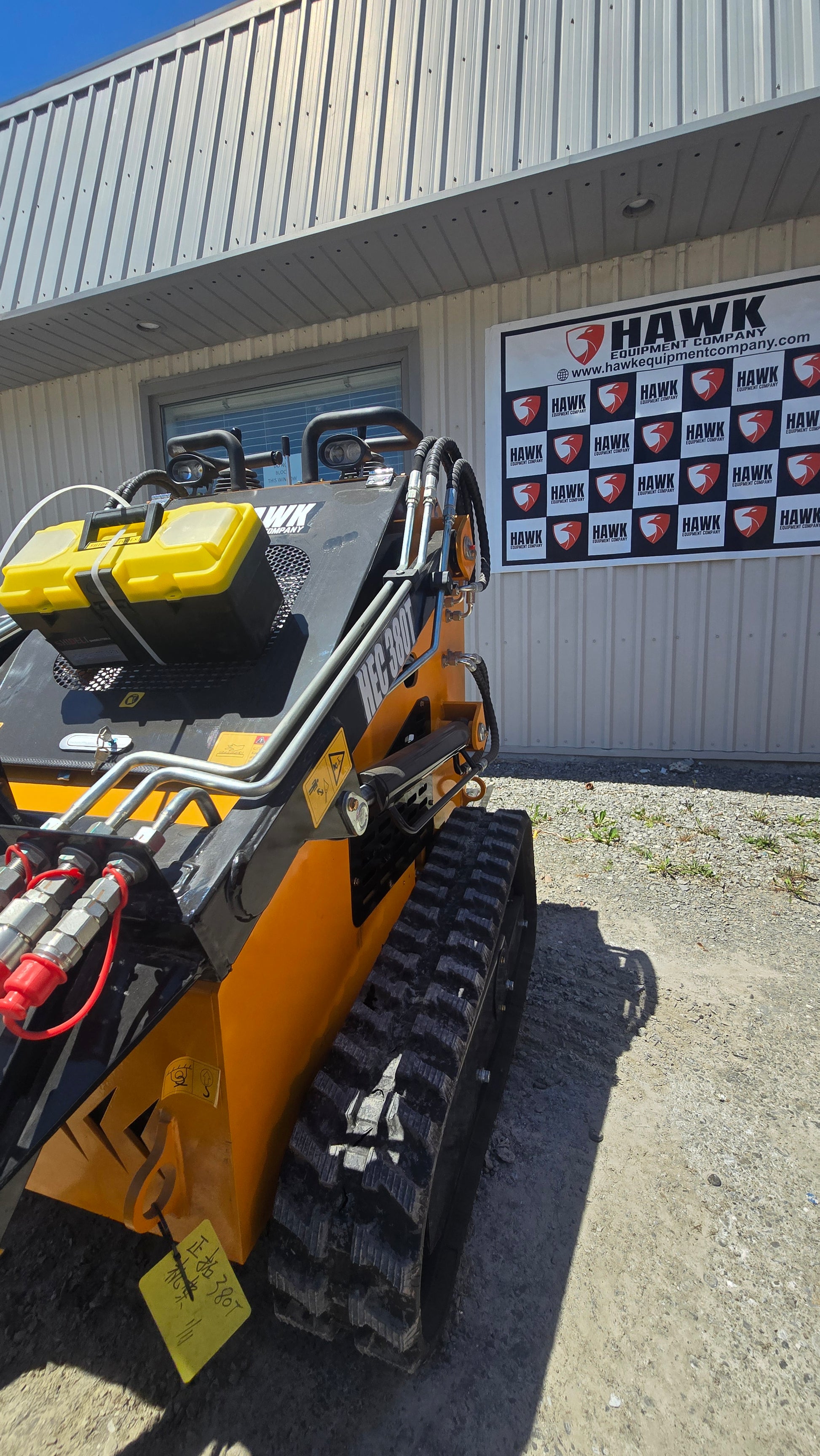

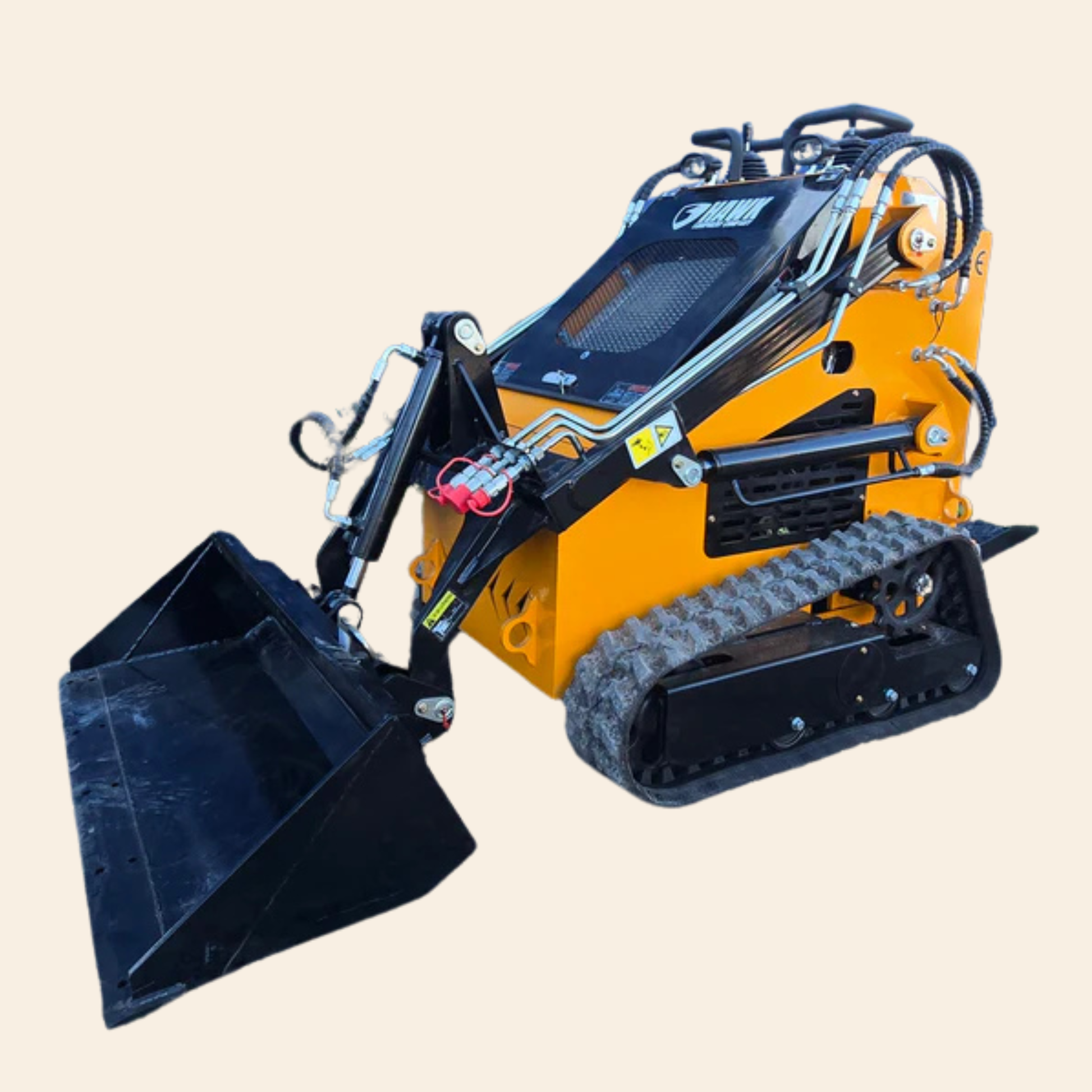

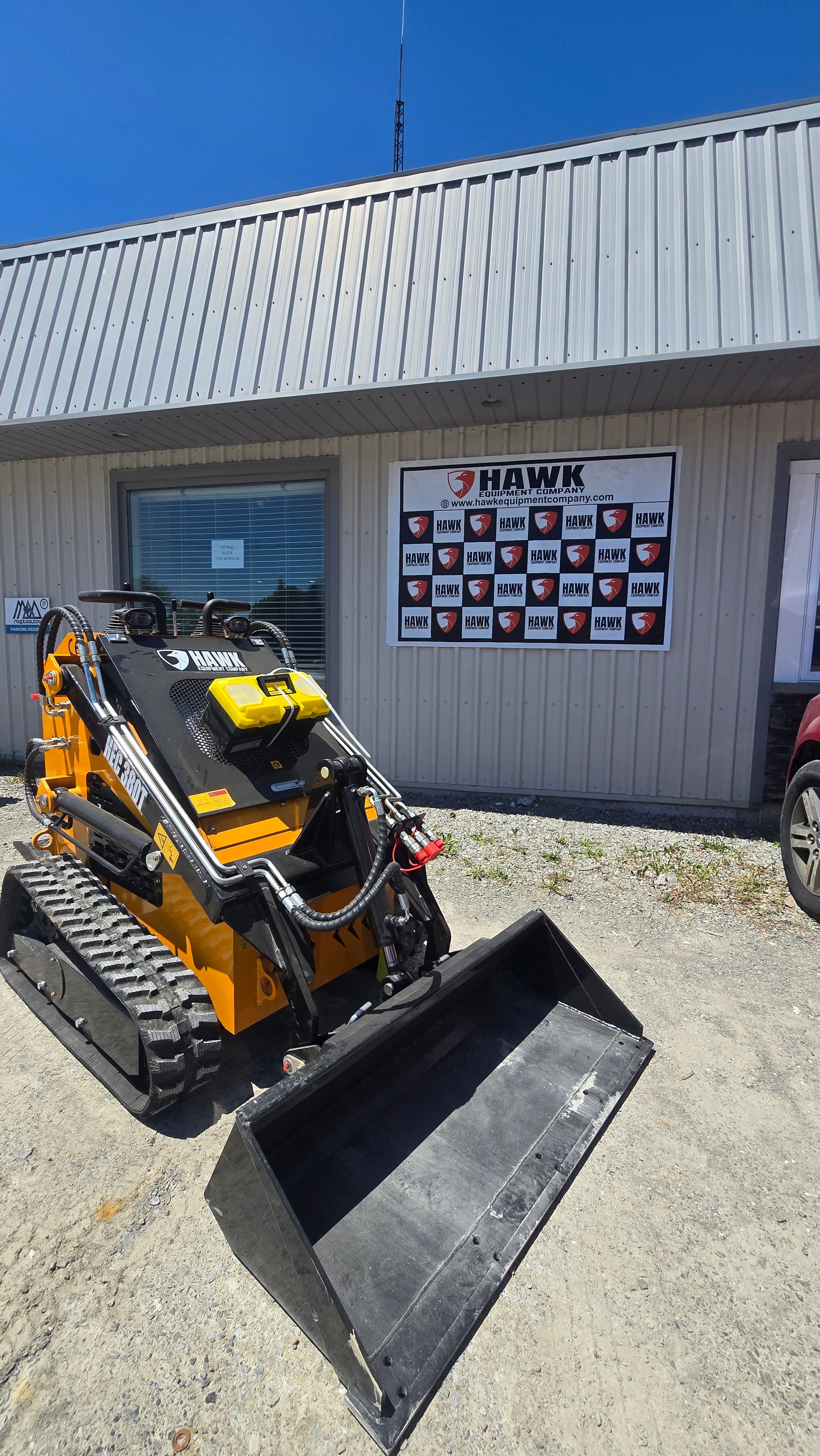

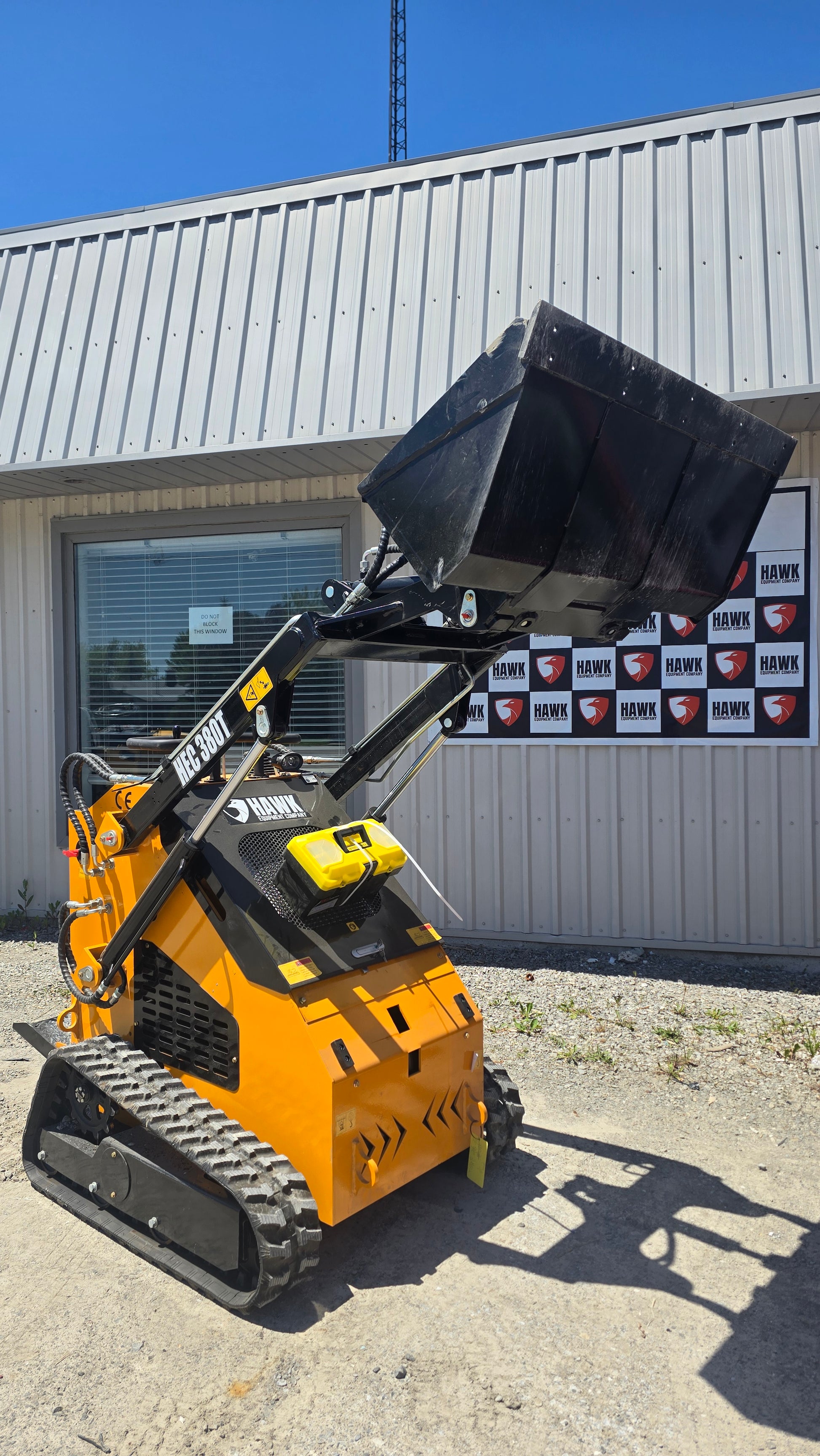

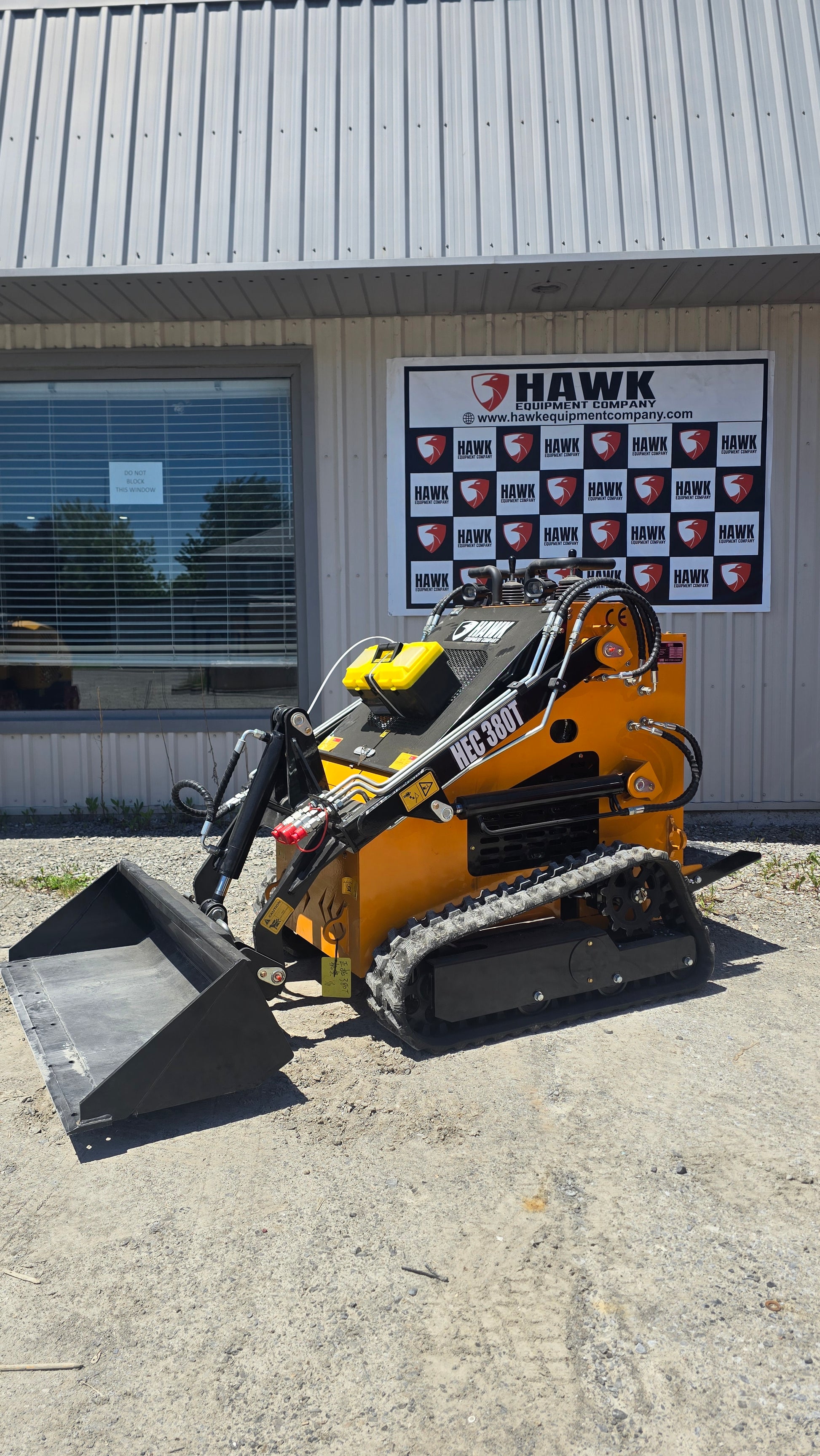

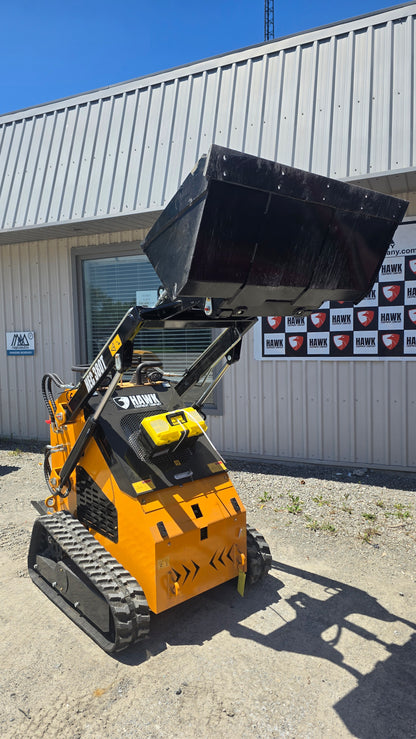

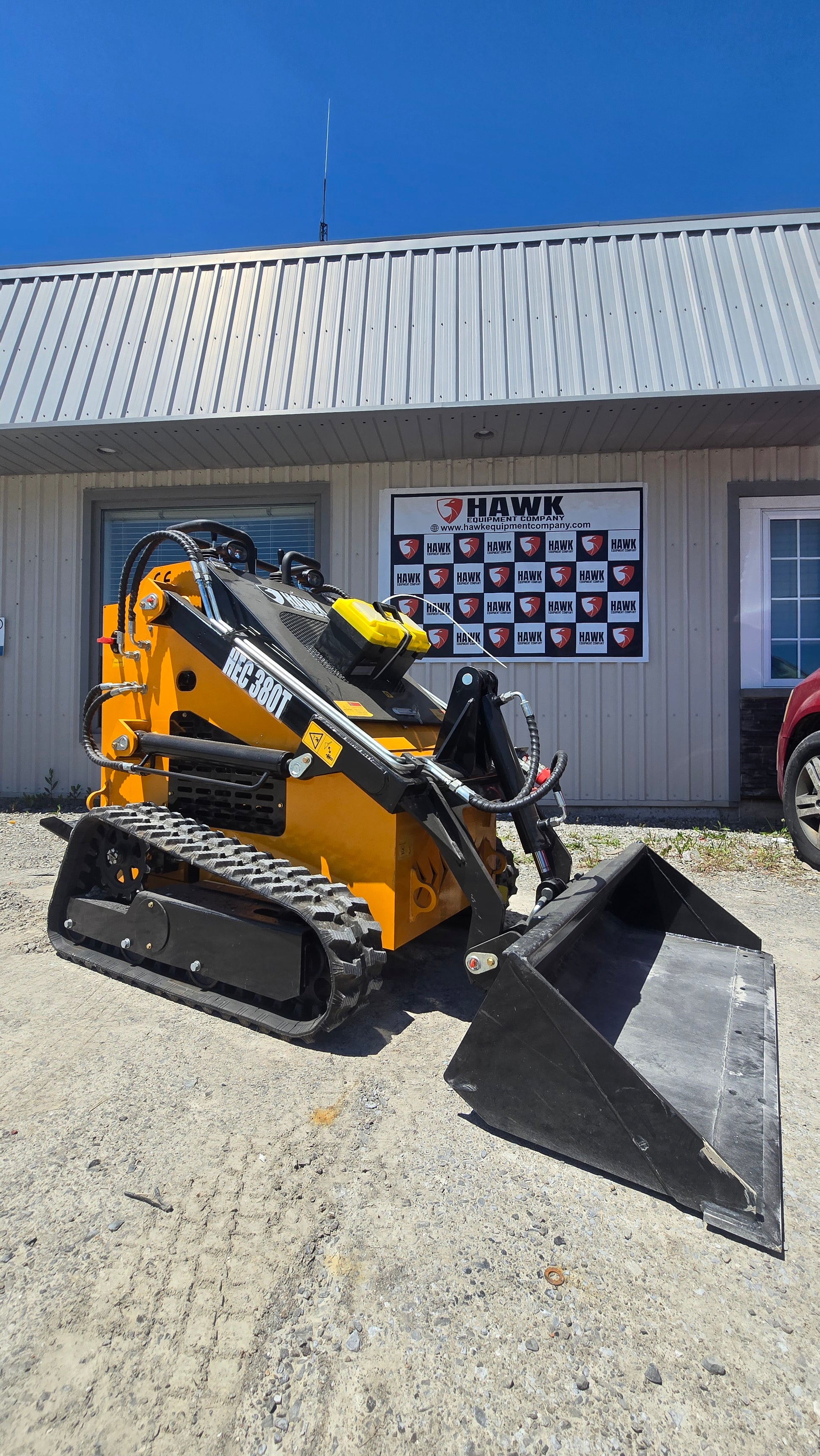

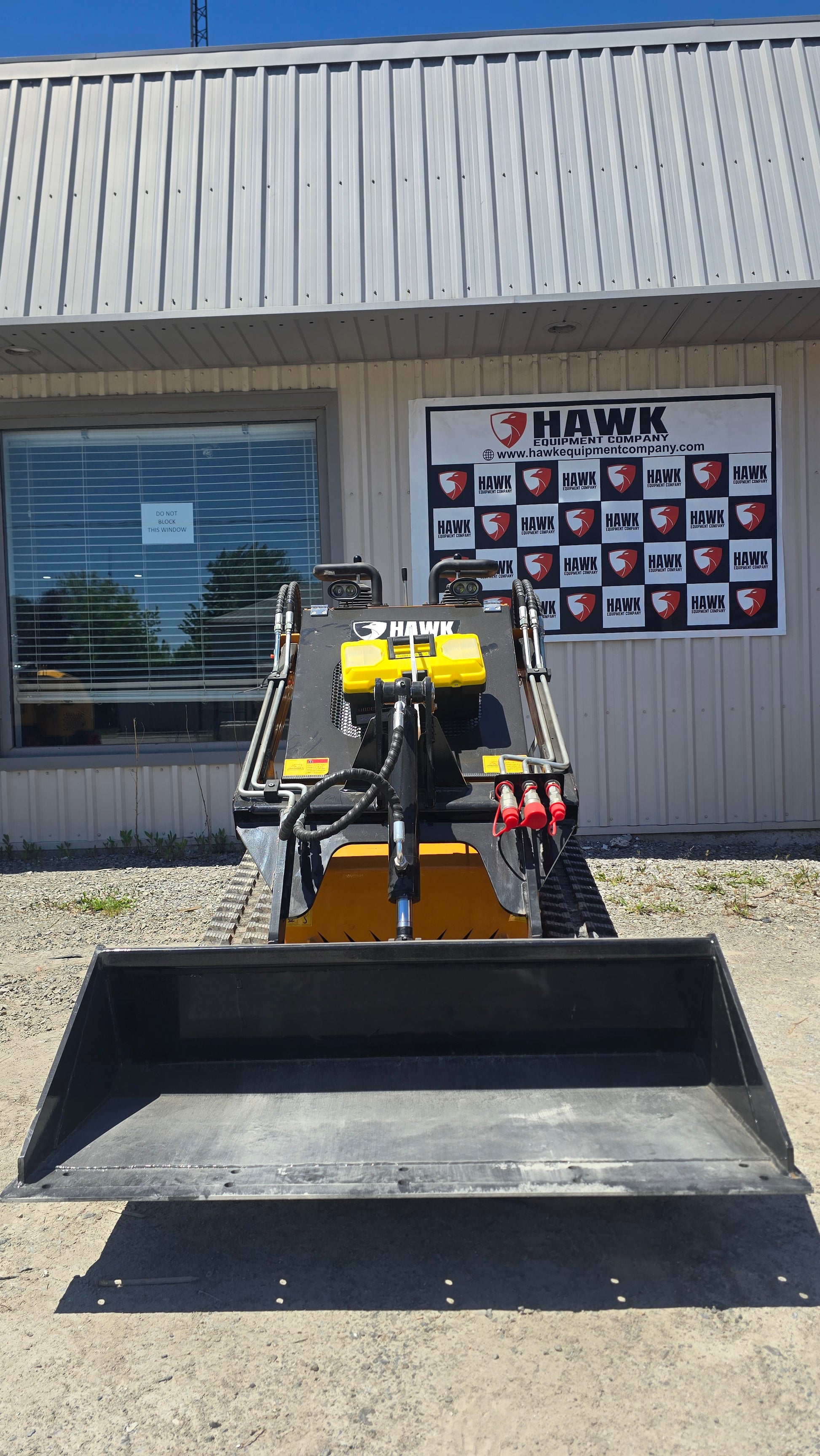

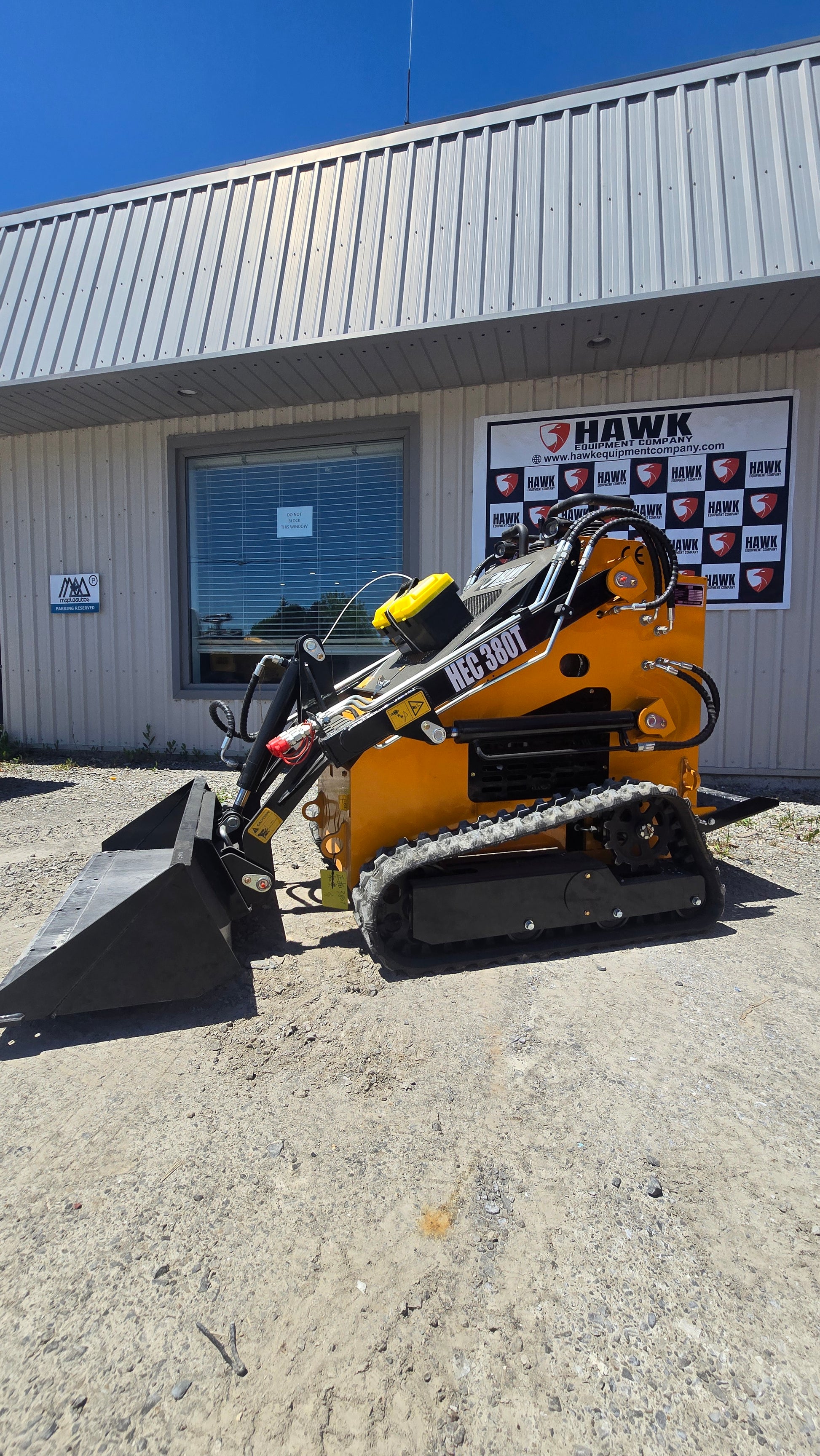

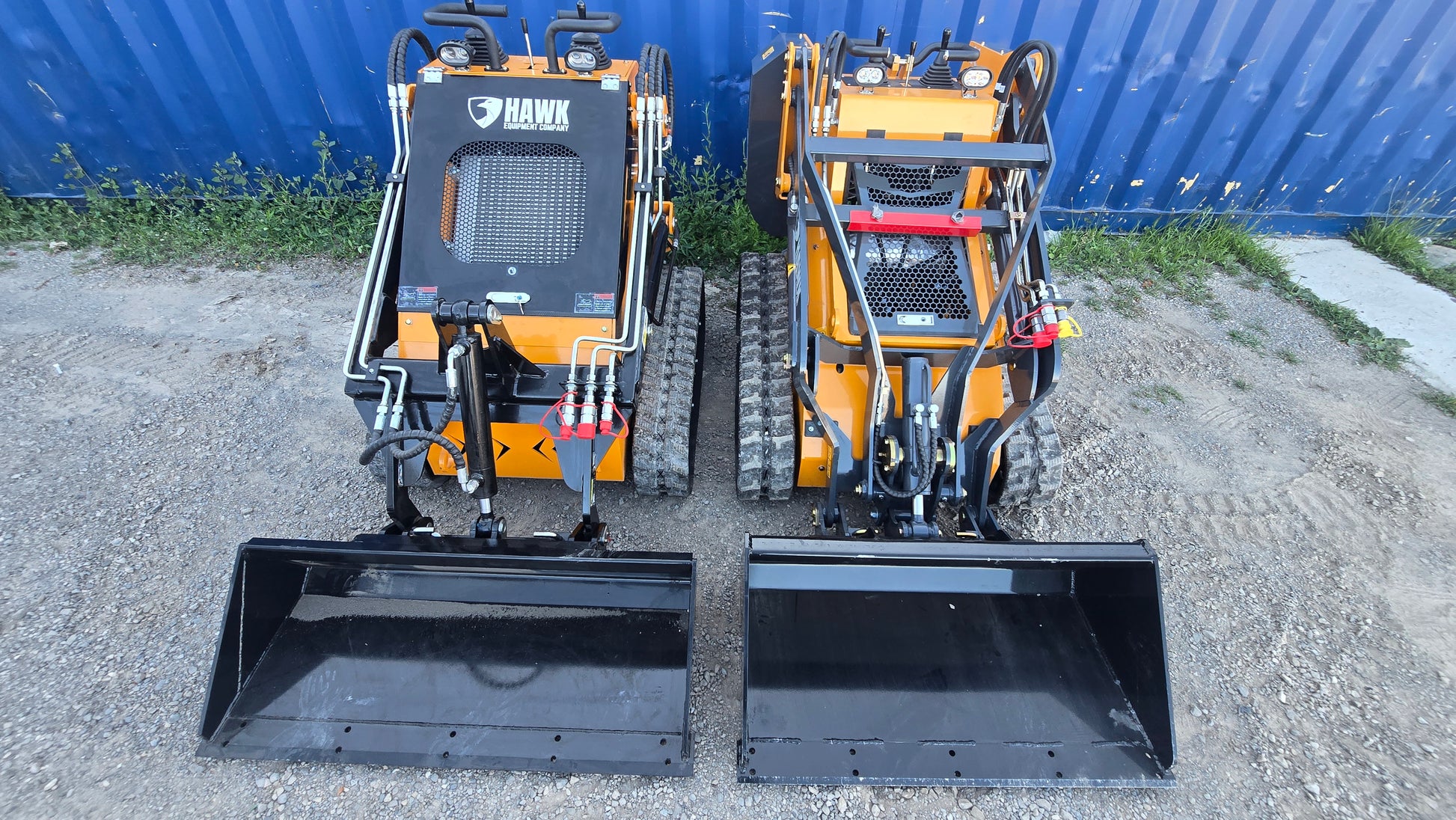

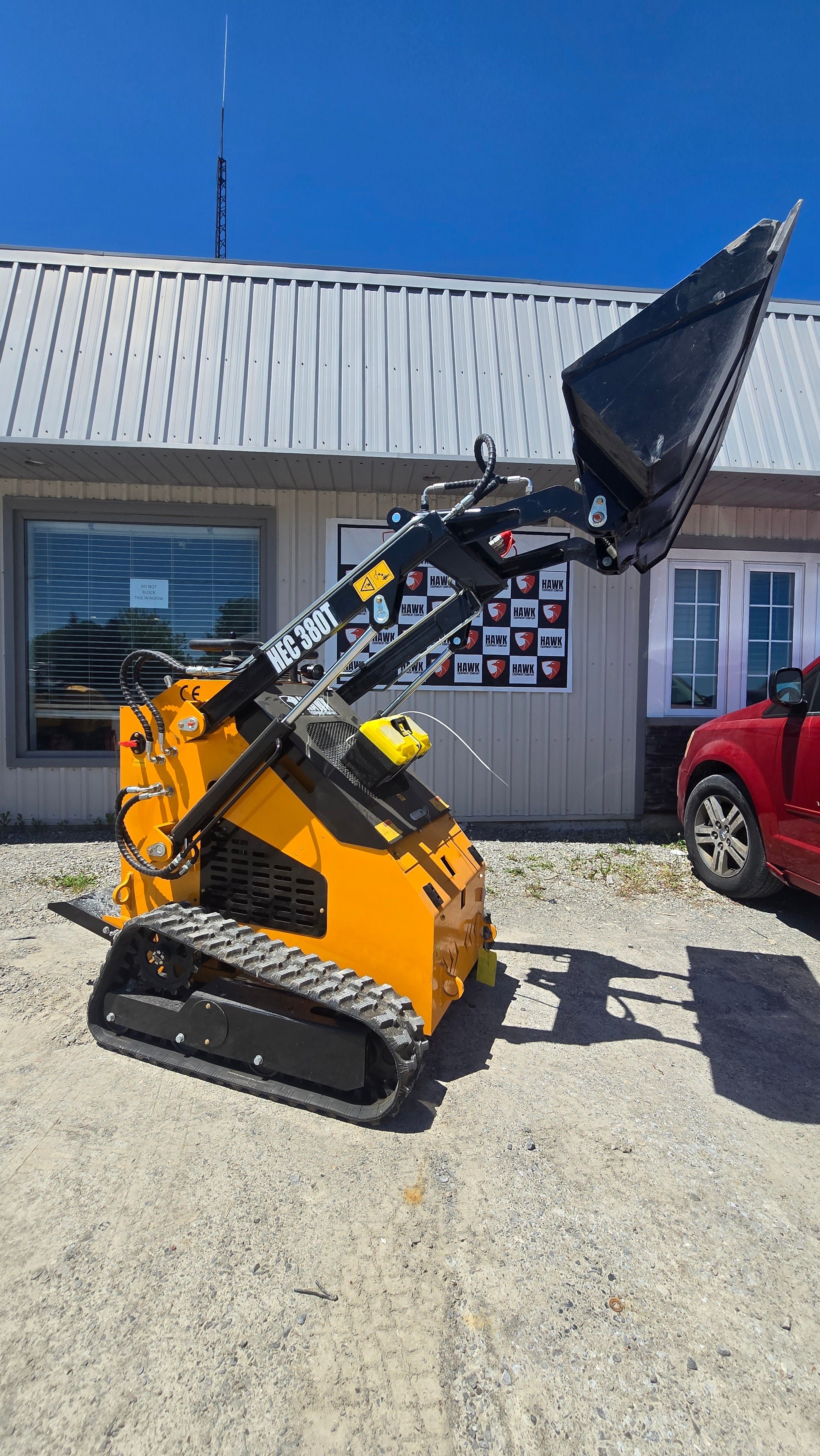

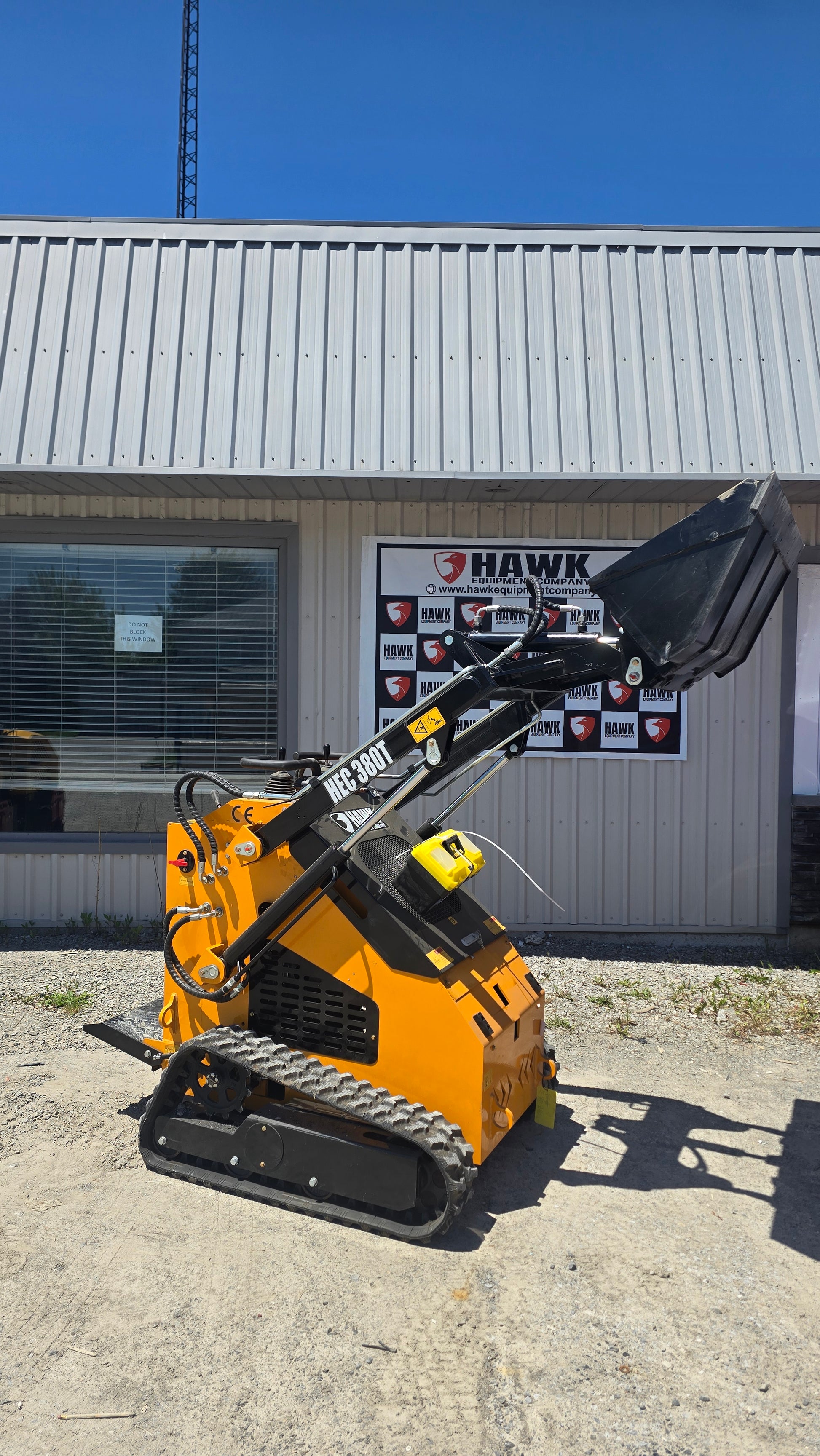

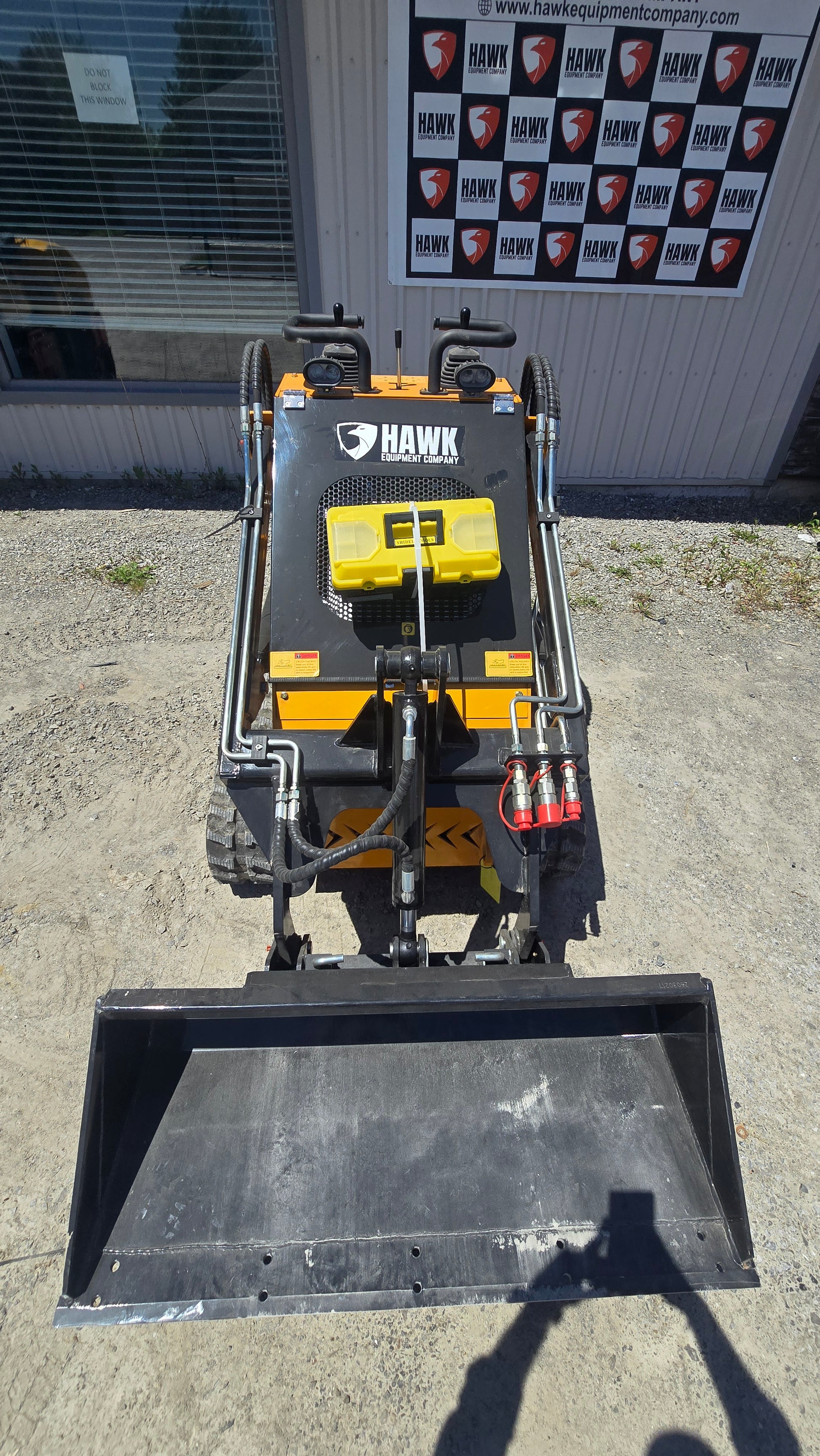

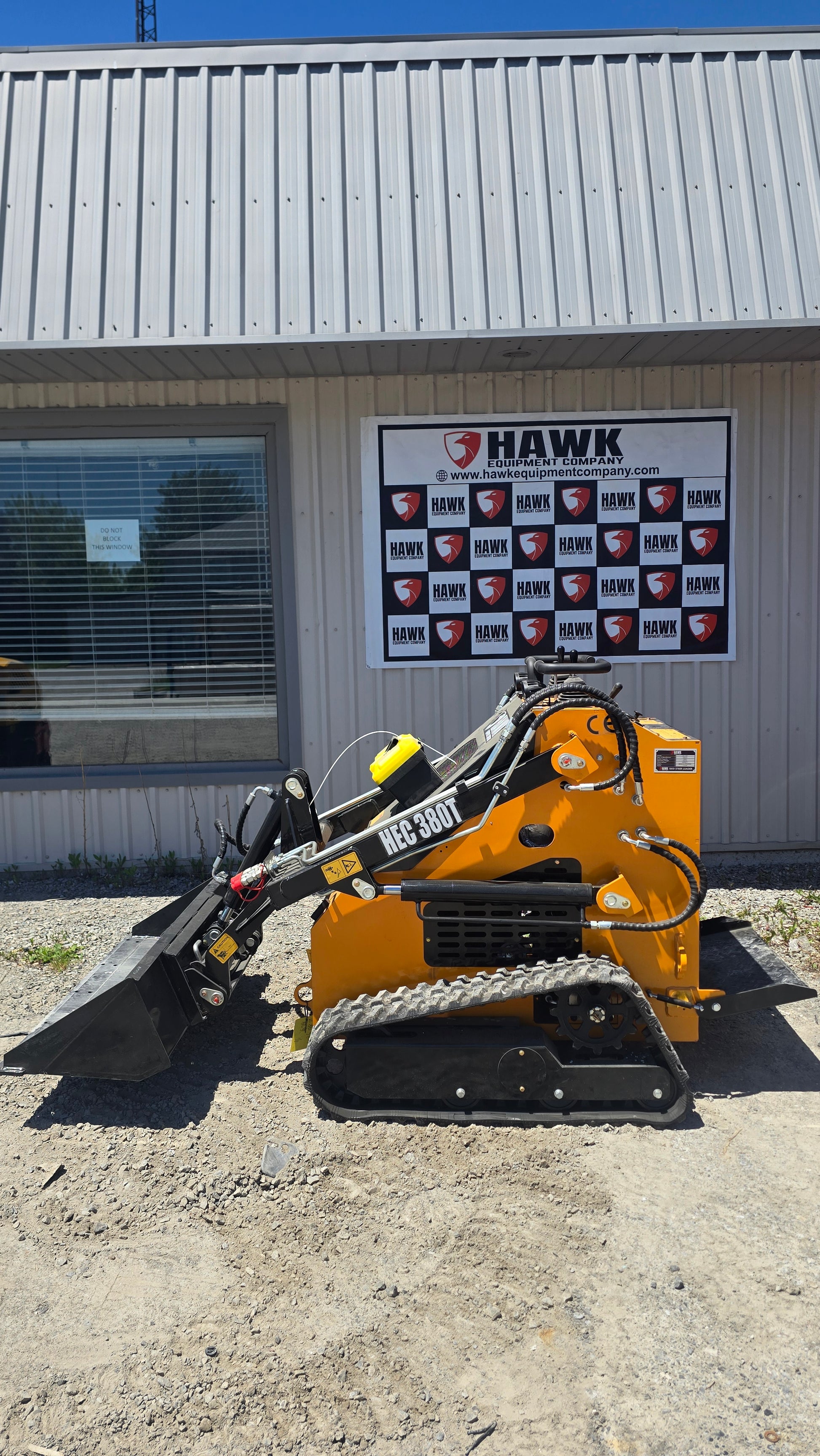

Tackle tight spaces with ease using HAWK Equipment’s Mini Skid Steer — Designed for efficiency, durability, and smooth operation, this compact skid steer loader is engineered to handle demanding tasks in construction, landscaping, agriculture, and material handling. With a reliable Briggs & Stratton engine, a responsive hydraulic system, and a compact footprint, it delivers impressive lifting power and maneuverability—without compromising stability or control.

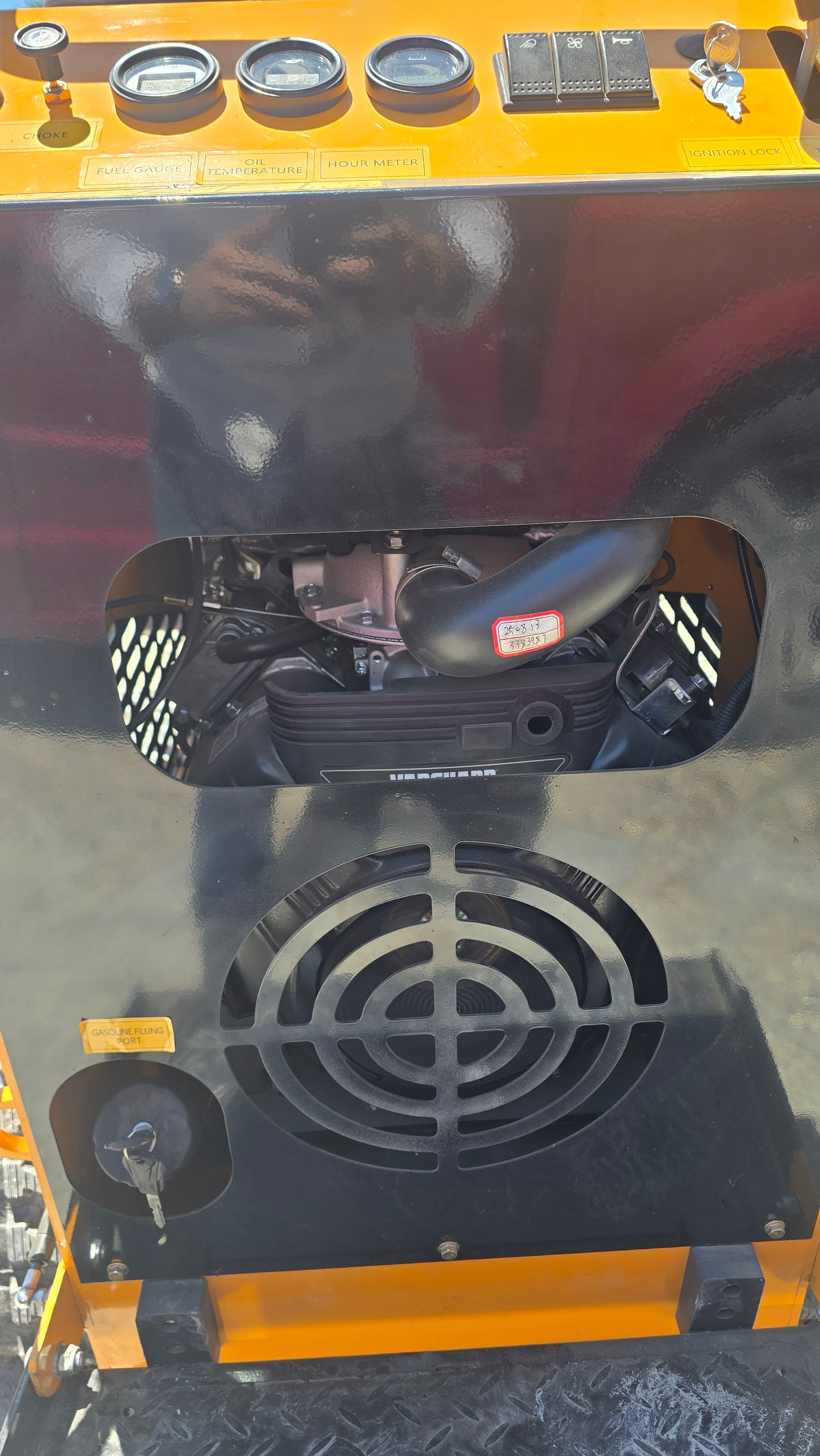

Engine & Powertrain

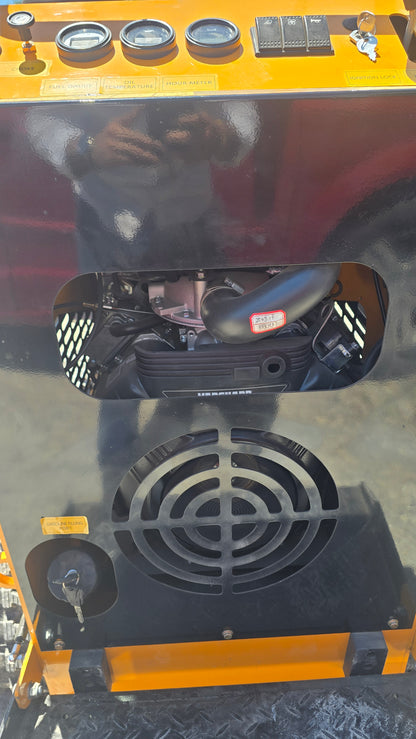

Engine Brand: Briggs & Stratton (B&S)
Rated Power: 10 kW (23 HP)
Operating Speed: 3600 RPM
Noise Level: Less than 95 dB
Efficient power delivery ensures reliable performance with reduced noise for operator comfort.

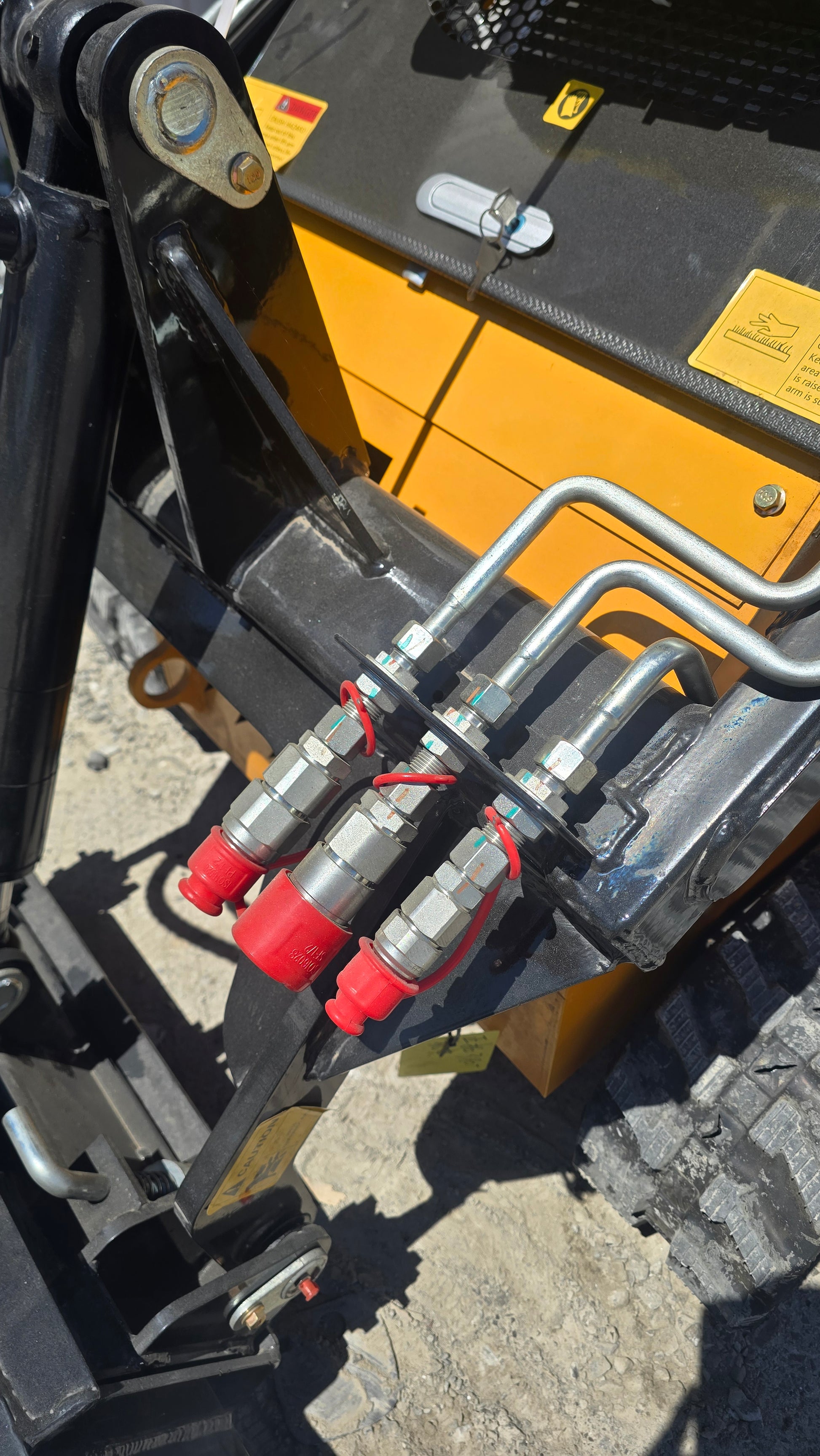

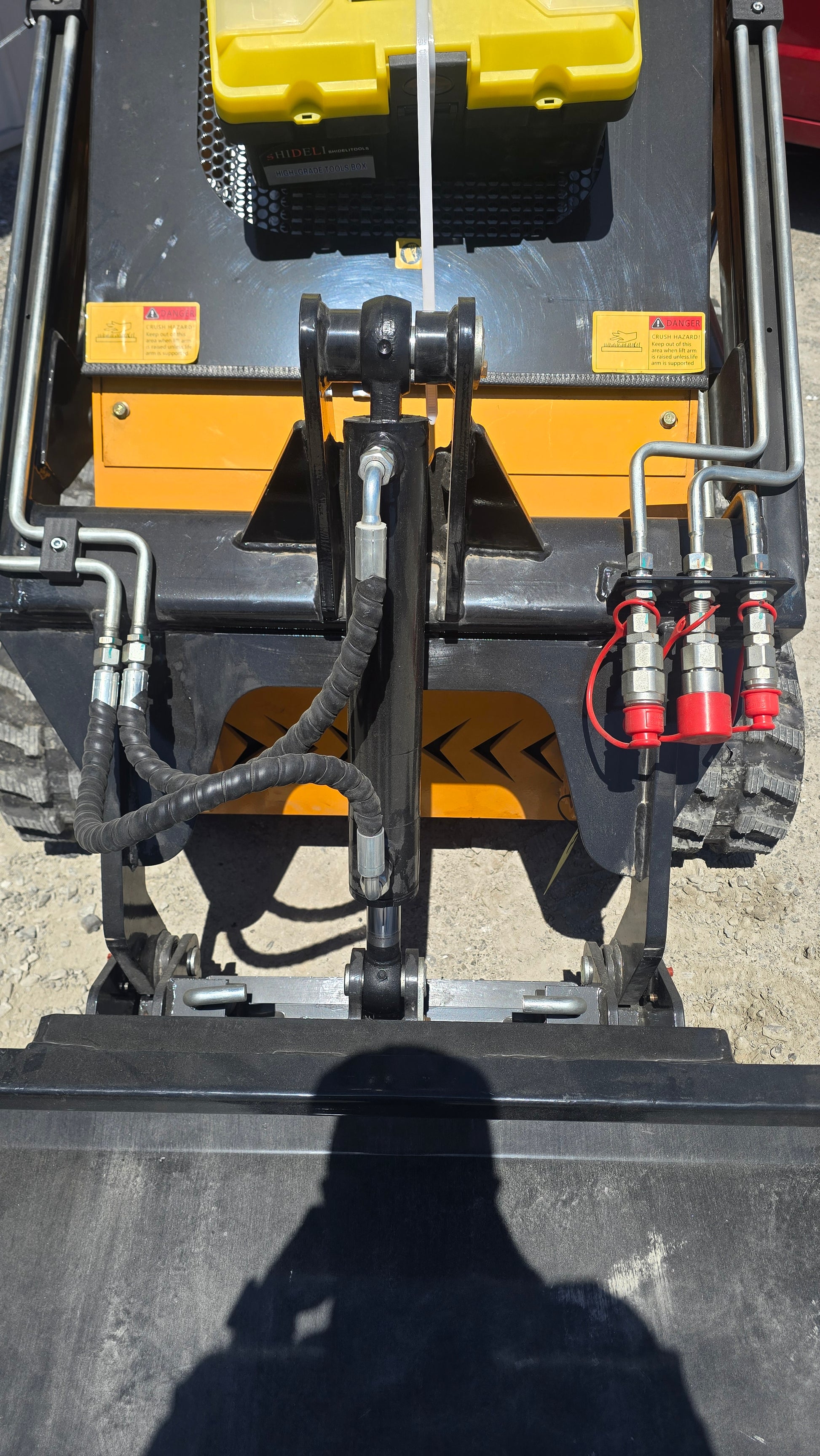

Hydraulic System Performance
Hydraulic Pressure: 17 MPa
Lift Time (Raise): 4 seconds
Dump Time: 1.3 seconds
Lowering Time: 3.2 seconds
Fast, responsive hydraulics provide smooth and precise control for loading, dumping, and lifting operations.
Load Capacity & Operating Performance
Rated Operating Load: 573.2 lbs
Maximum Lifting Force: 661.39 lbs
Bucket Capacity: 3 cubic feet
Travel Speed: 3.73 mph
Operating Weight: 1,410 lbs
Optimized for stability and productivity, this loader offers strong lifting capability while remaining compact and easy to maneuver.

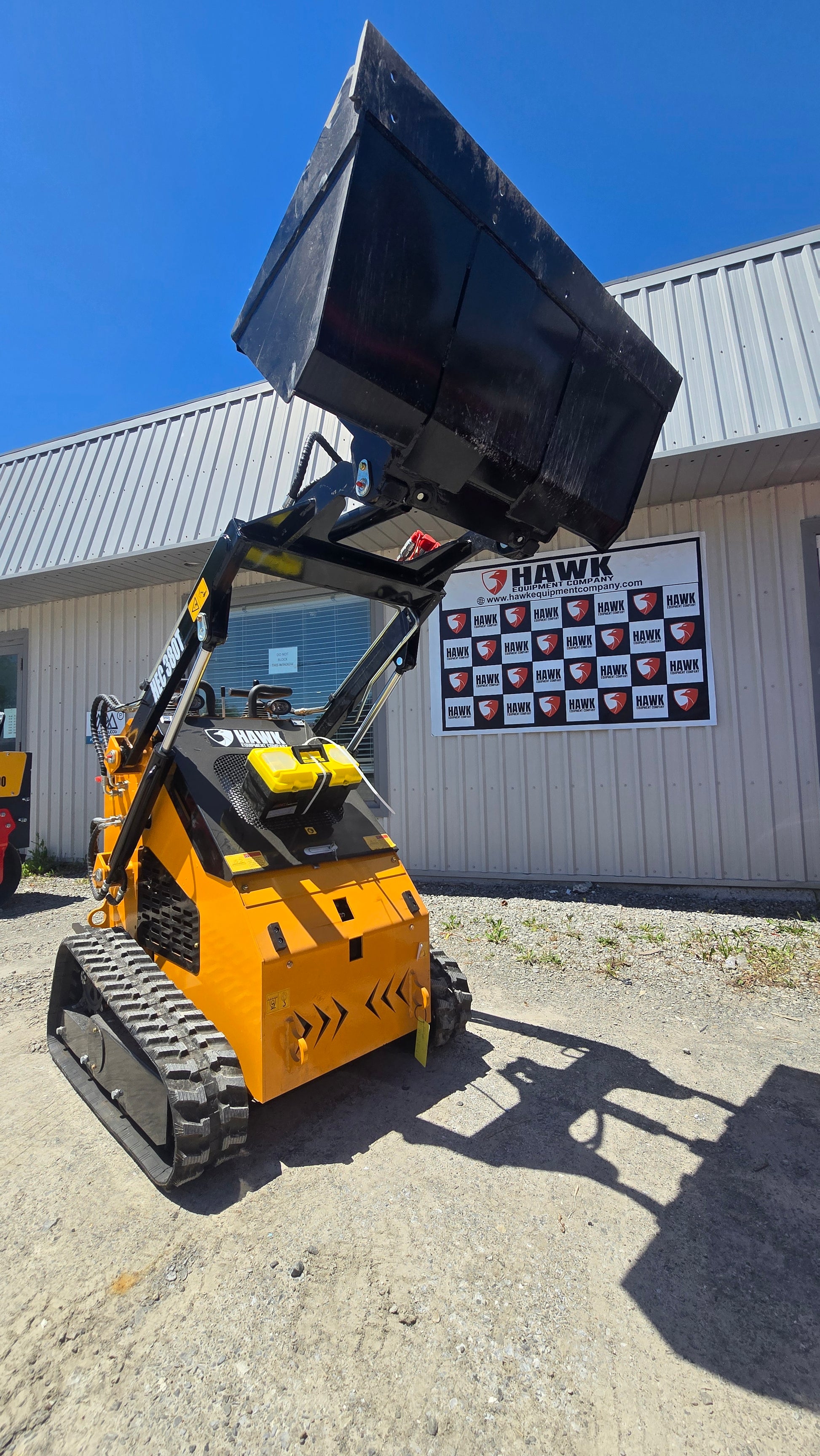

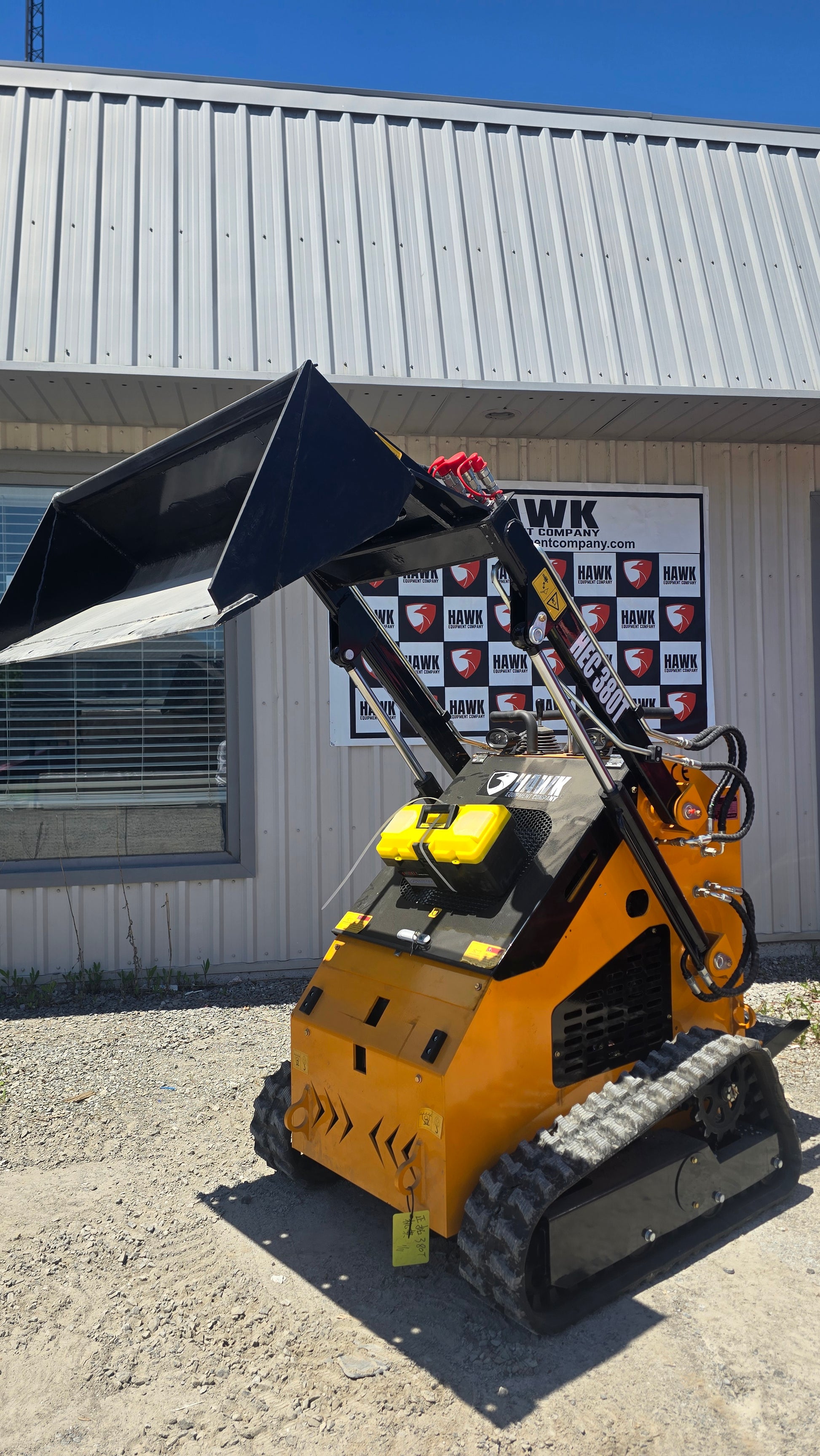

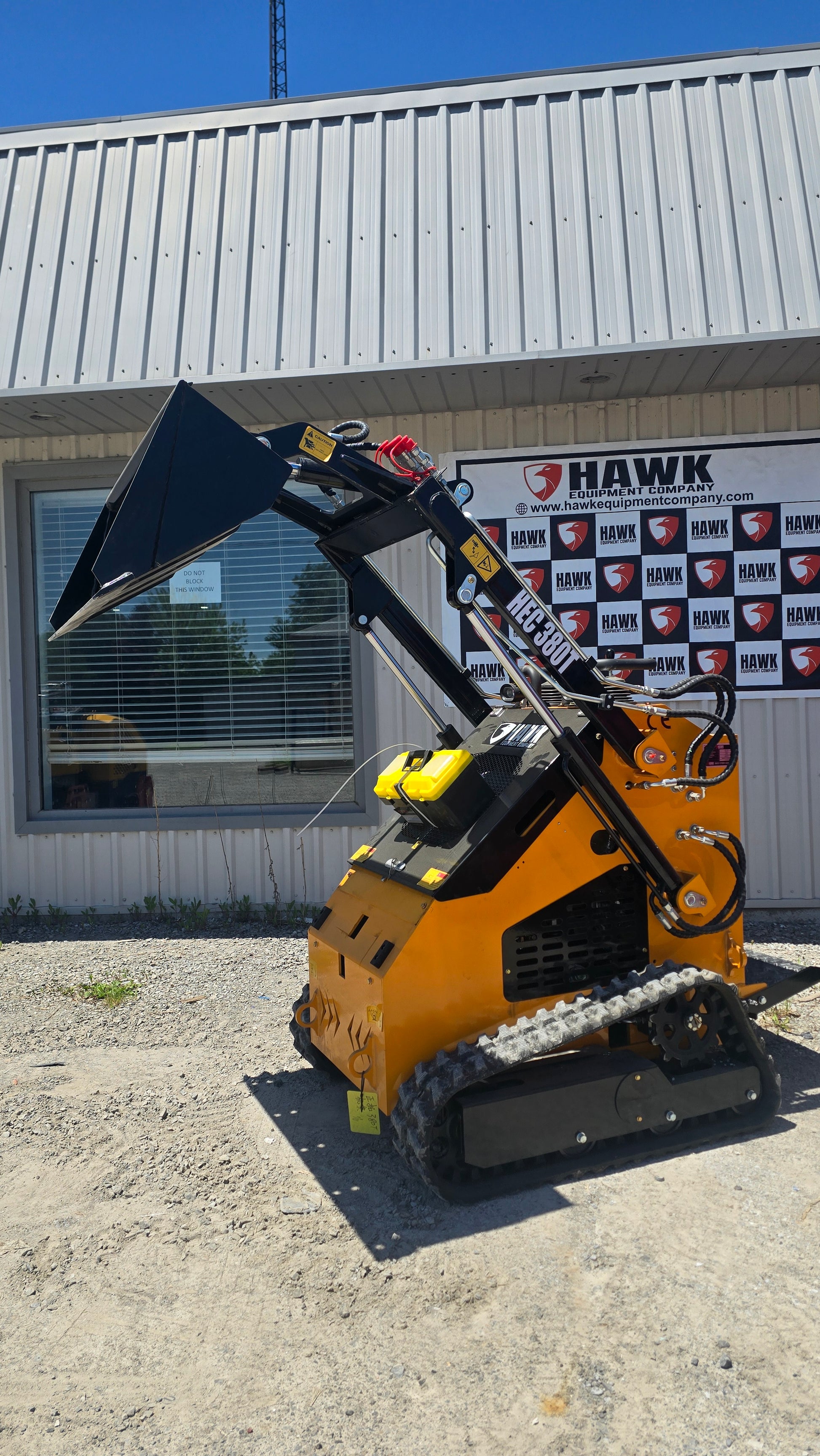

Dimensions & Working Range
Maximum Working Height (H3): 98.58 inches
Maximum Pin Height (H2): 76.81 inches
Maximum Dumping Height (H1): 56.02 inches
Dumping Distance (E): 3.94 inches
Maximum Dumping Angle (a3): 53°
Bucket Rollback on Ground (a2): 32°
Departure Angle (a1): 17°
Designed for efficient material handling with excellent dumping reach and controlled bucket movement.
Overall Dimensions & Maneuverability
Total Height: 47.64 inches
Ground Clearance: 5.26 inches
Wheelbase: 25.71 inches
Overall Length (Without Bucket): 61.1 inches
Overall Length (With Bucket): 78.43 inches
Total Width: 41.34 inches
Bucket Width: 42.52 inches
Forward Turning Radius: 47.44 inches
Compact dimensions and a tight turning radius make this machine ideal for confined job sites and precise operations.
