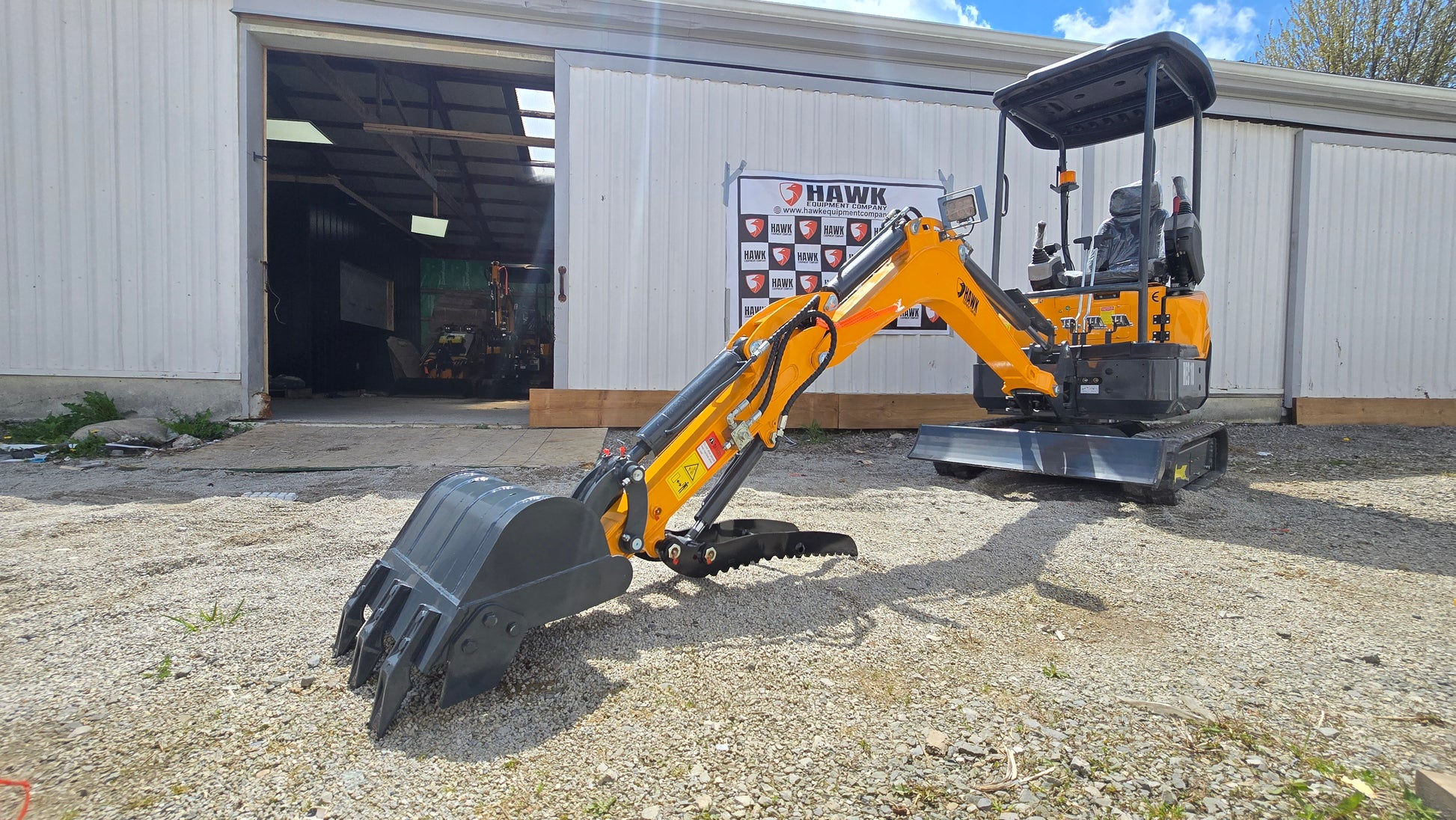

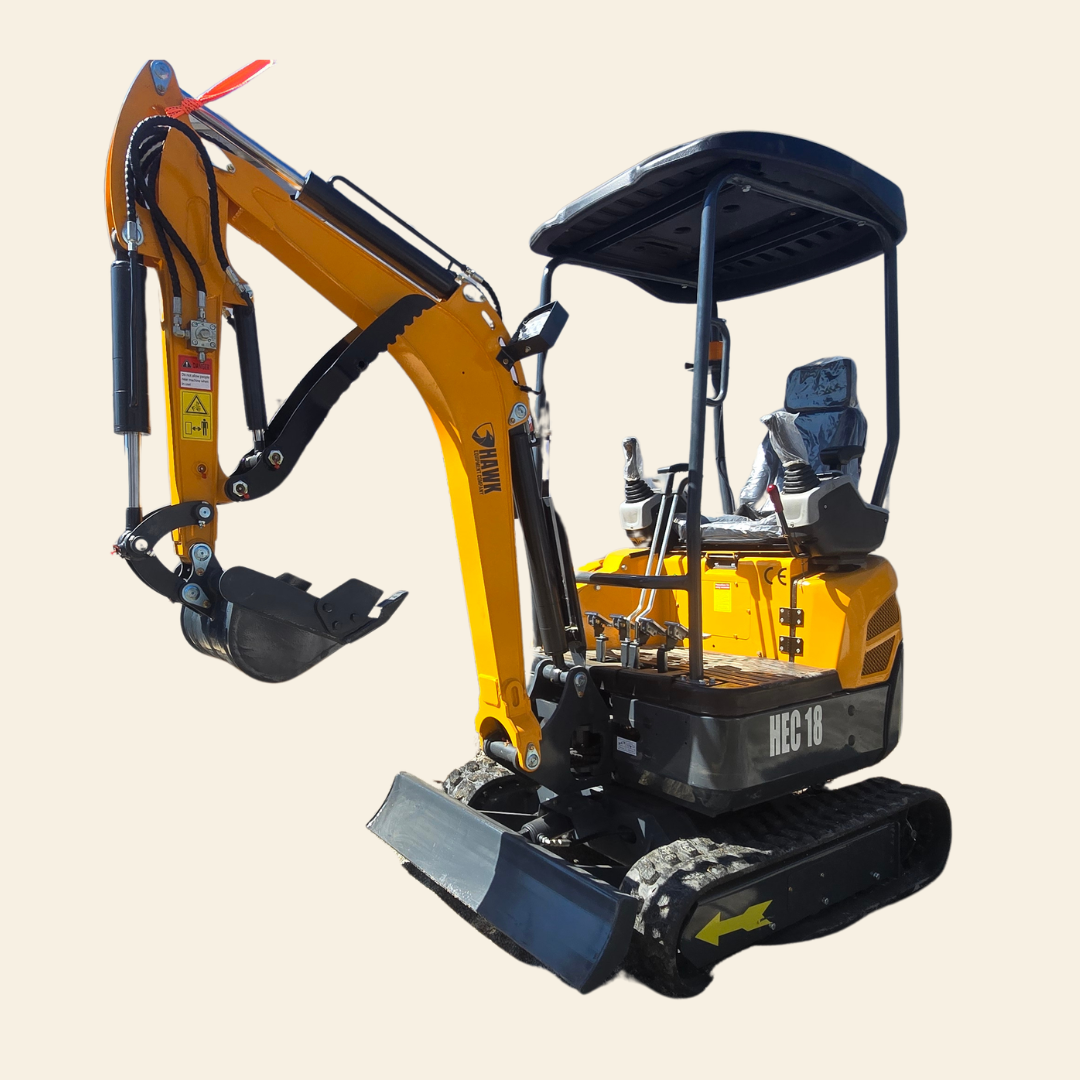

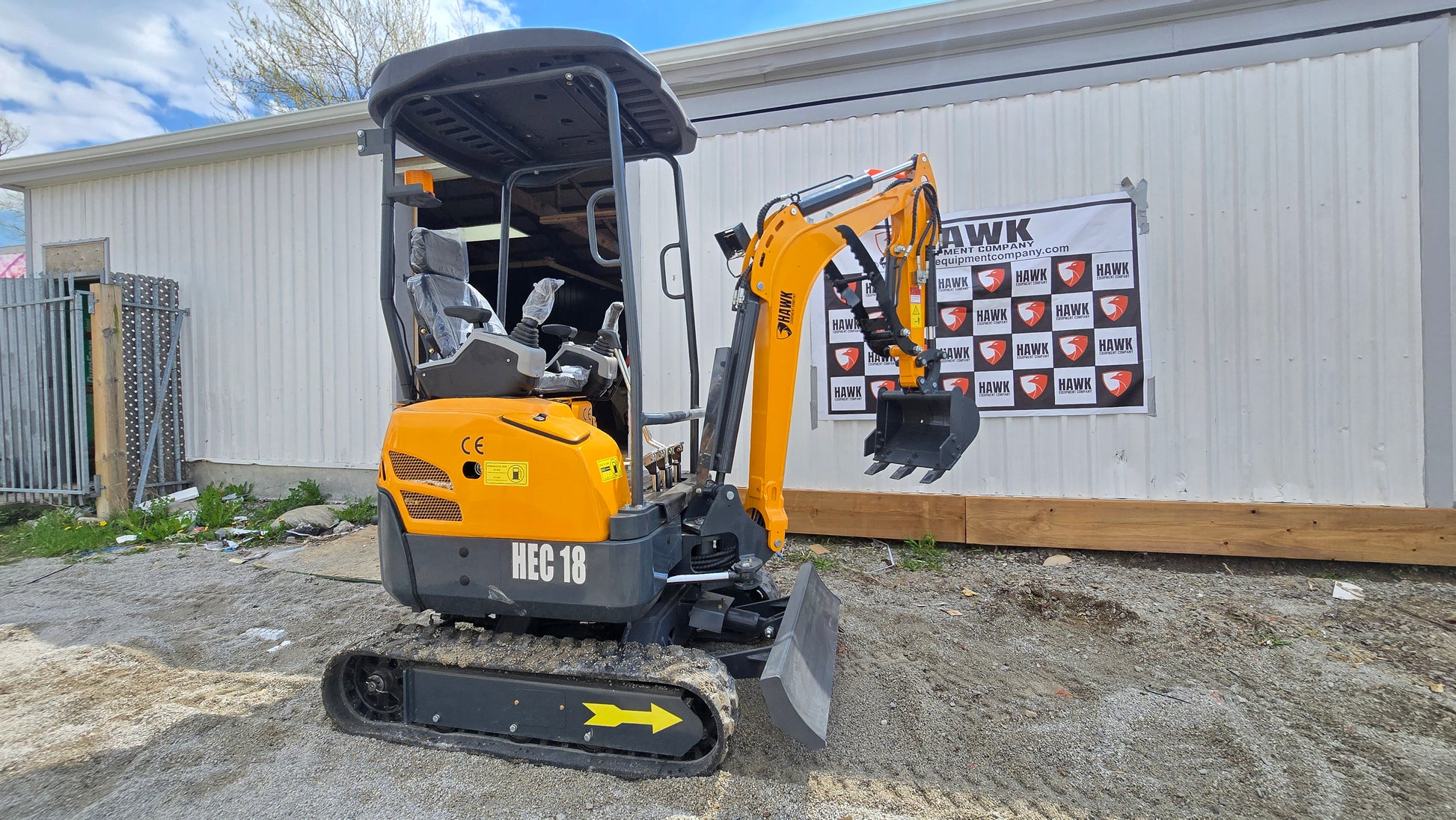

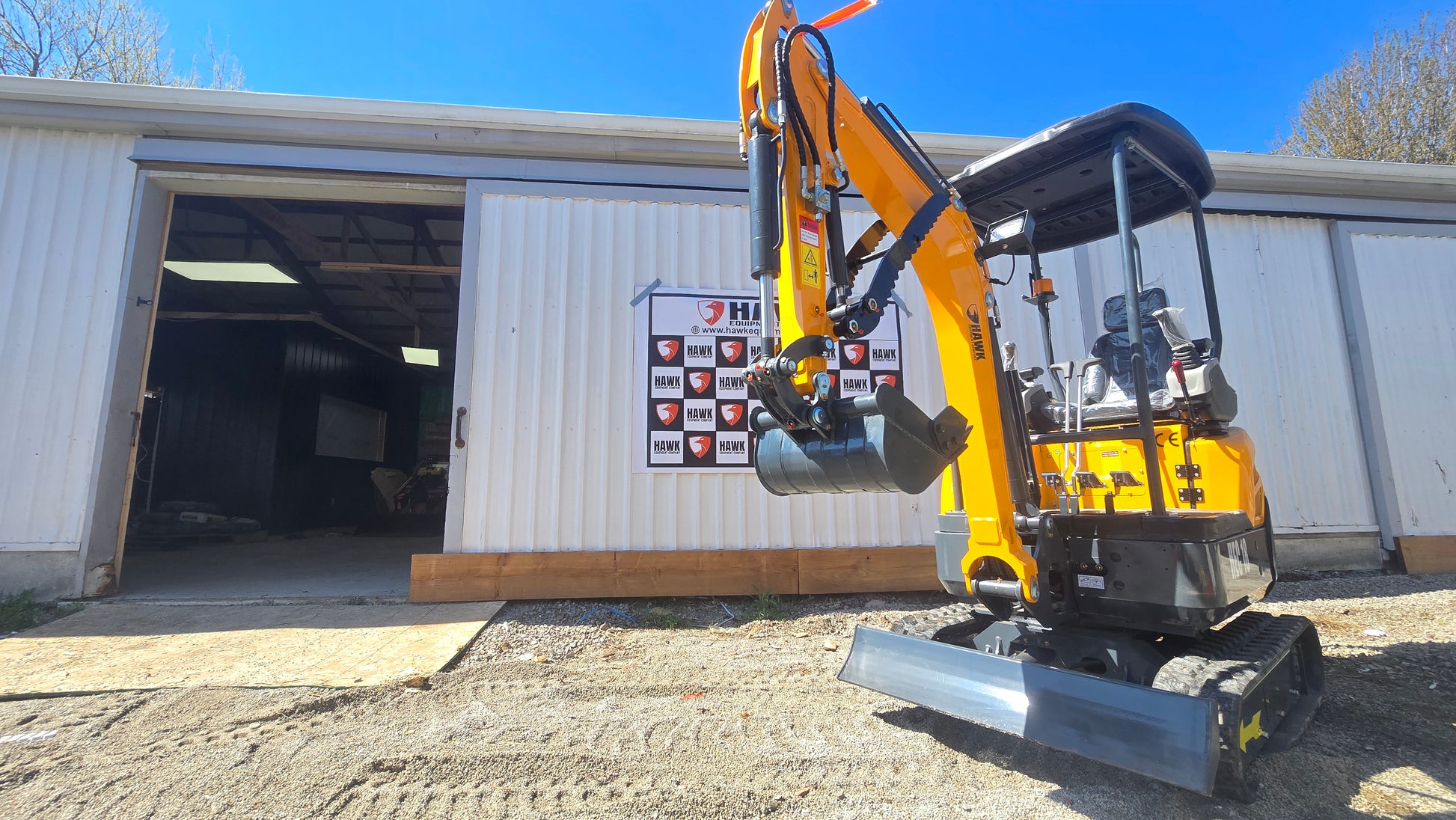

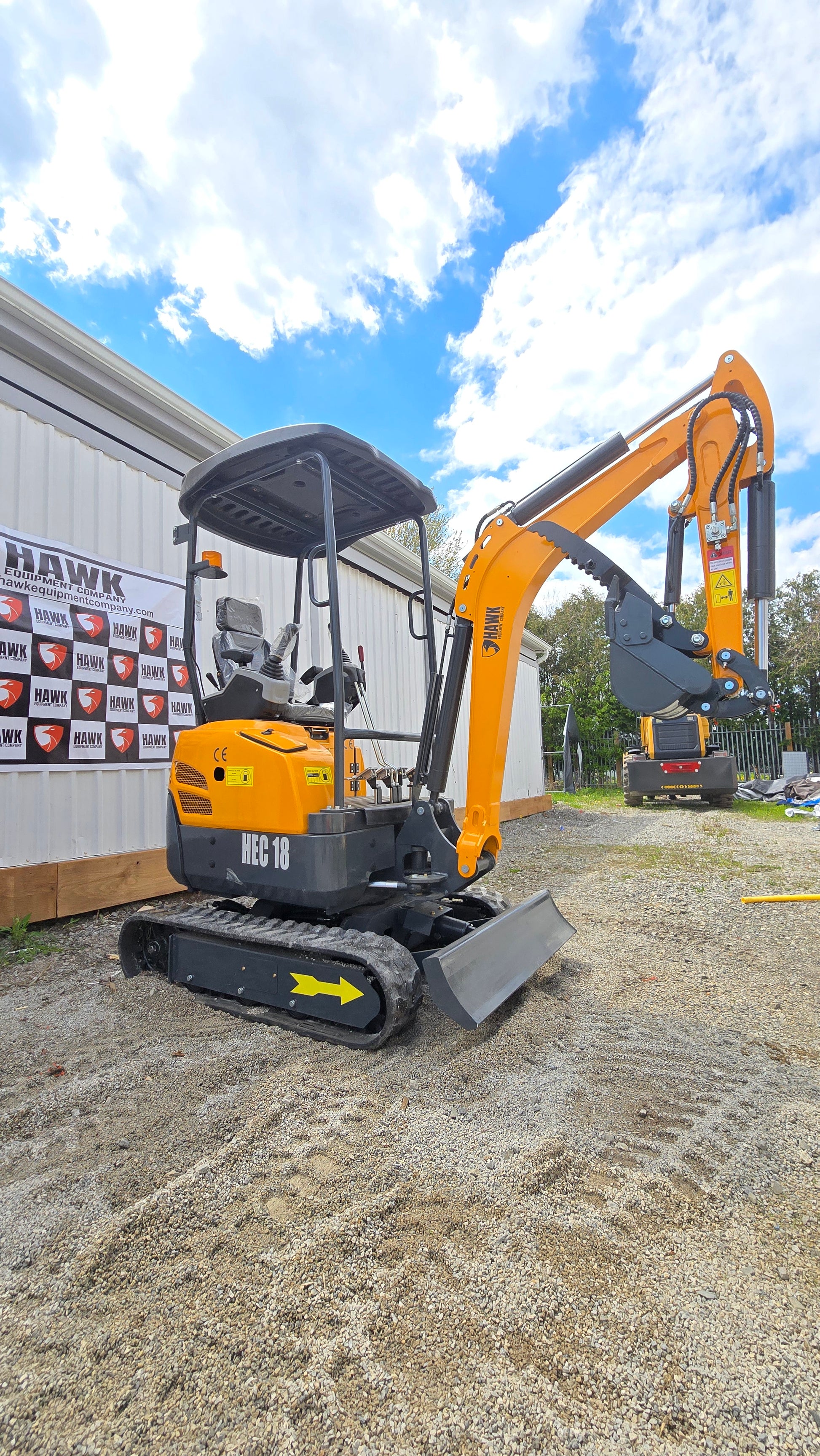

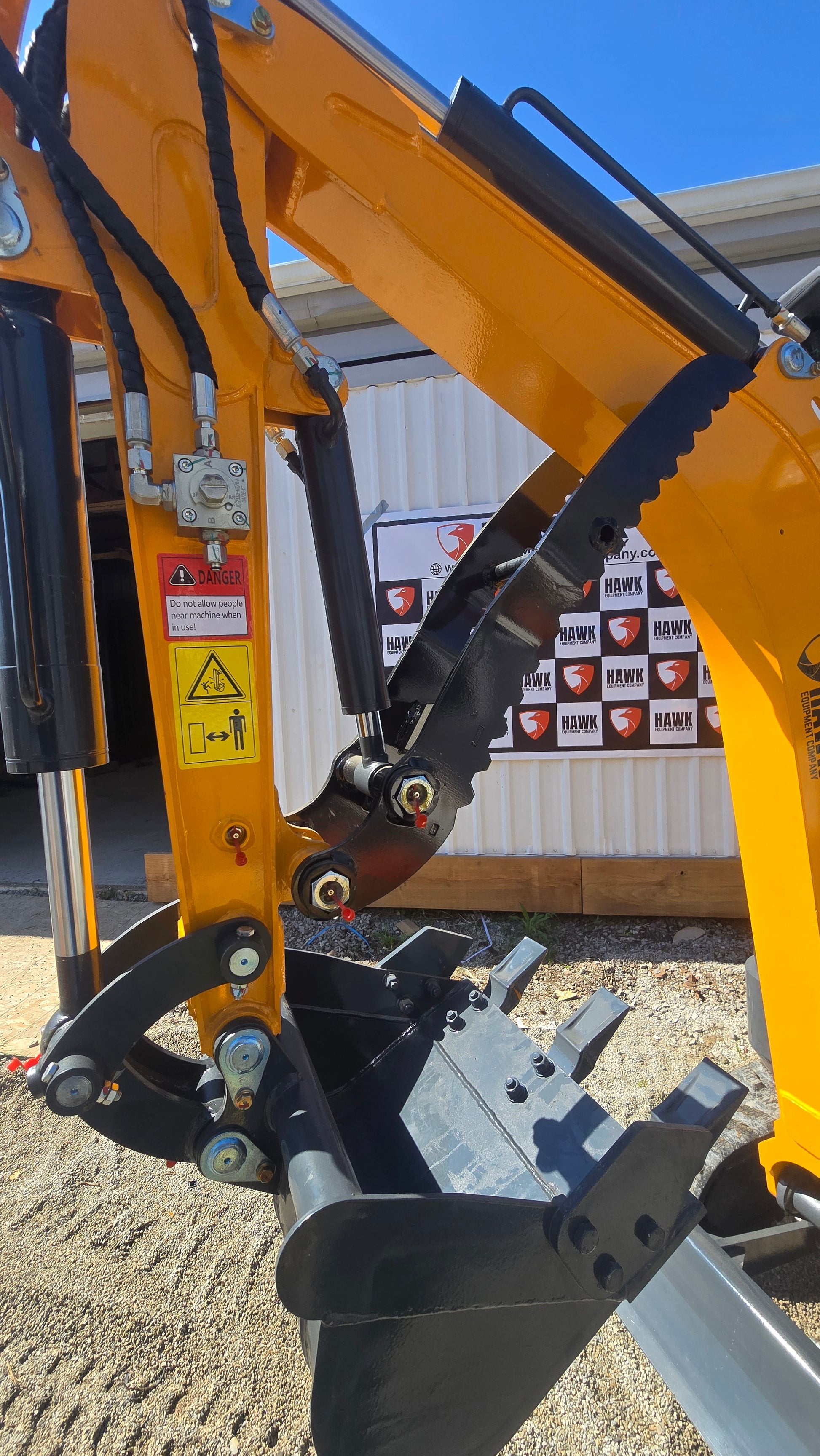

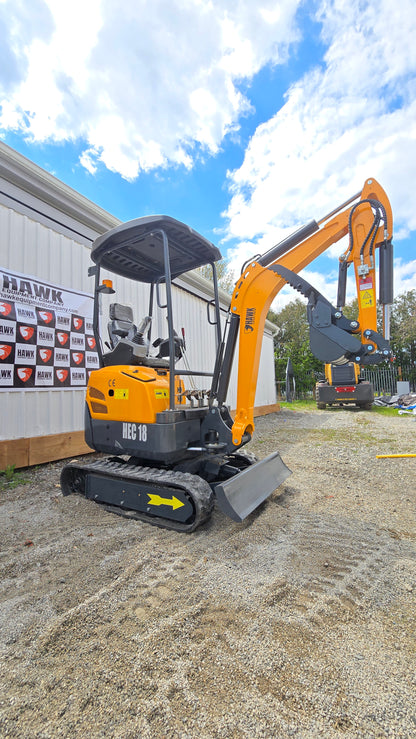

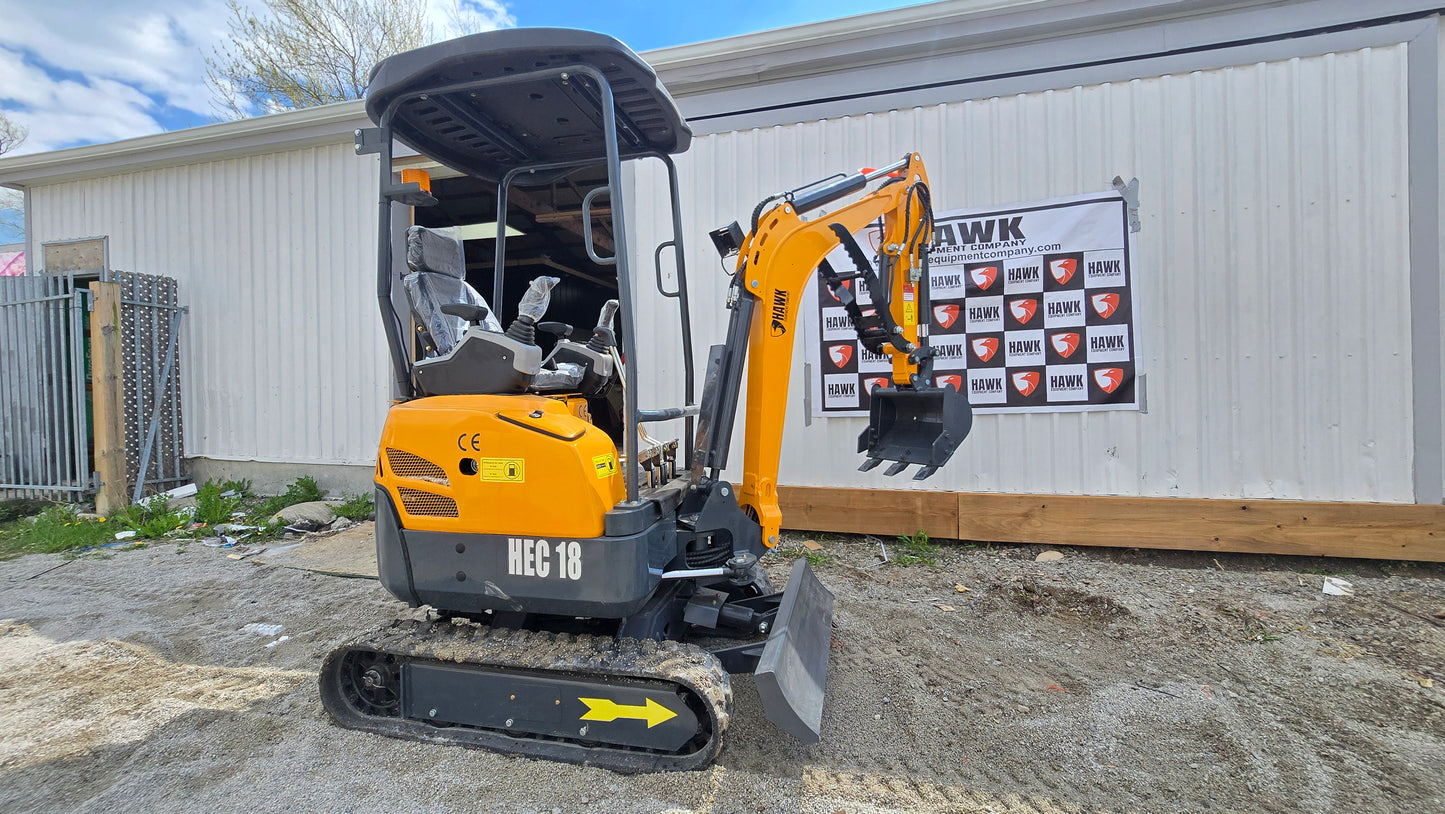

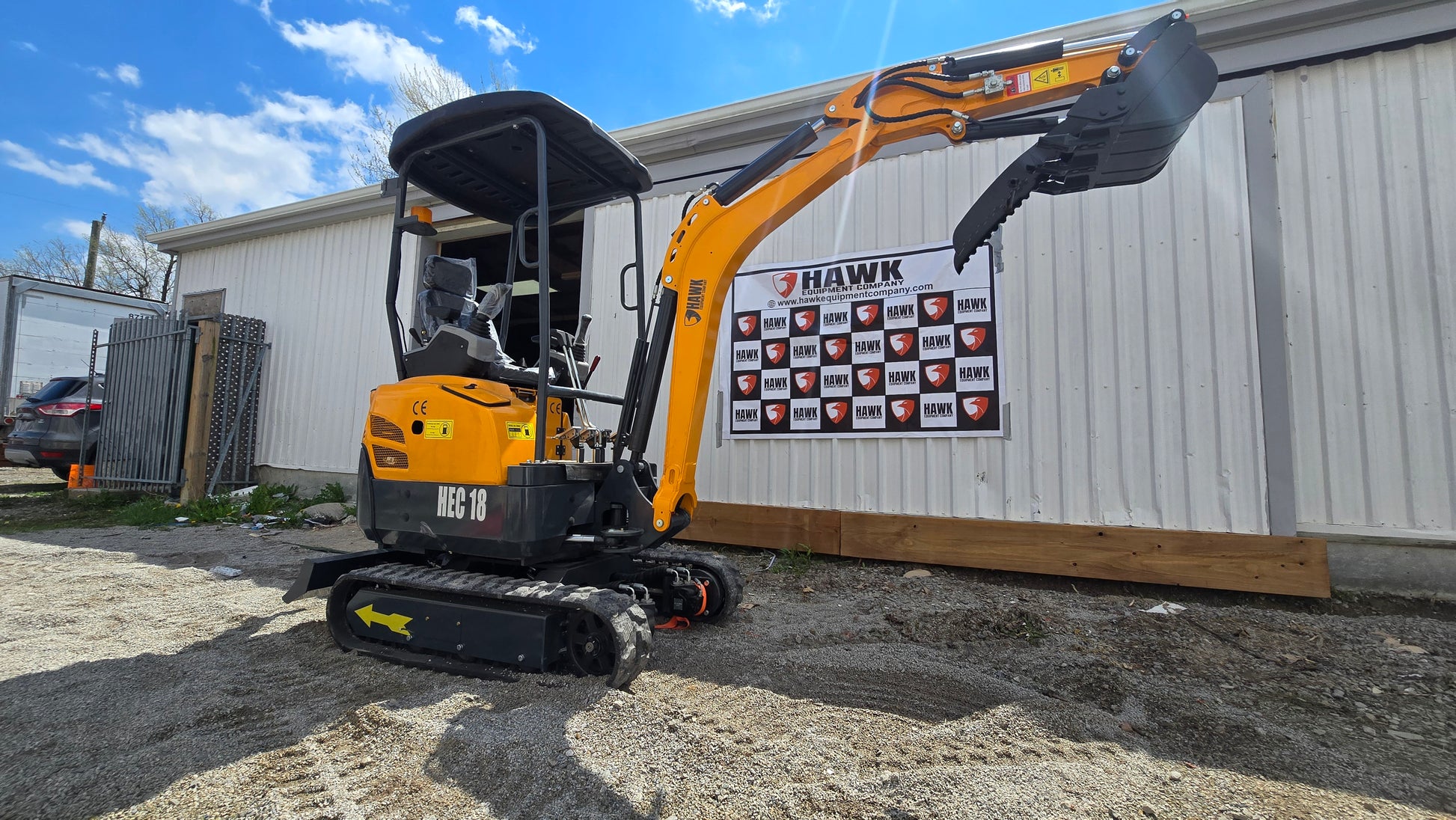

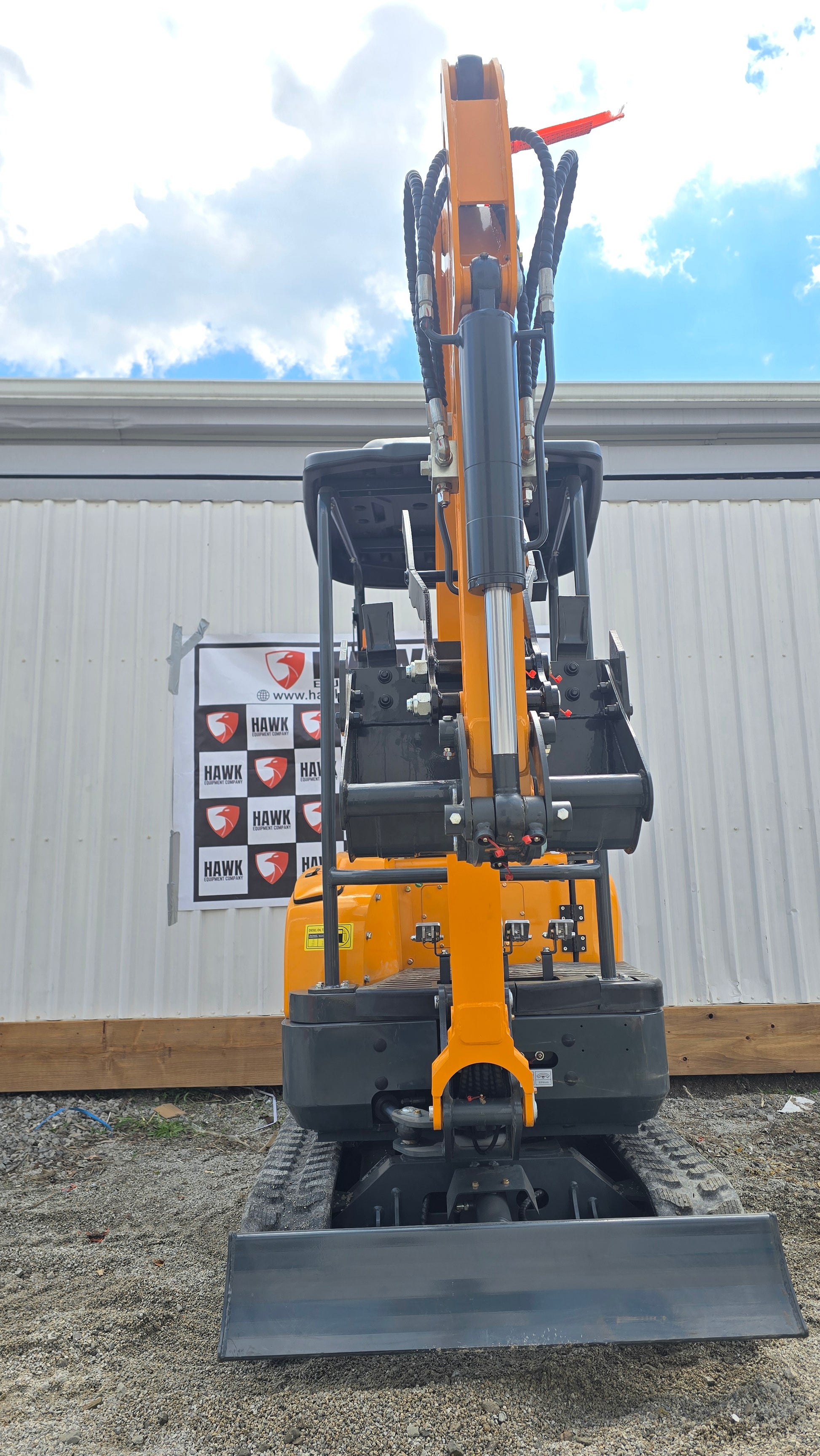

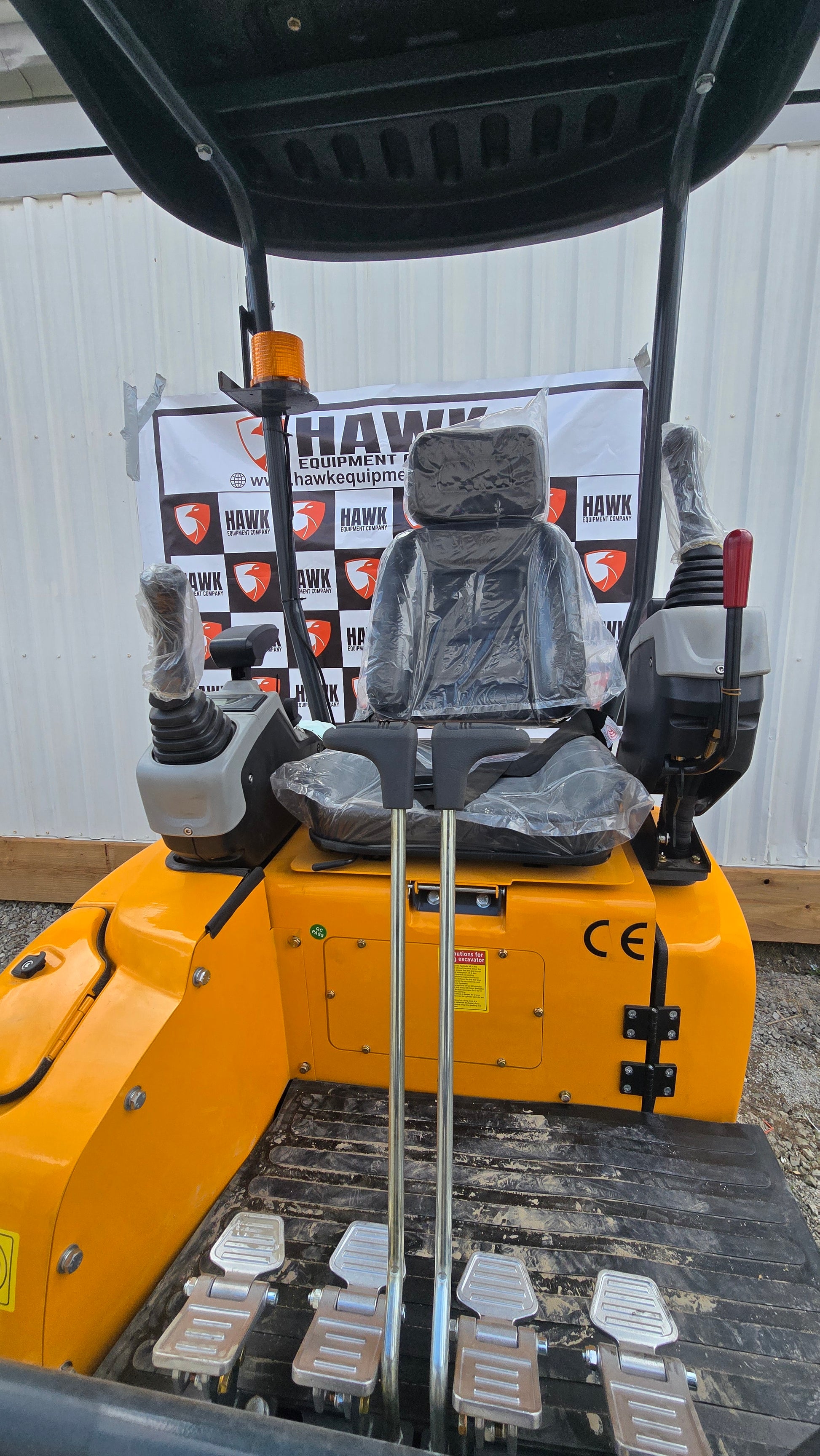

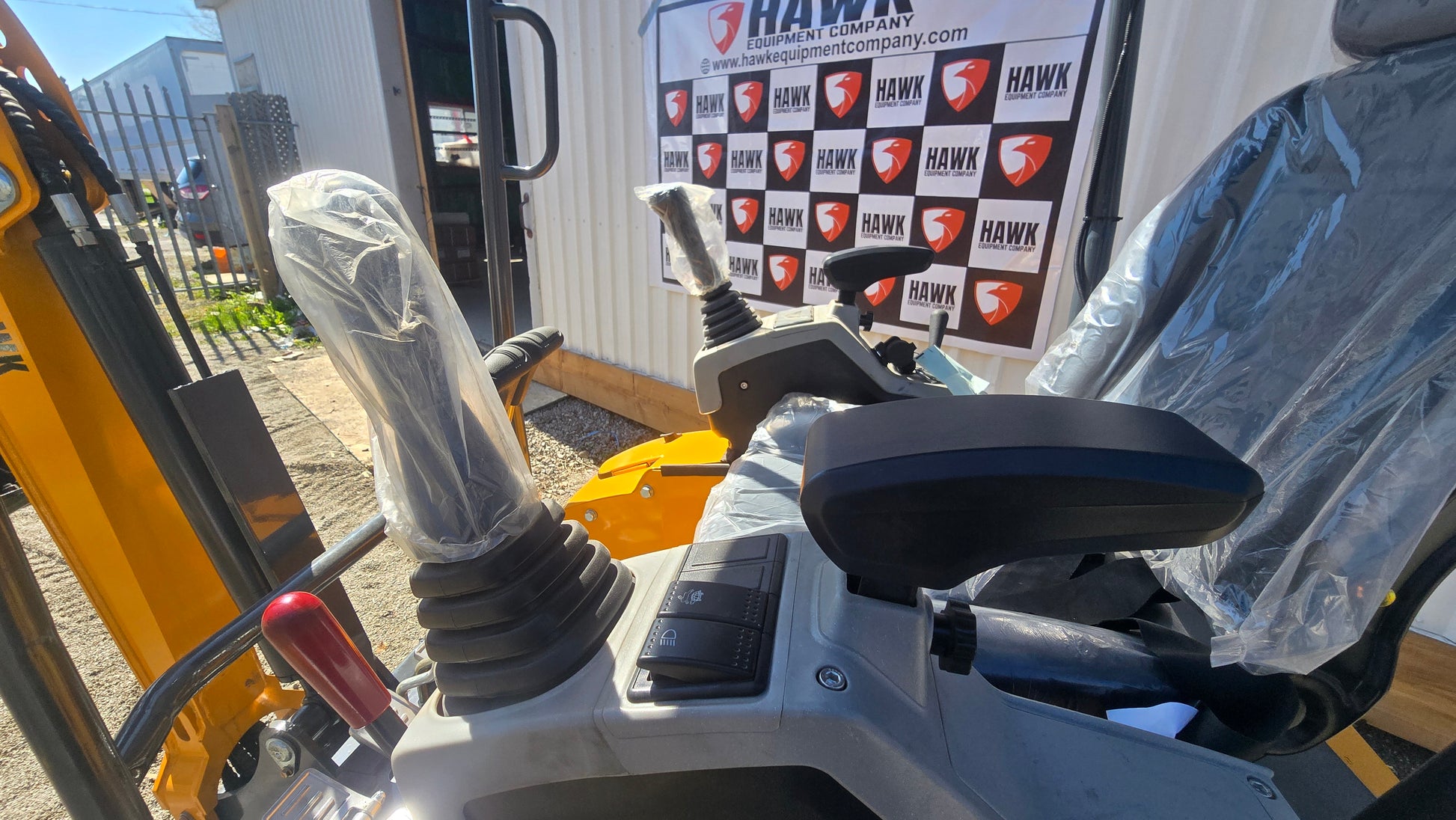

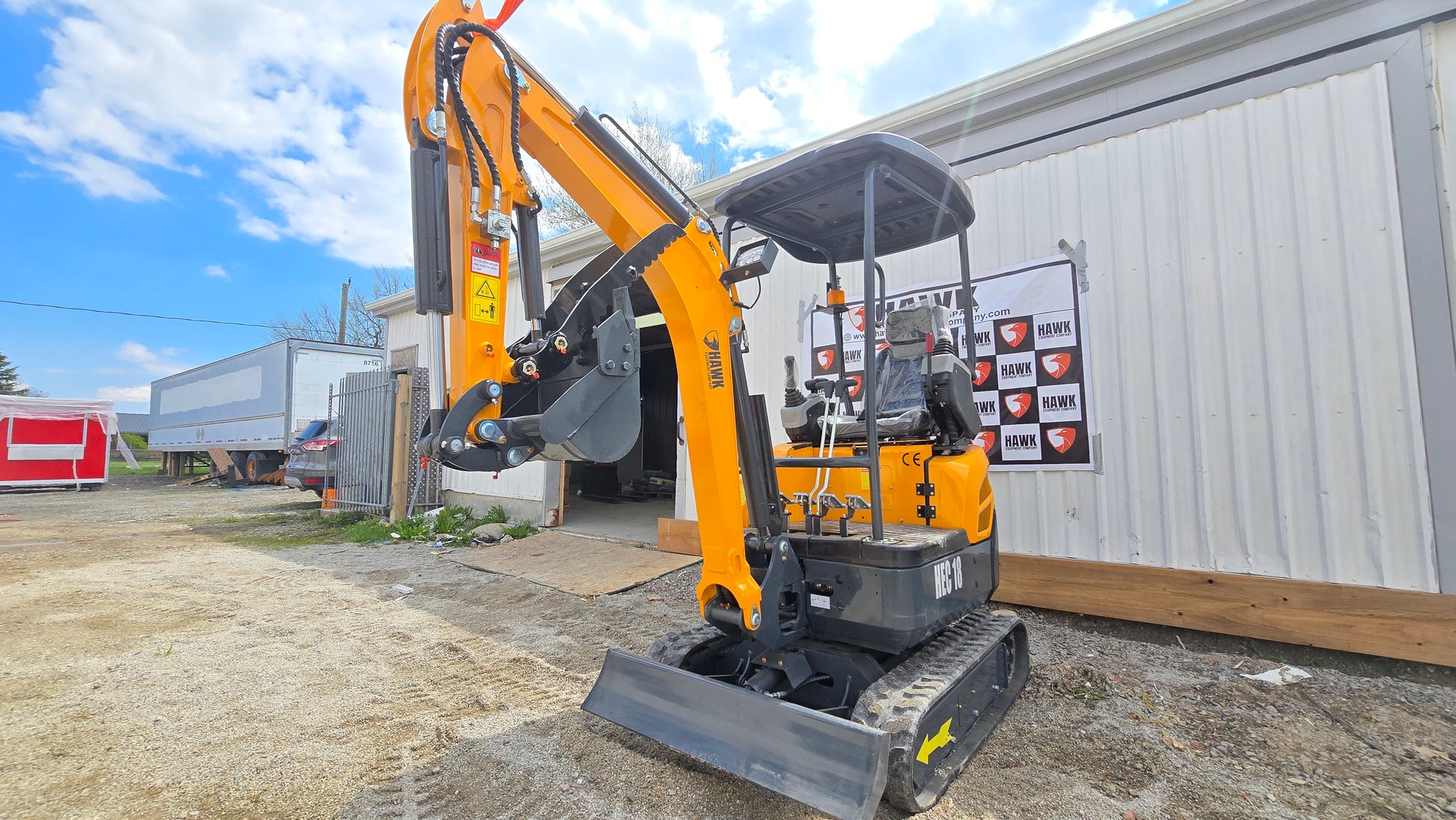

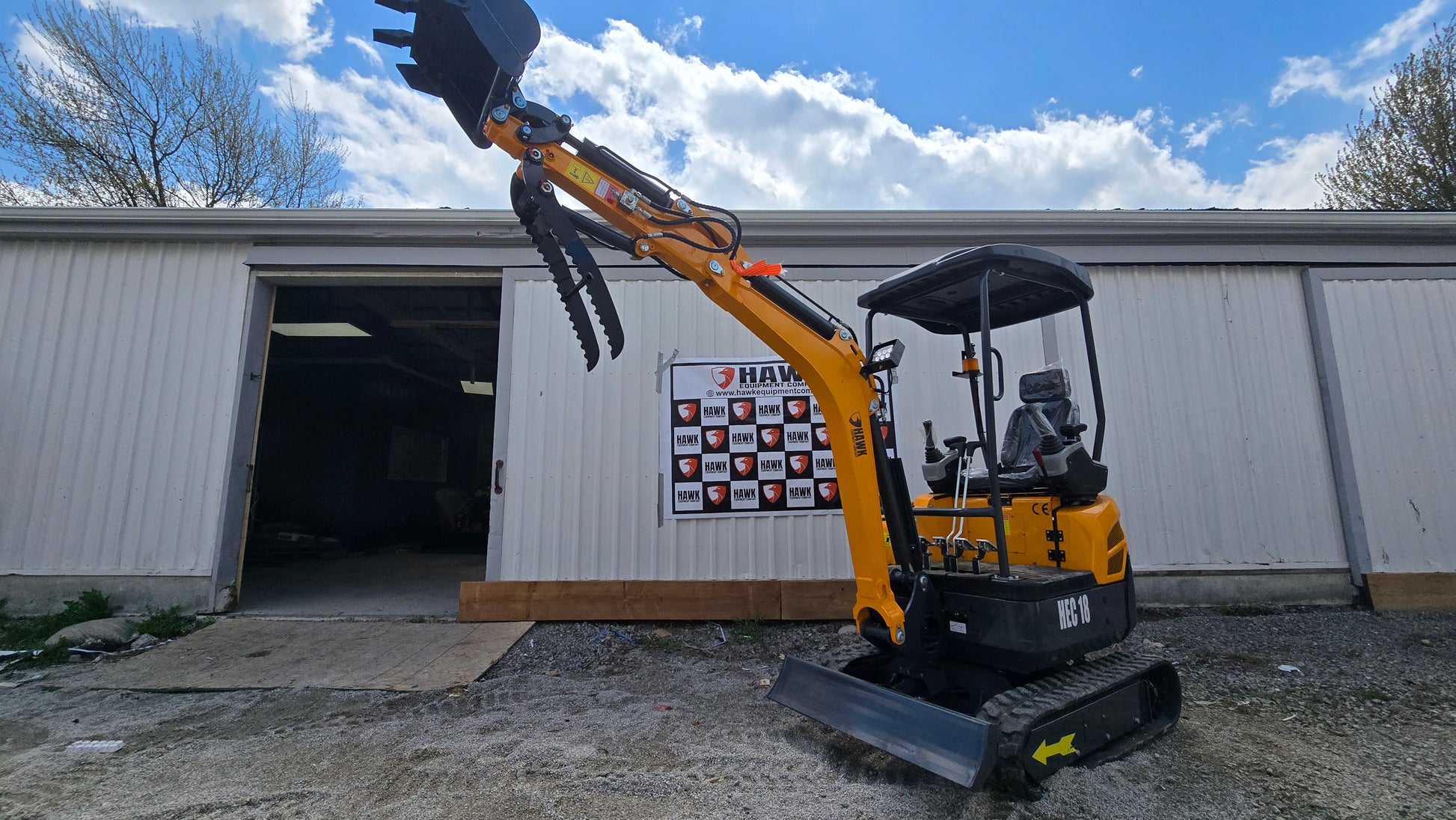

HEC Excavator 1.8 ton hydraulic thumb, swing boom with Kubota engine

Name: HEC Excavator 1.8 ton hydraulic thumb, swing boom with Kubota engine
Brand: Hawk Equipment Company
Price: 15950.00 CAD
Availability: InStock

$15,950.00 CAD

Sale Sold out

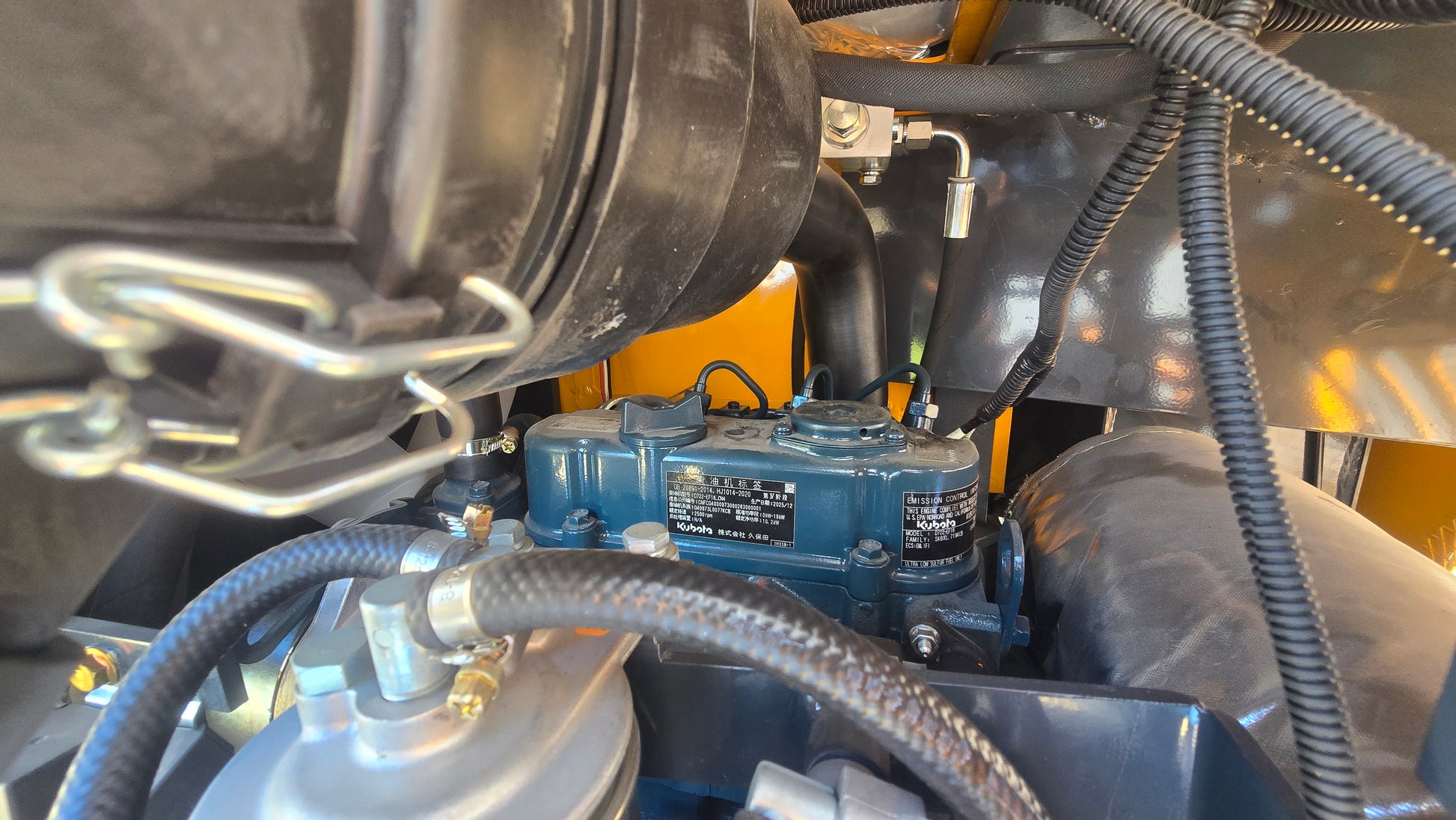

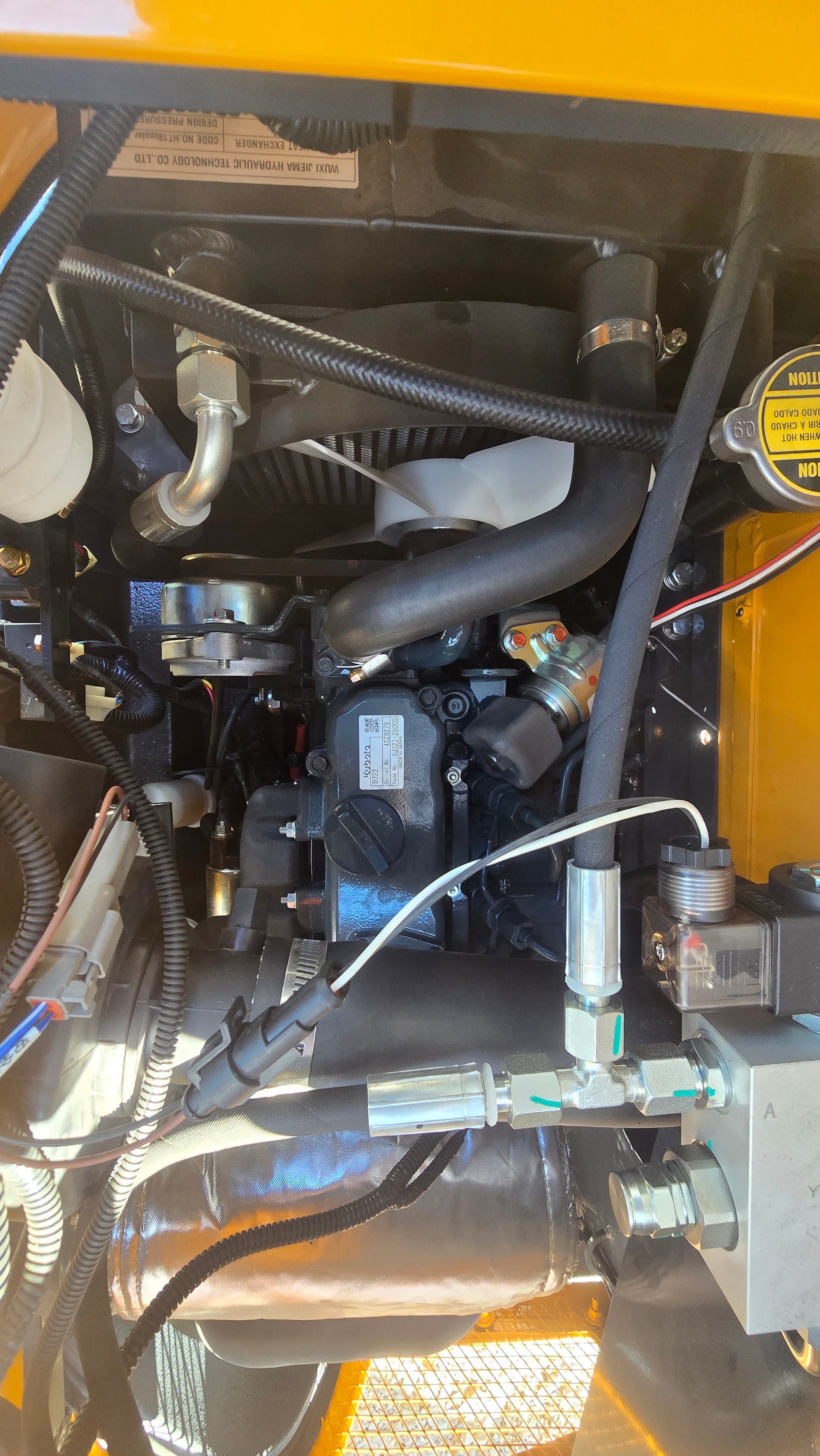

HEC 18 is our best selling excavator powered by an original Kubota engine, this compact mini excavator delivers reliable performance and smooth hydraulic operation for demanding commercial applications. Its compact design allows easy access to tight job sites, while the reinforced body provides enhanced stability and durability.

USER MANUAL: HEC Excavator 1.8 ton

Specs

Working Range

Description	Data
Maximum Digging Height	101.5 in
Maximum Dumping Height	64.4 in
Maximum Digging Depth	81 in
Maximum Reach	124.4 in
Minimum Swing Radius	67.3 in
Maximum Height at Minimum Swing Radius	80.6 in

Description	Data
Overall Length / Shipping Length	170 in / 65 in
Overall Width	43.3 in
Upper Structure Width	39 in
Height to Canopy	89.4 in
Standard Track Shoe Width	7 in
Track Gauge	36 in
Minimum Ground Clearance	4.6 in
Tail Swing Radius	31 in
Track Ground Contact Length	41.3 in
Overall Track Length	60.8 in
