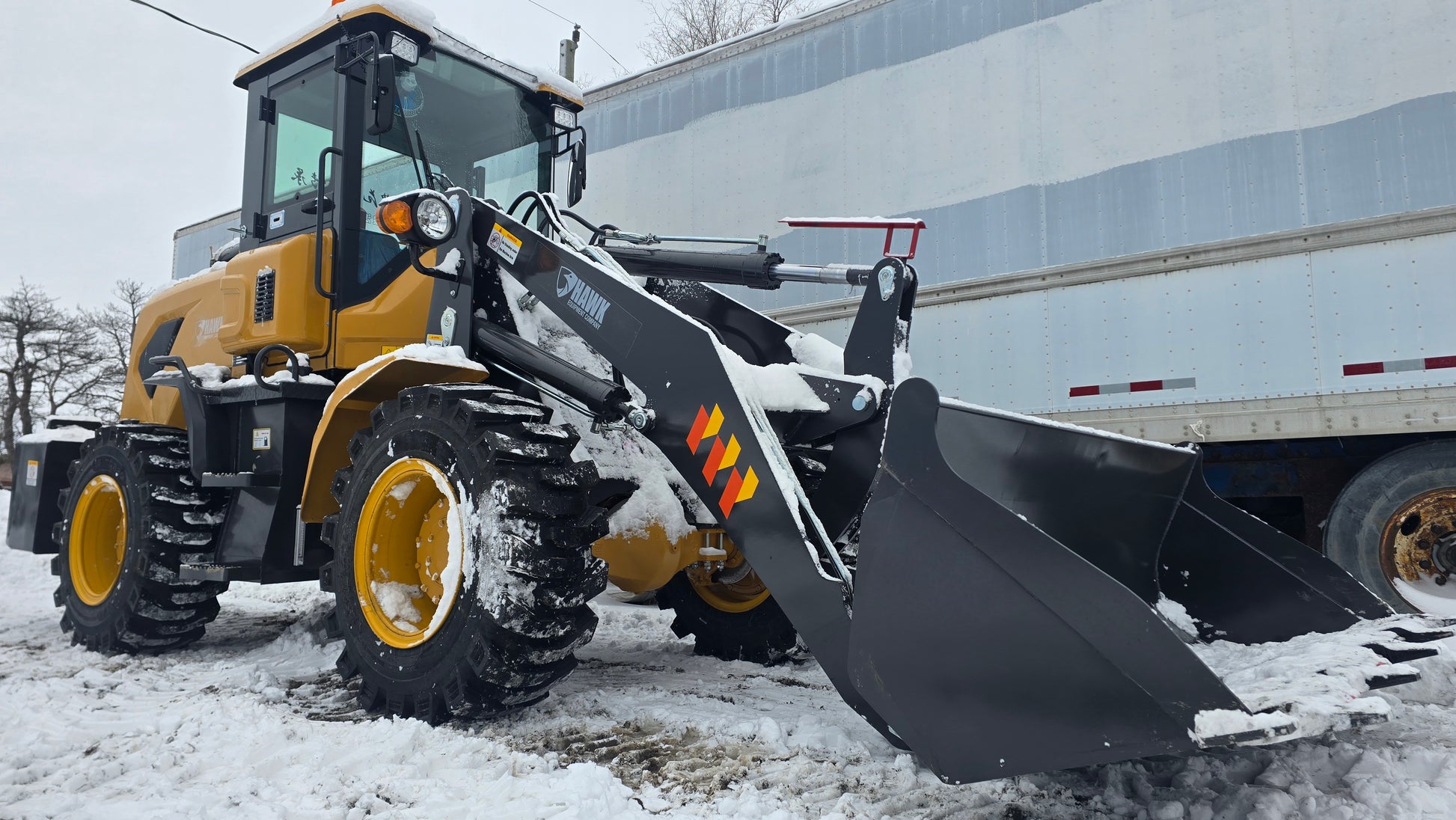

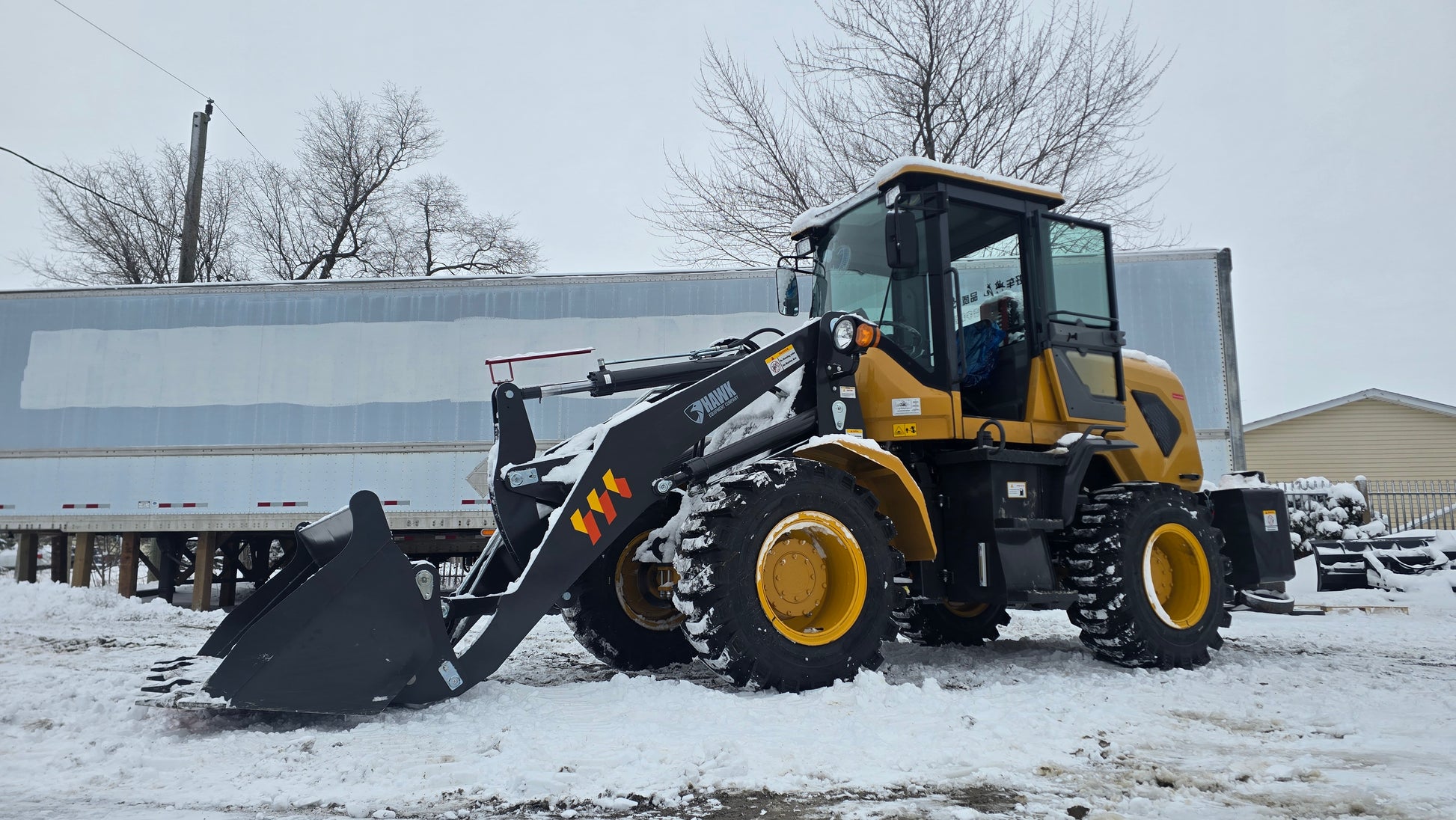

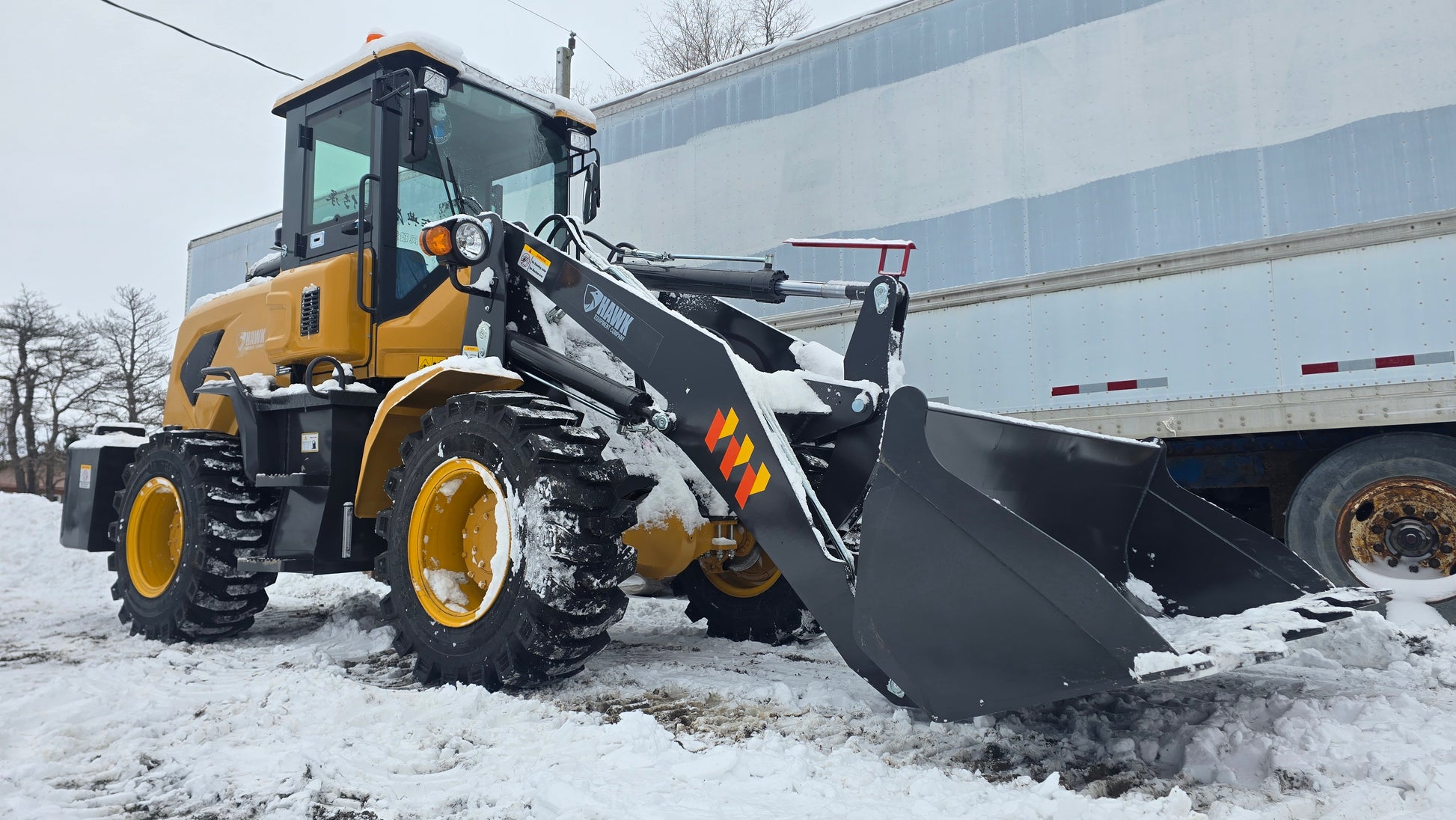

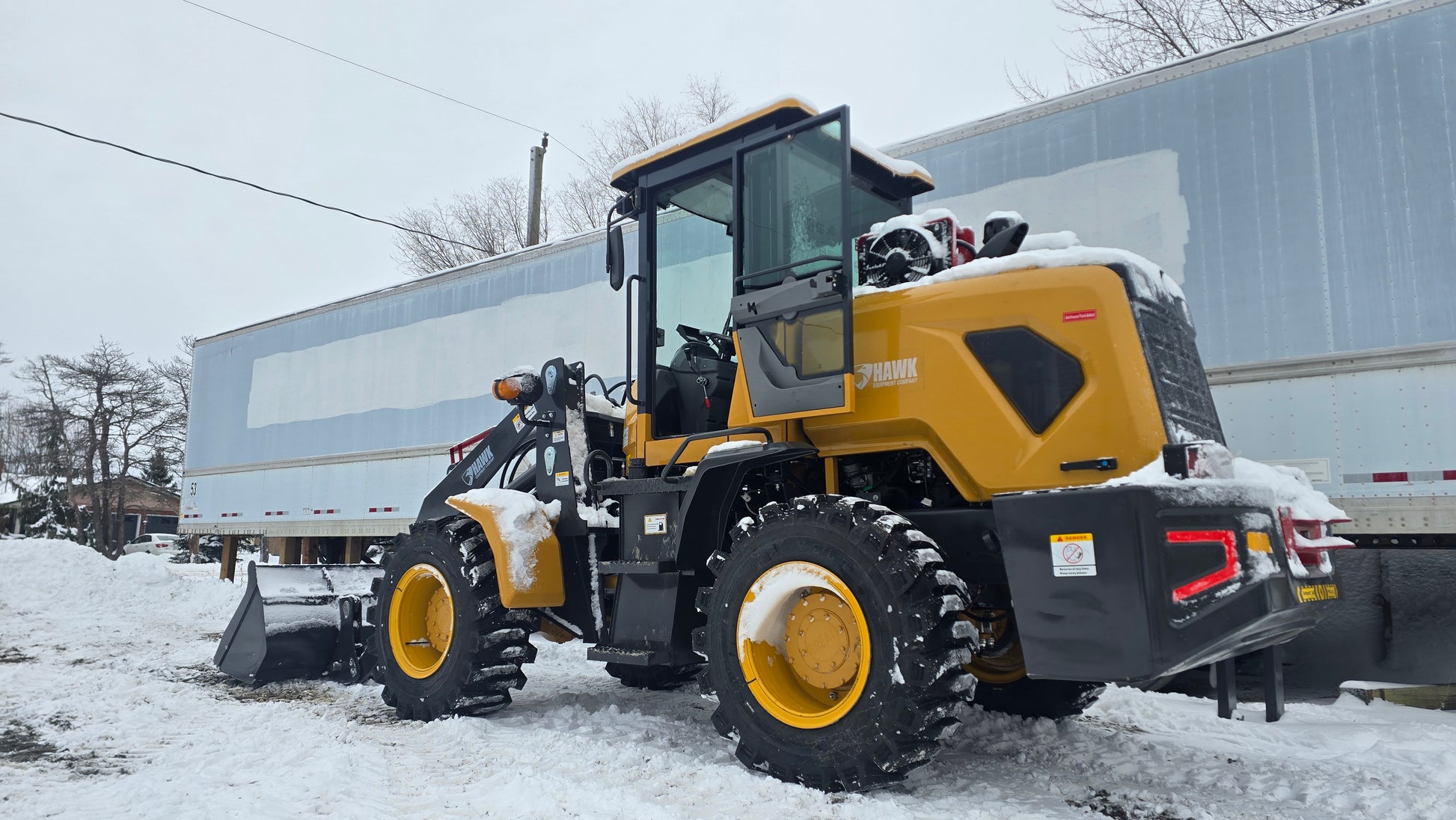

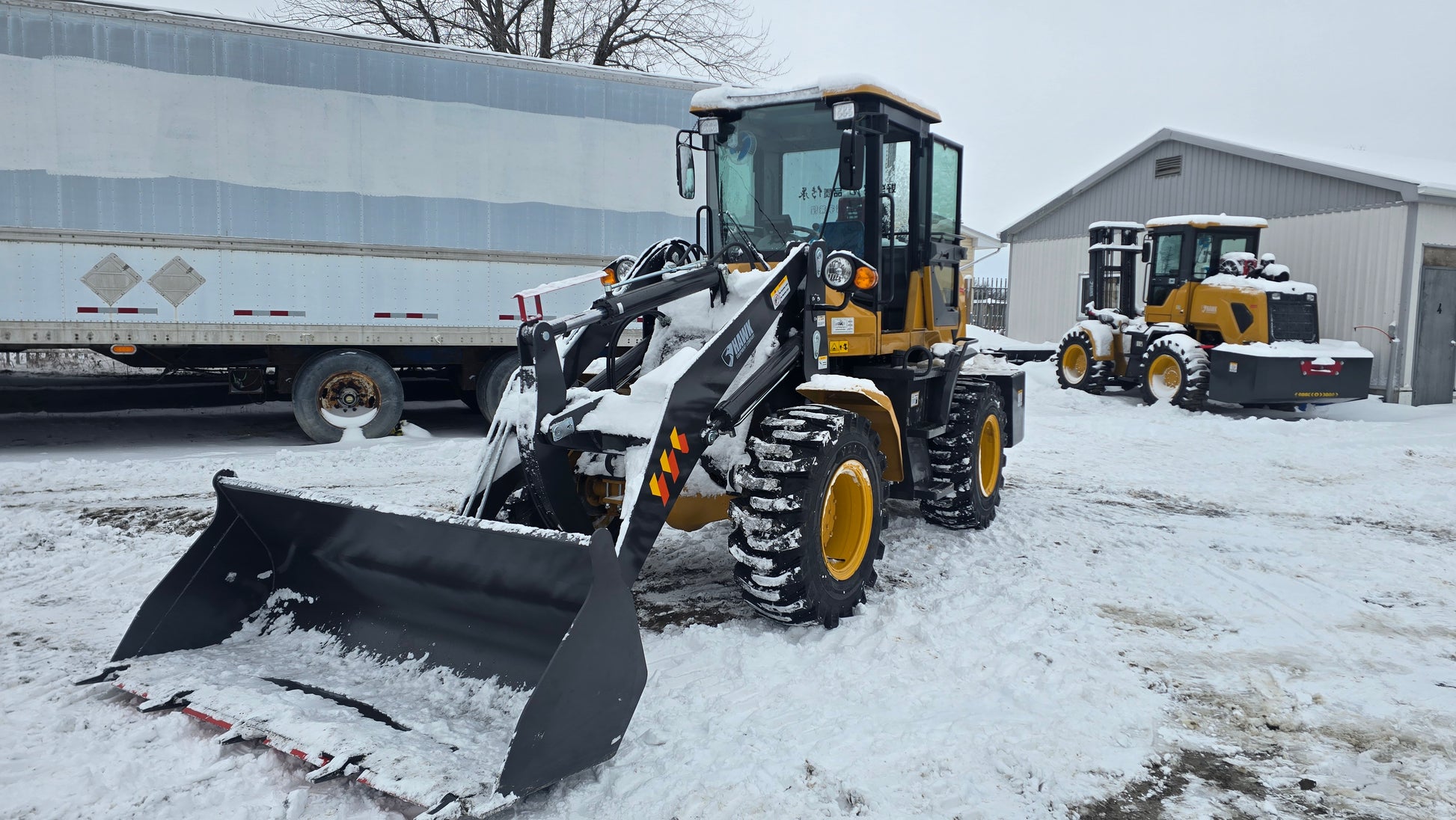

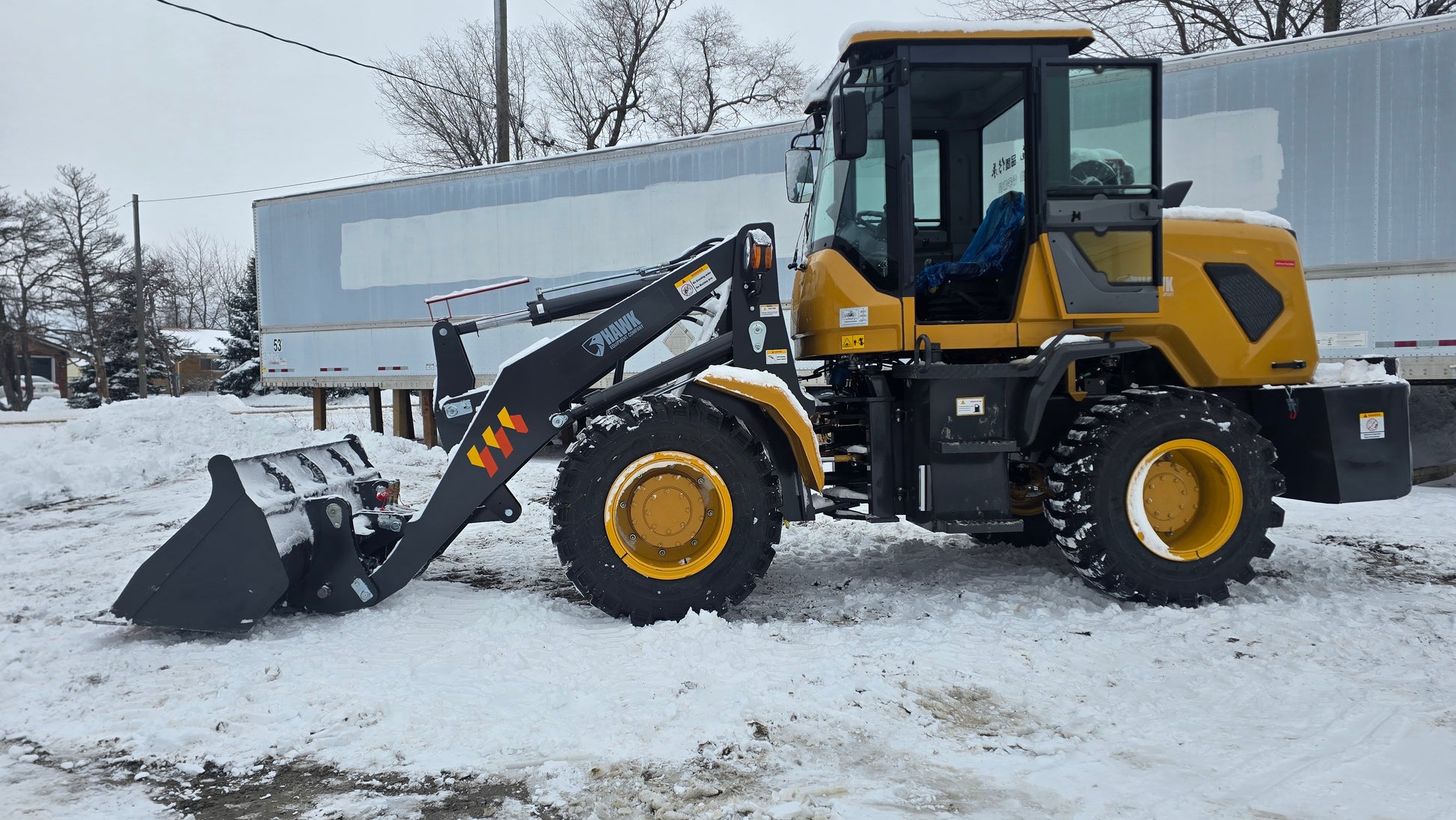

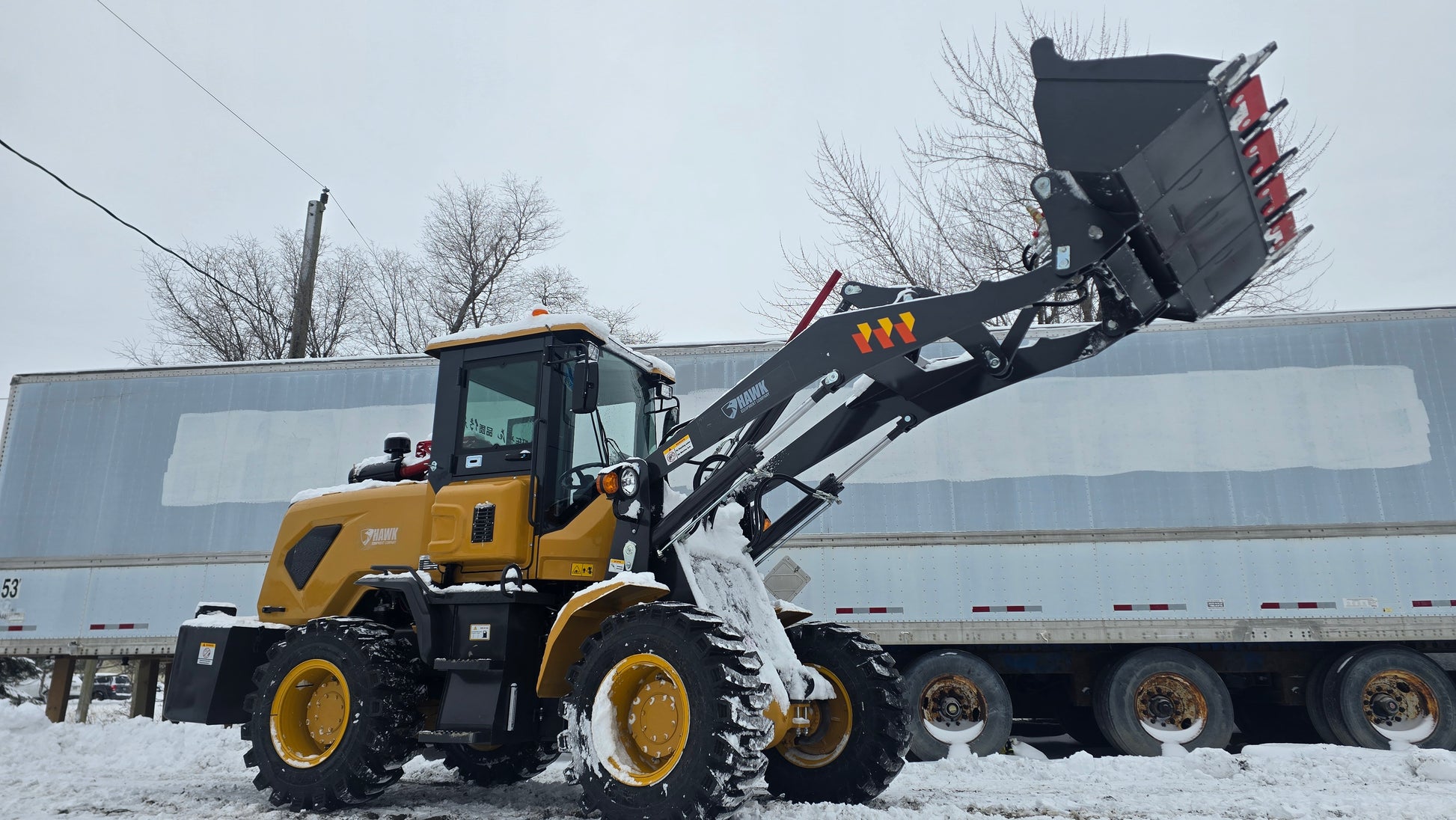

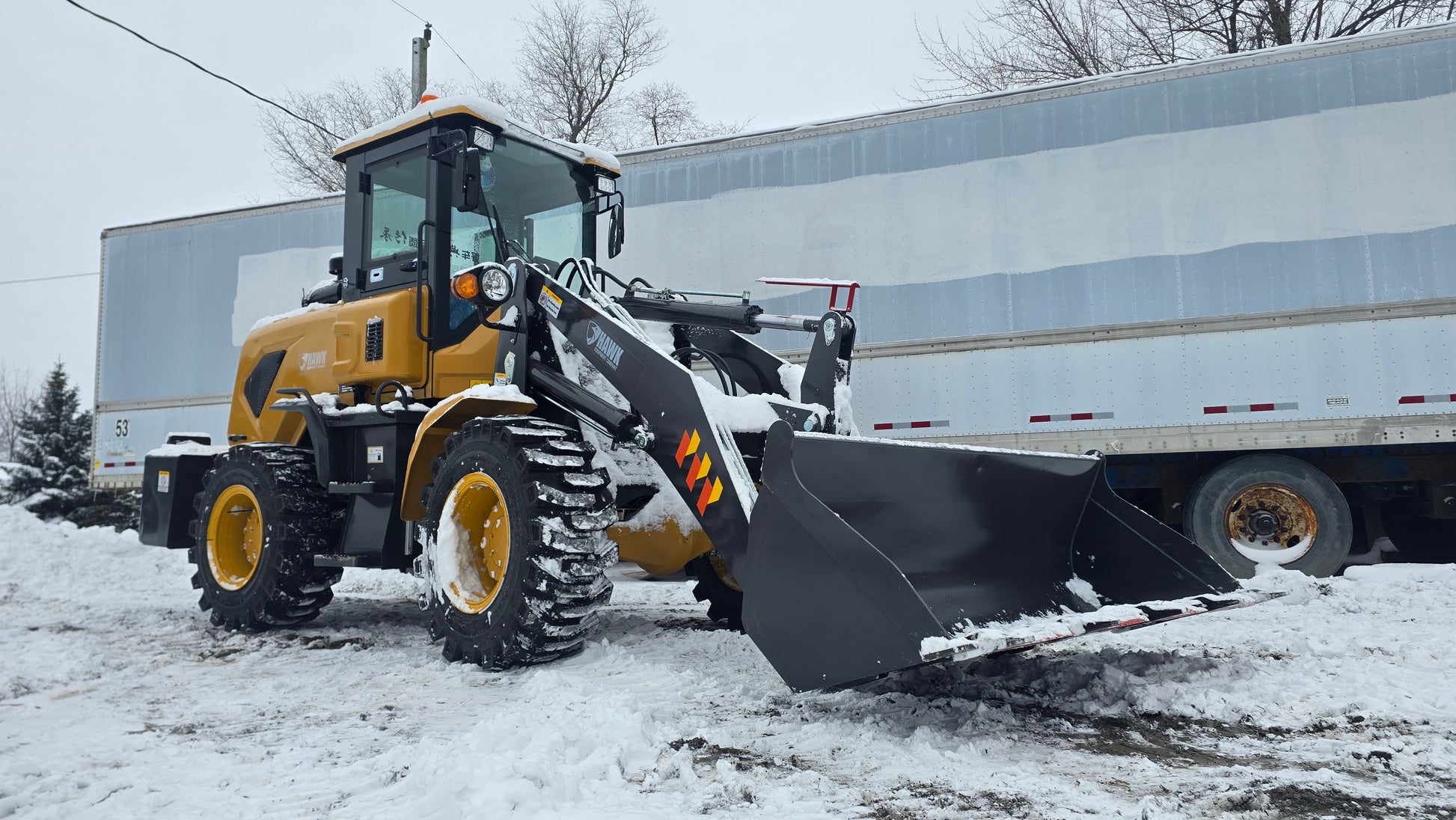

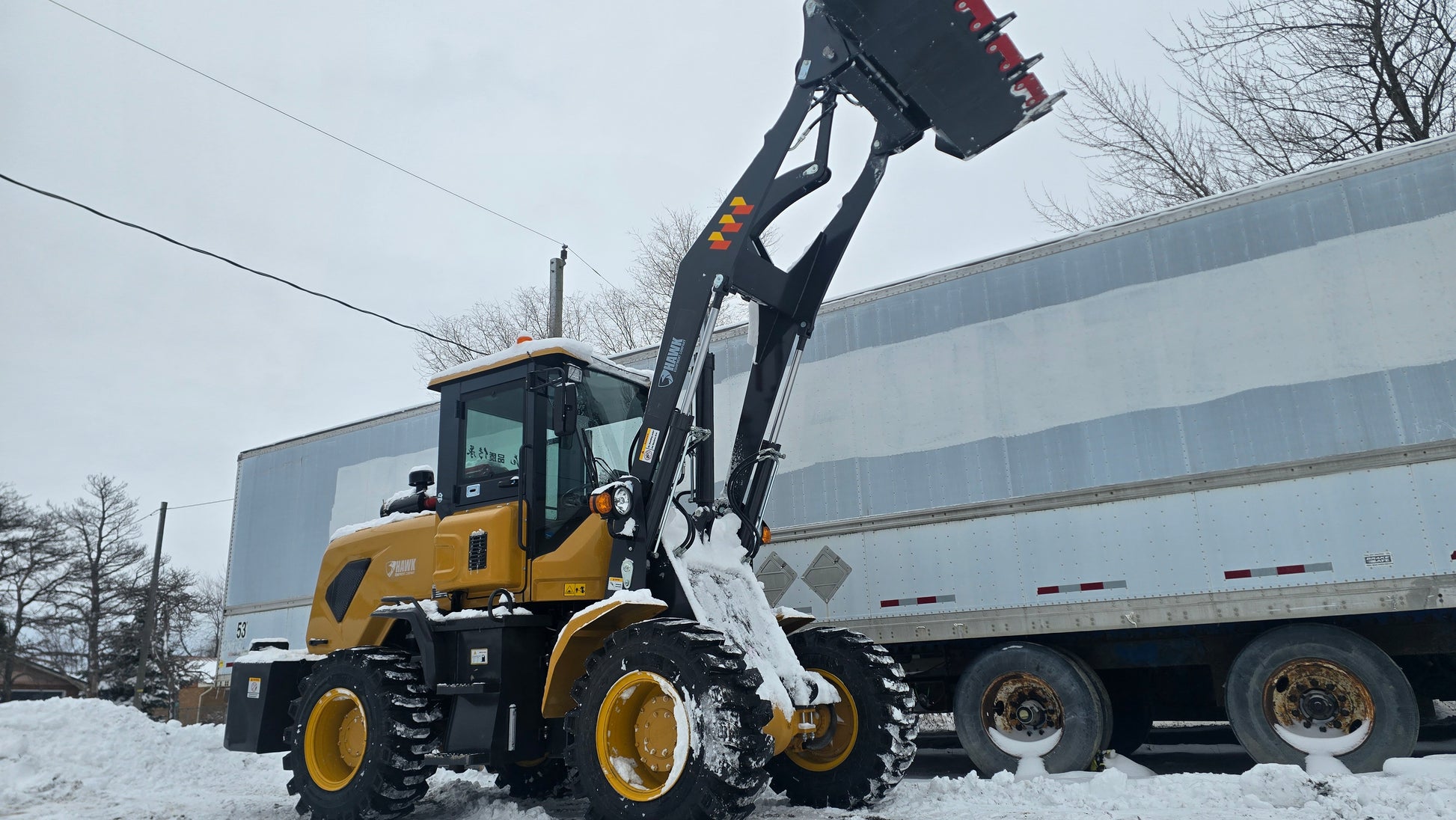

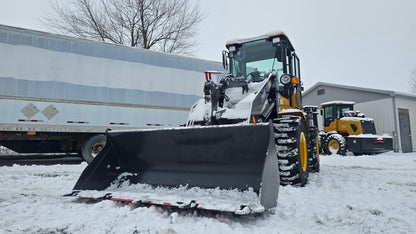

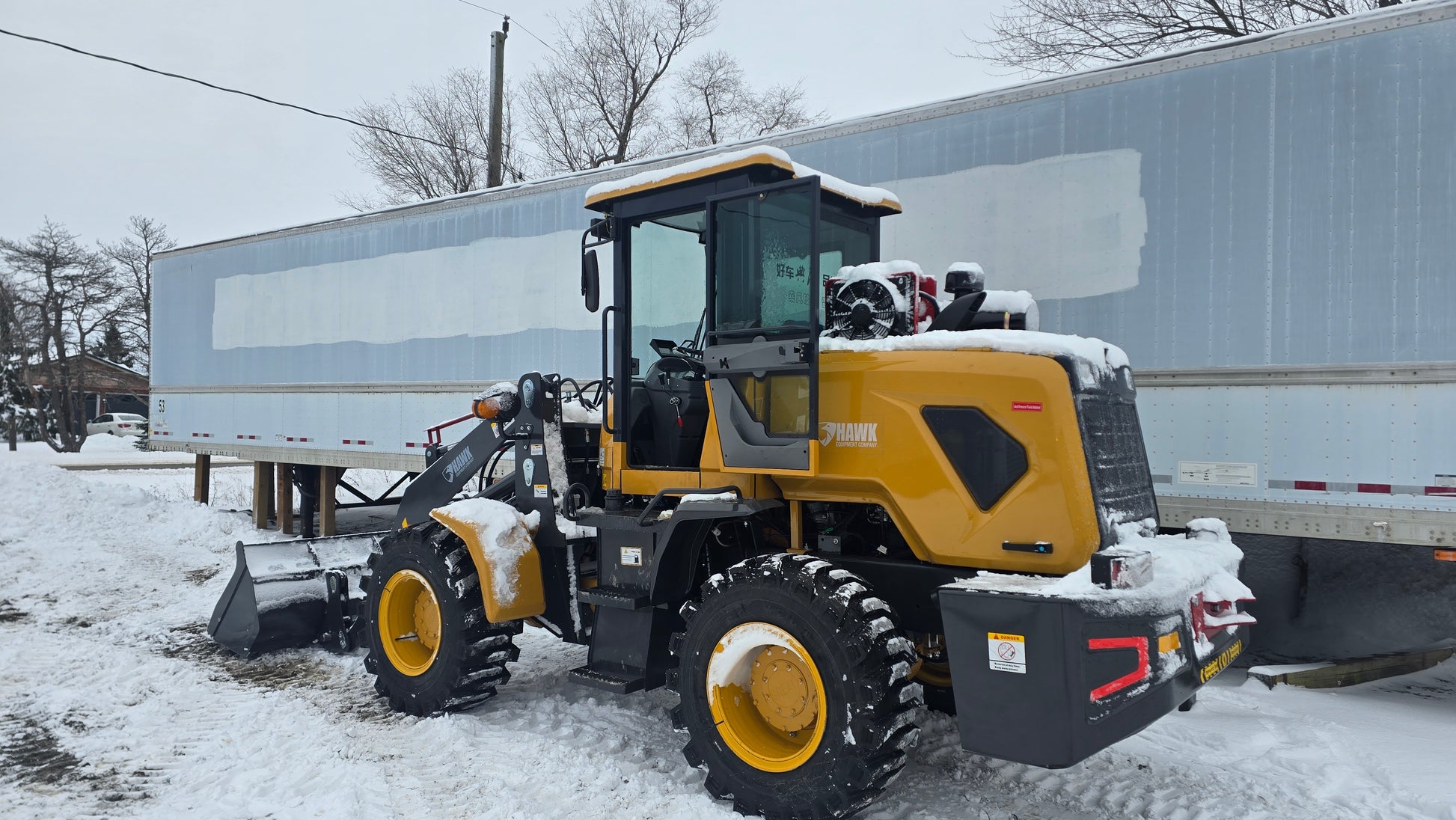

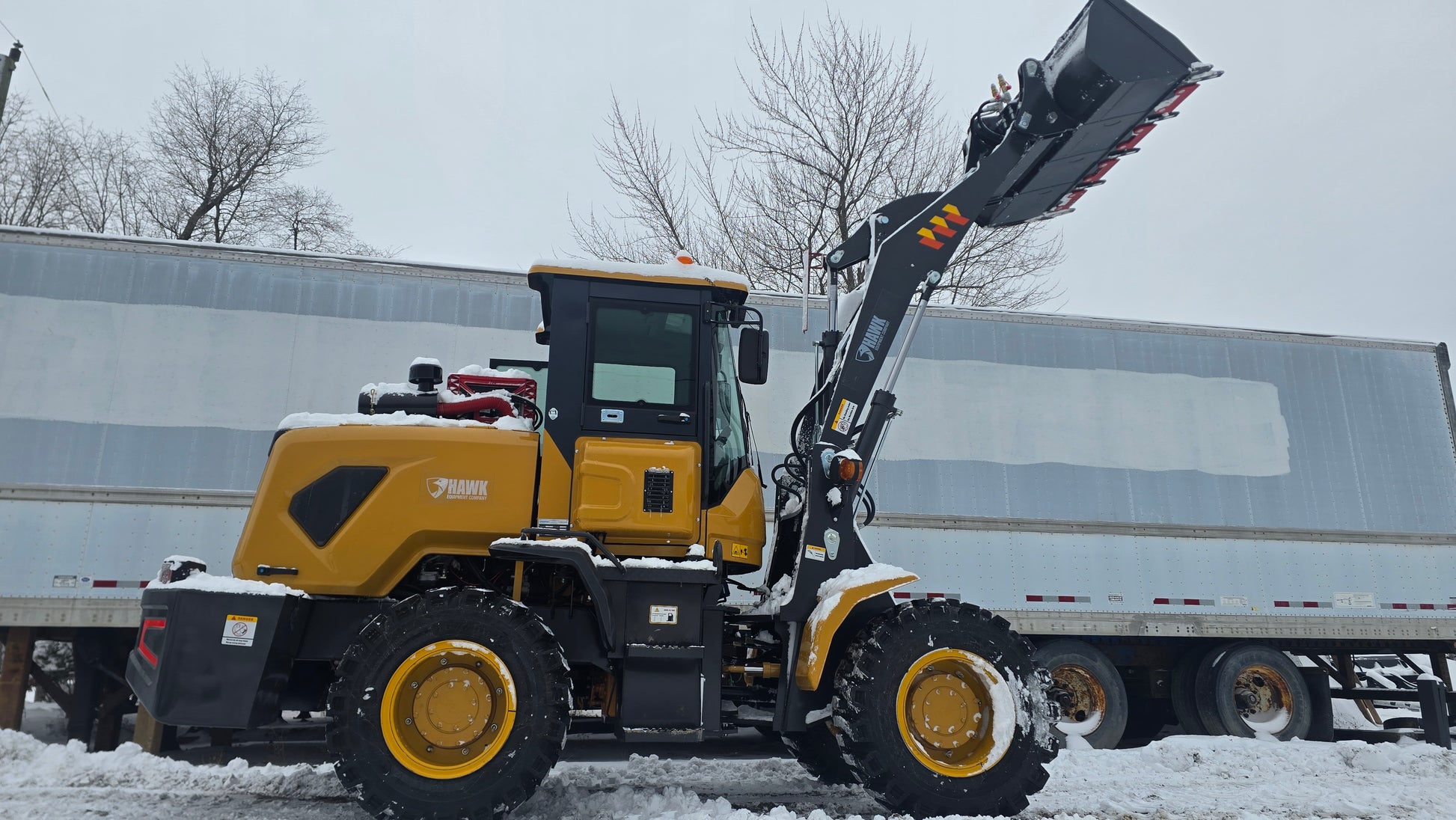

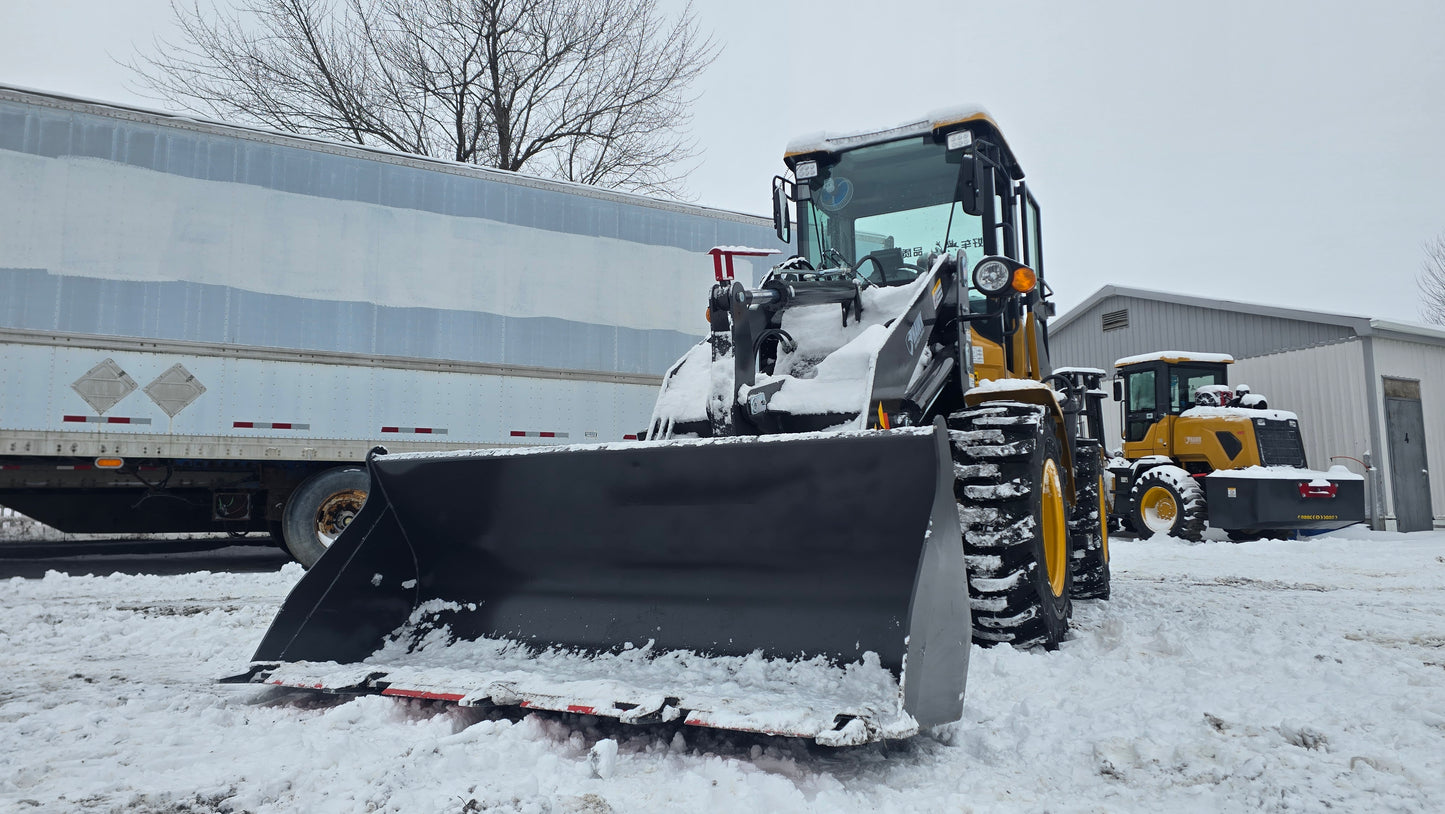

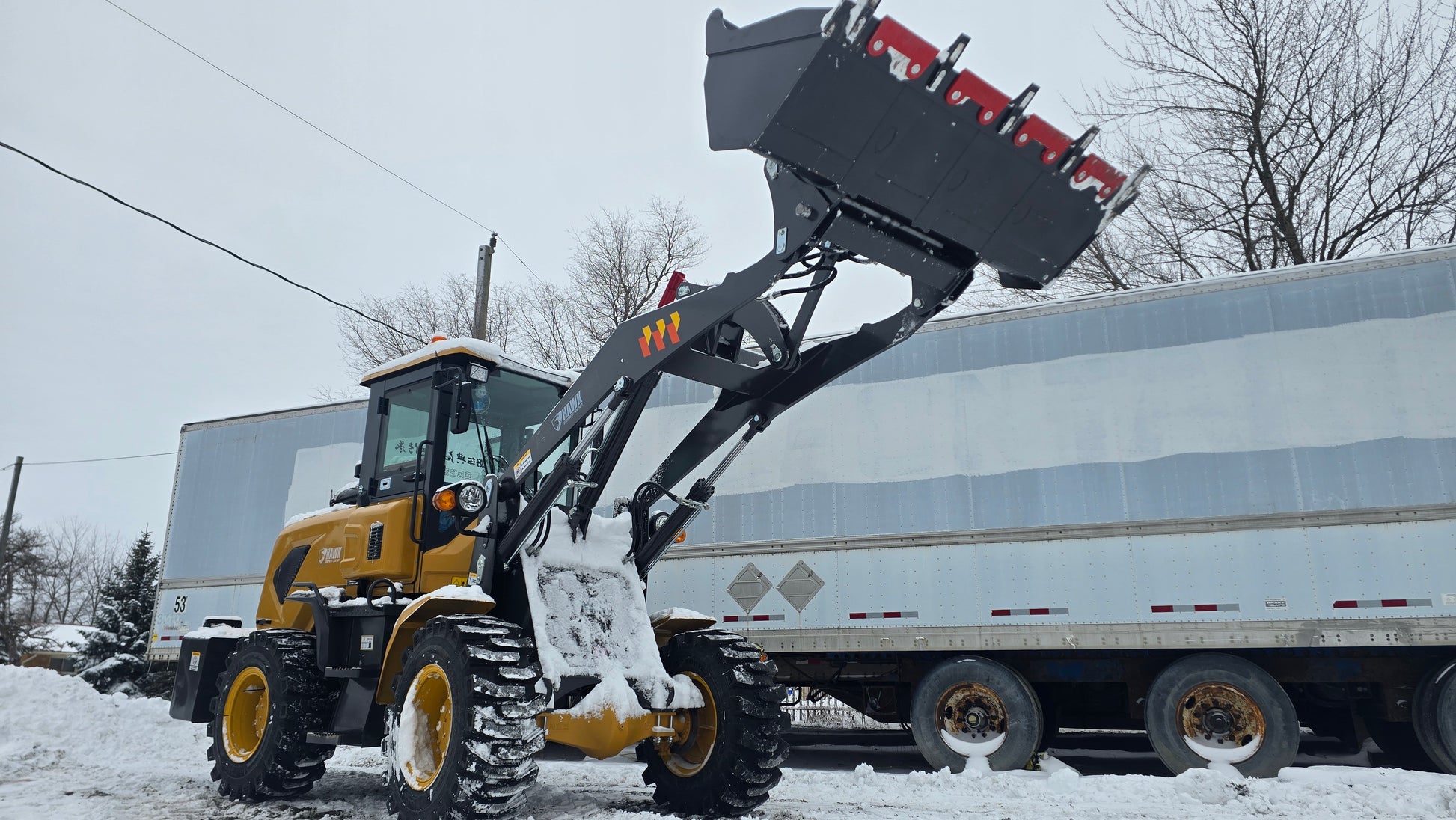

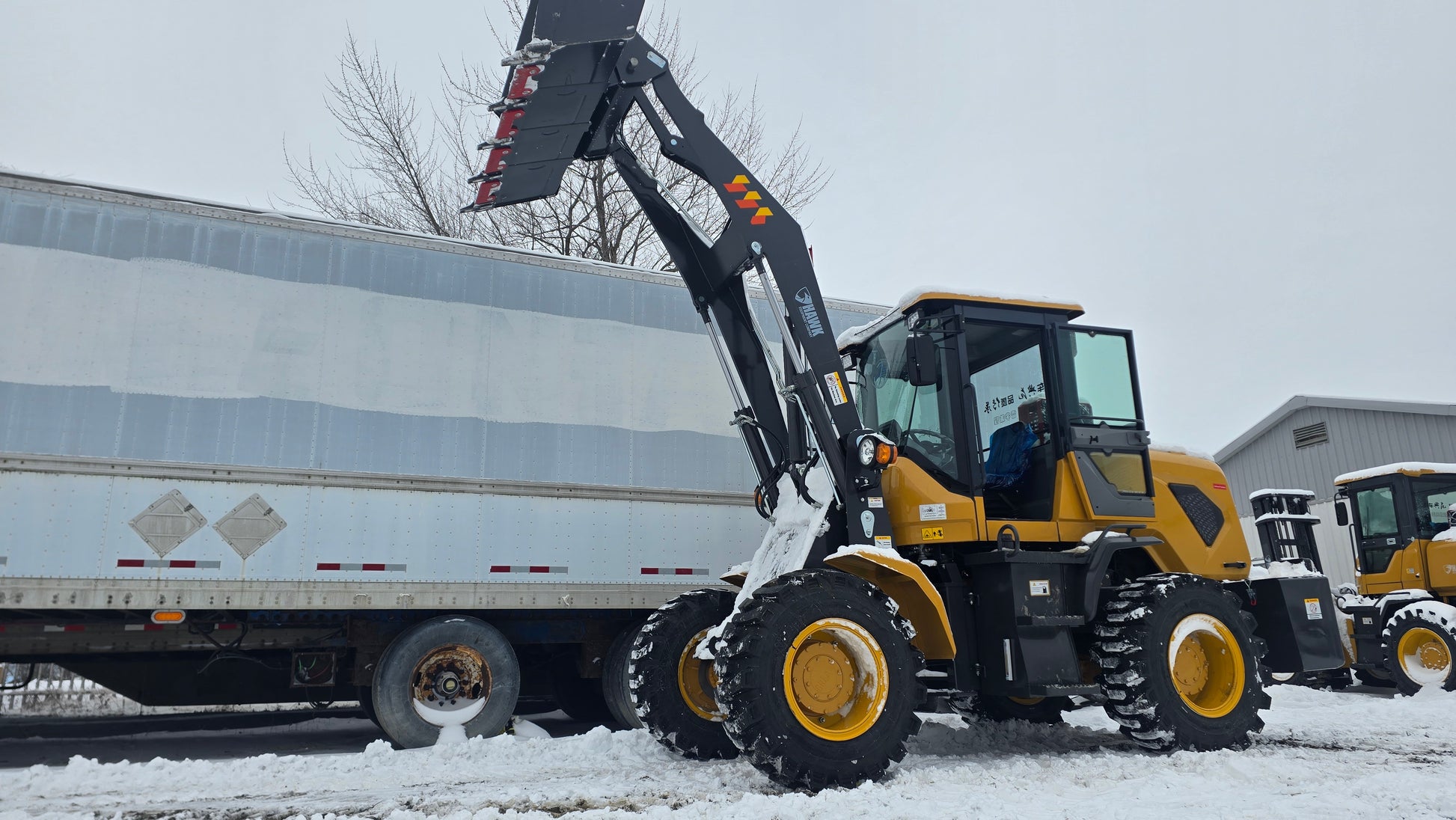

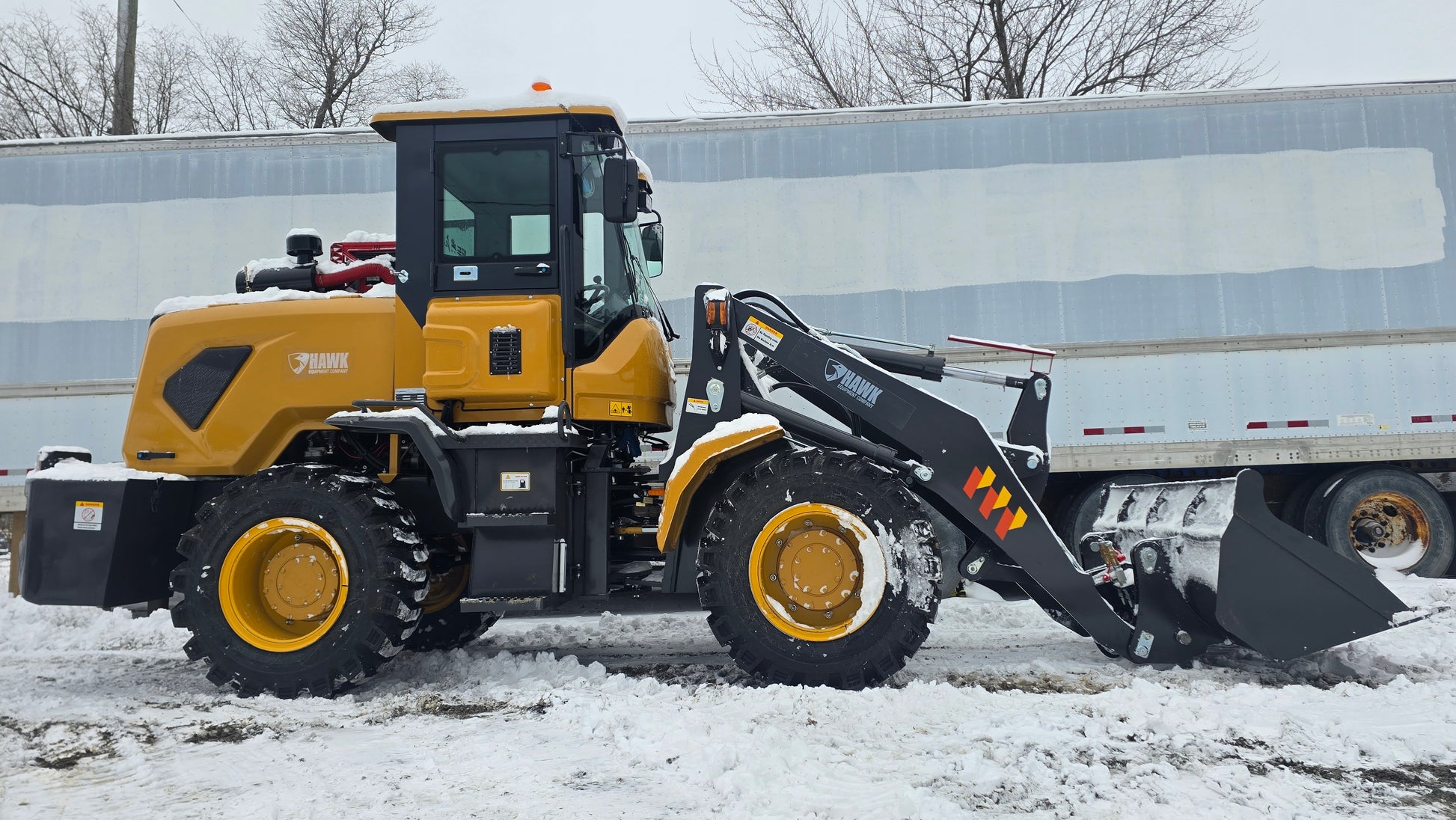

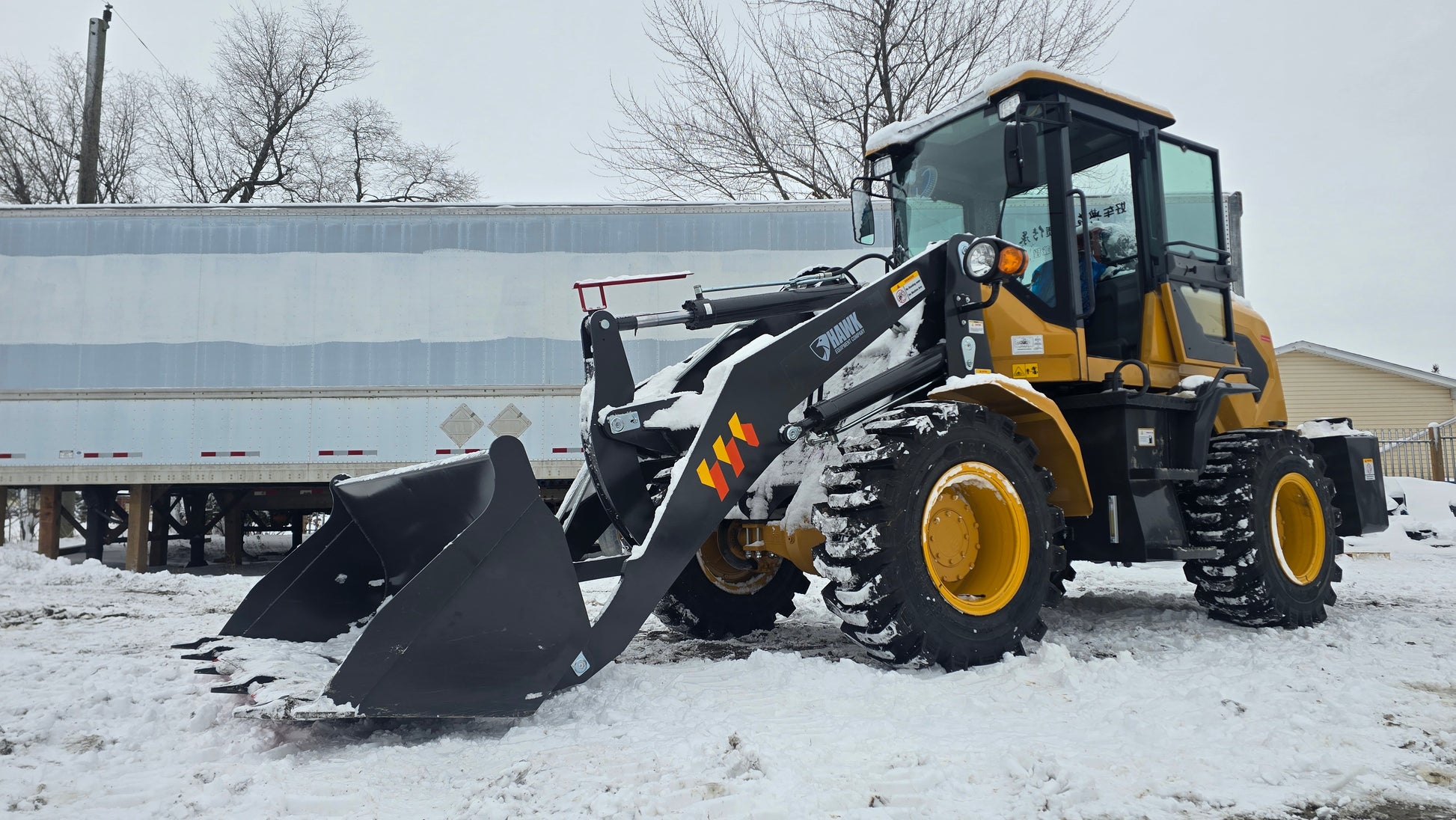

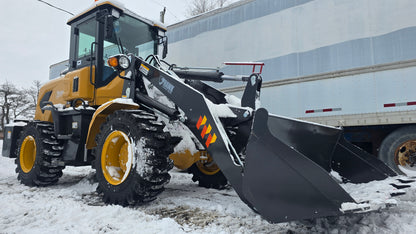

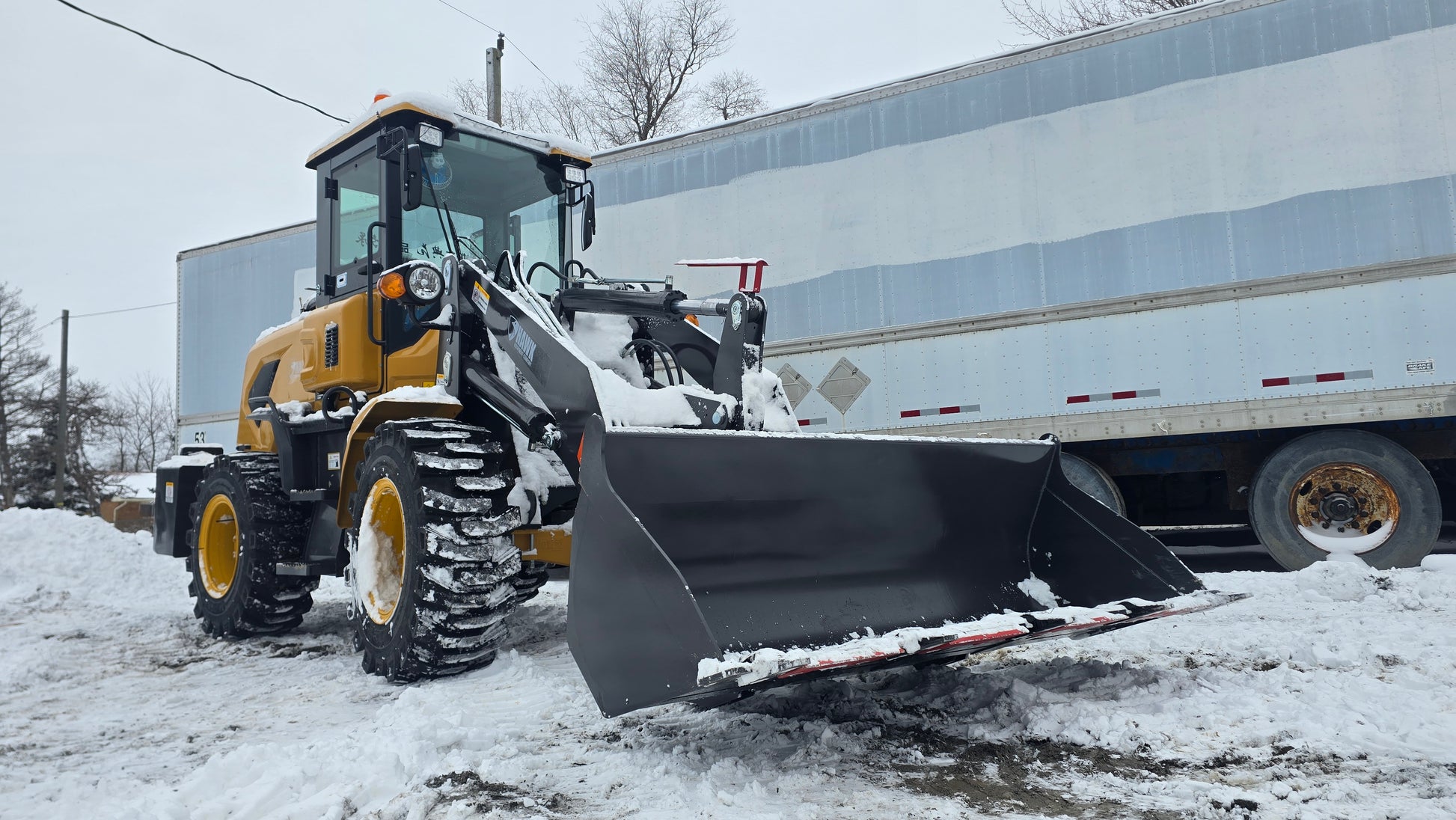

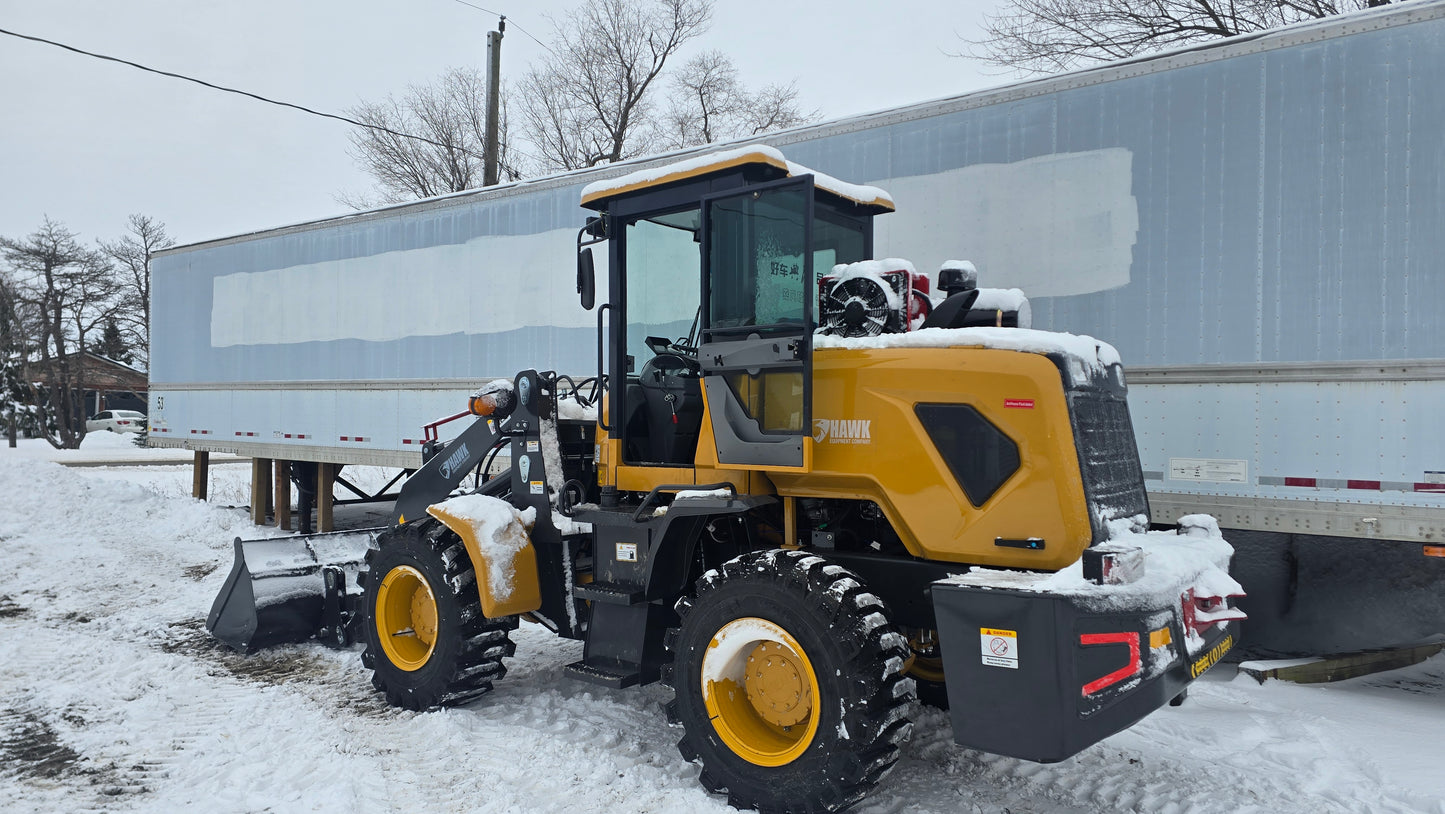

The H940 Wheel Loader is a robust and versatile machine engineered for reliable performance in construction, agriculture, material handling, and light quarry applications. Featuring a powerful diesel engine, four-wheel drive, and a high-efficiency hydraulic system, it delivers strong breakout force, smooth operation, and excellent maneuverability. Designed for durability and ease of maintenance, the H940 offers dependable productivity in demanding working conditions, including cold-climate environments.
H940 – Technical Specifications
Model
- H940 with Volvo style quick connect

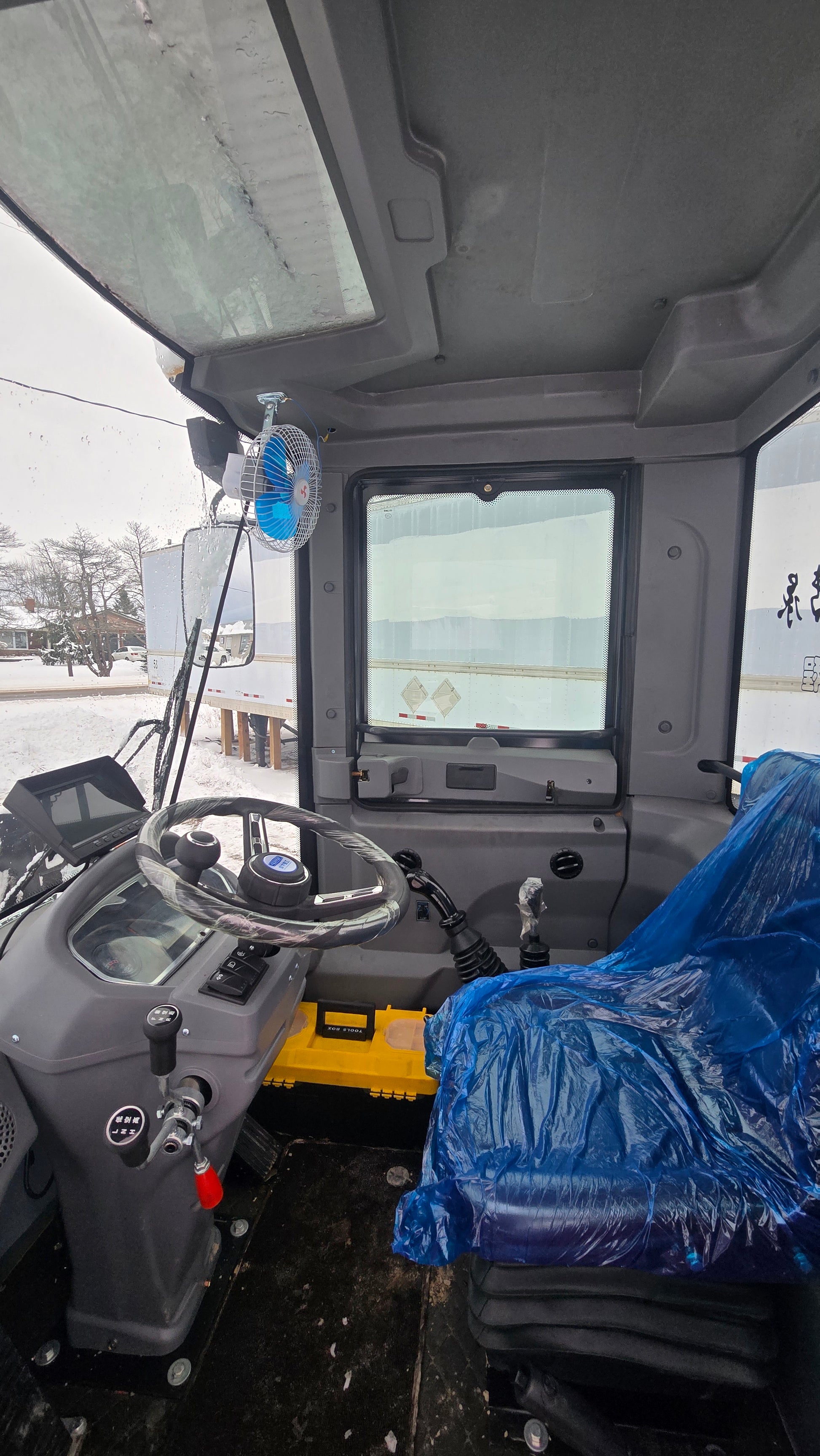

- Heat and AC
- Back Up camera
Engine

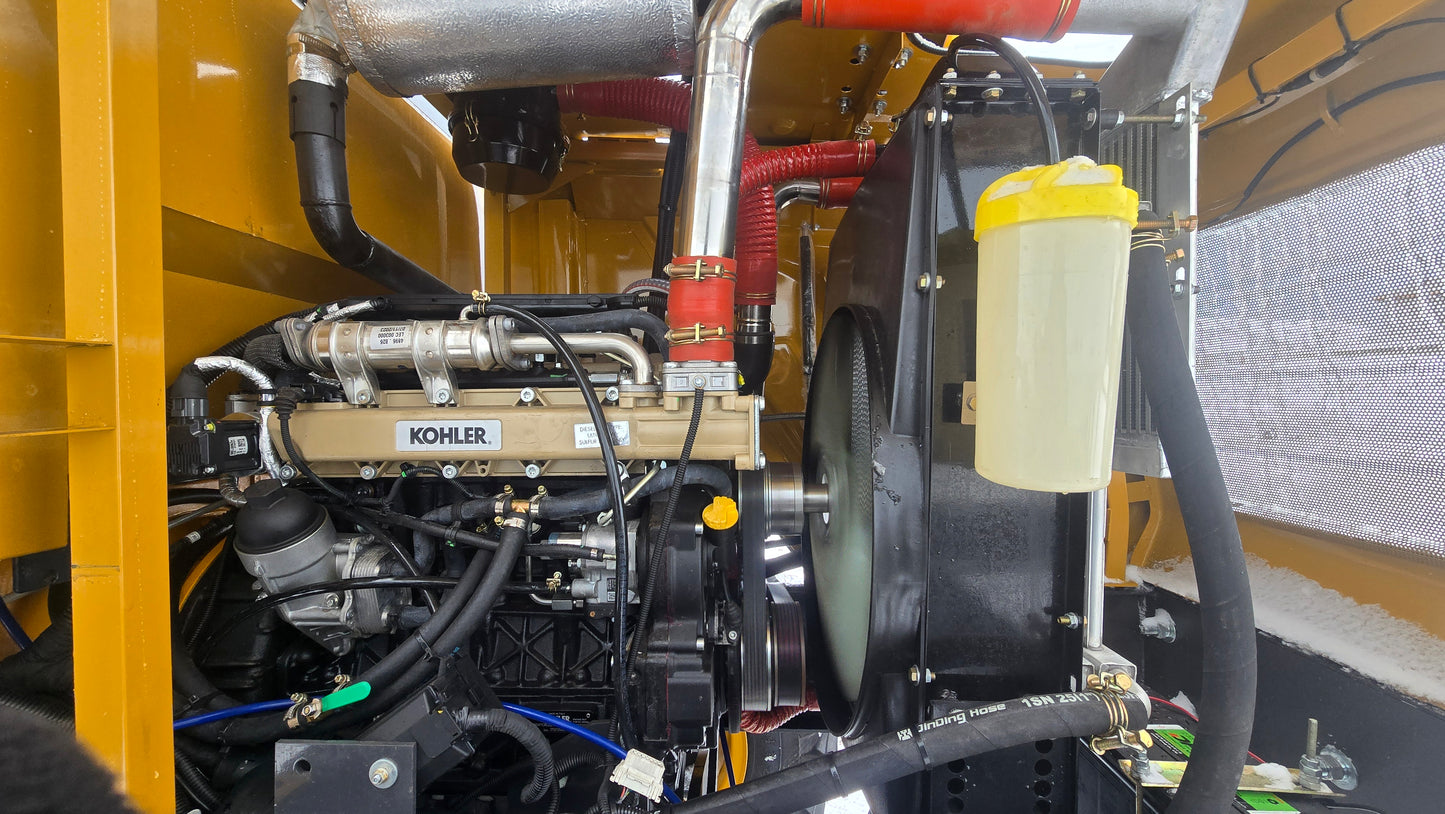

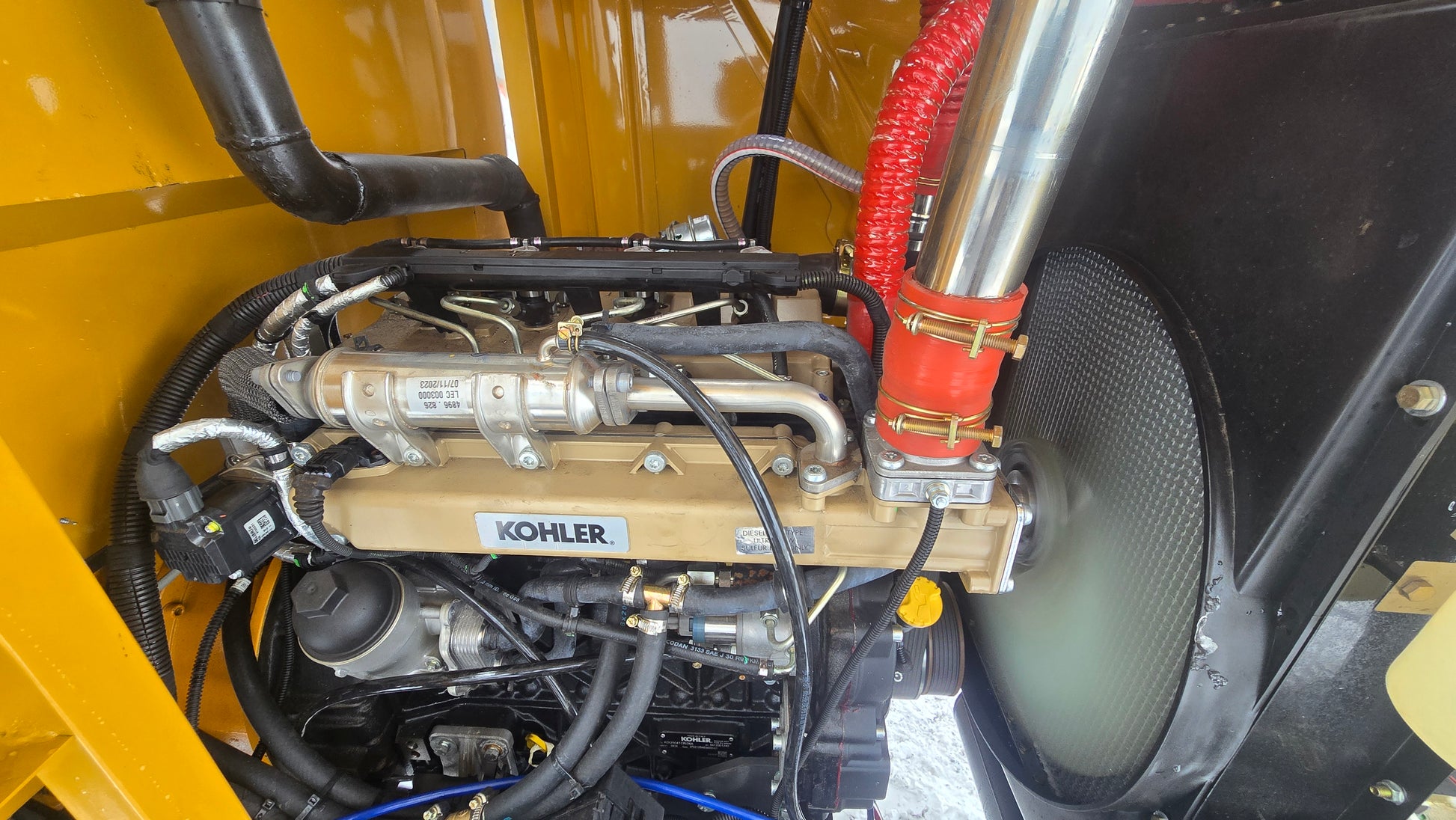

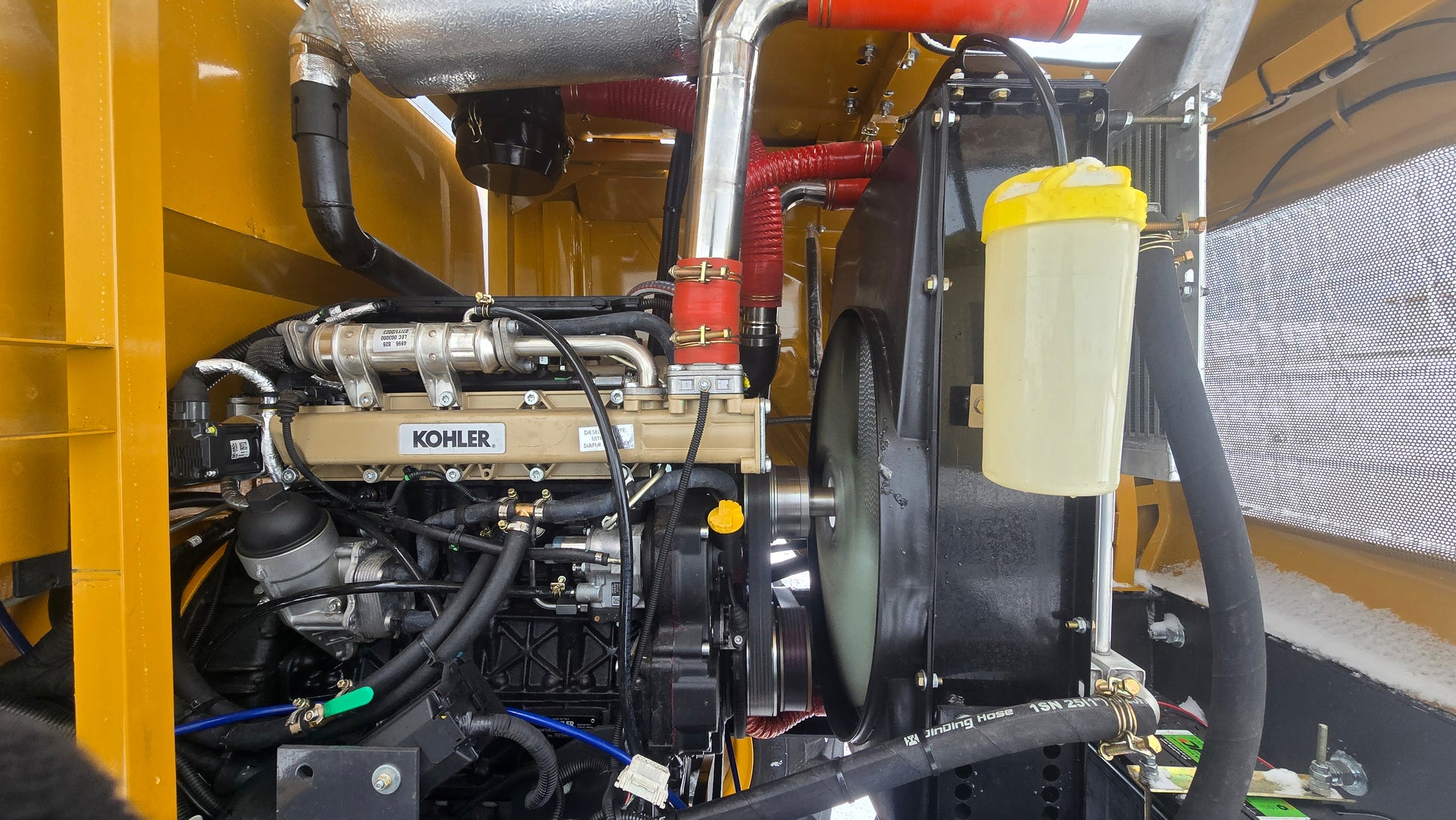

• Kohler Engine
• Rated Power: 55 kW / 75 HP
Rated Load
• 2000 kg

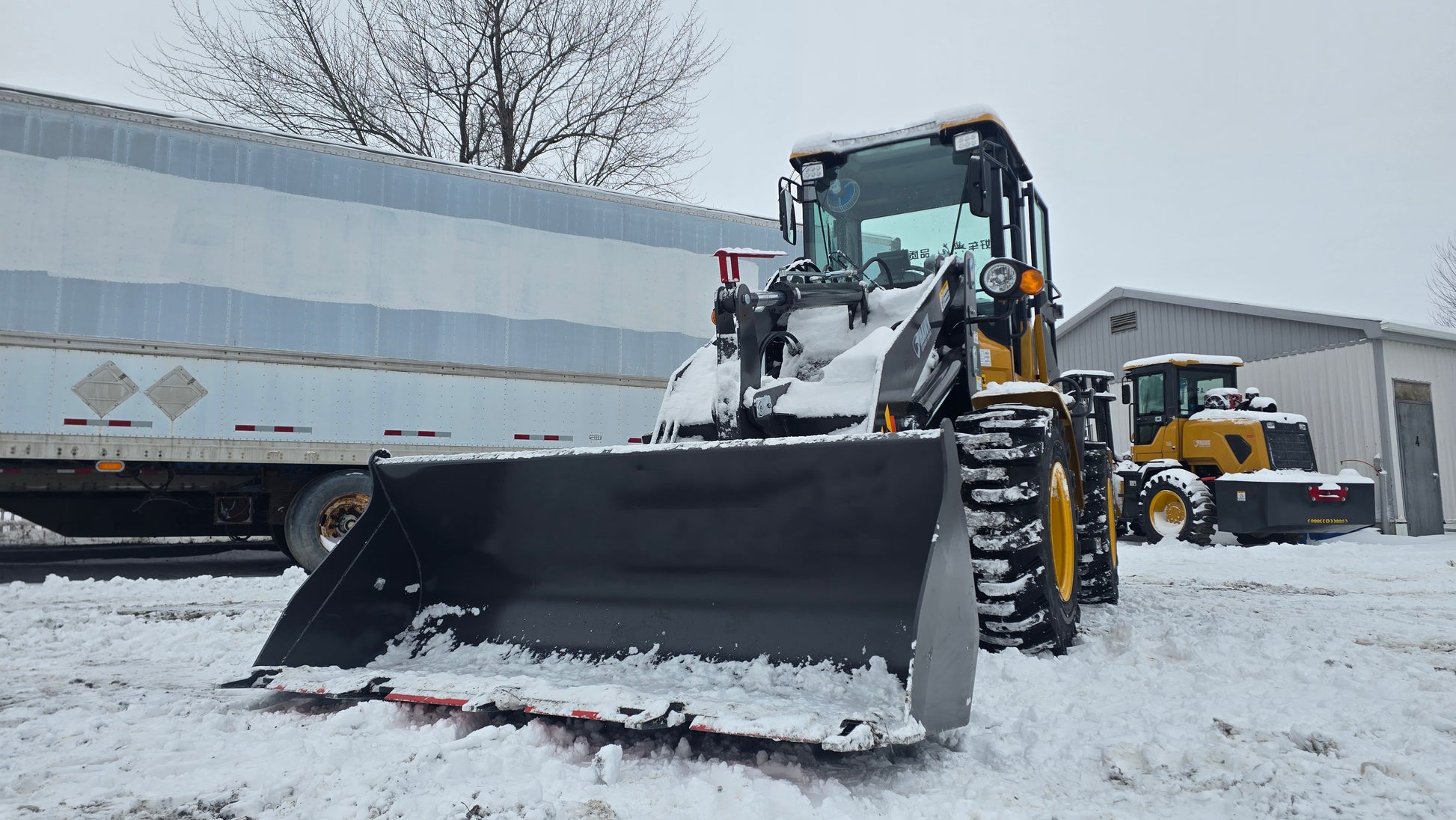

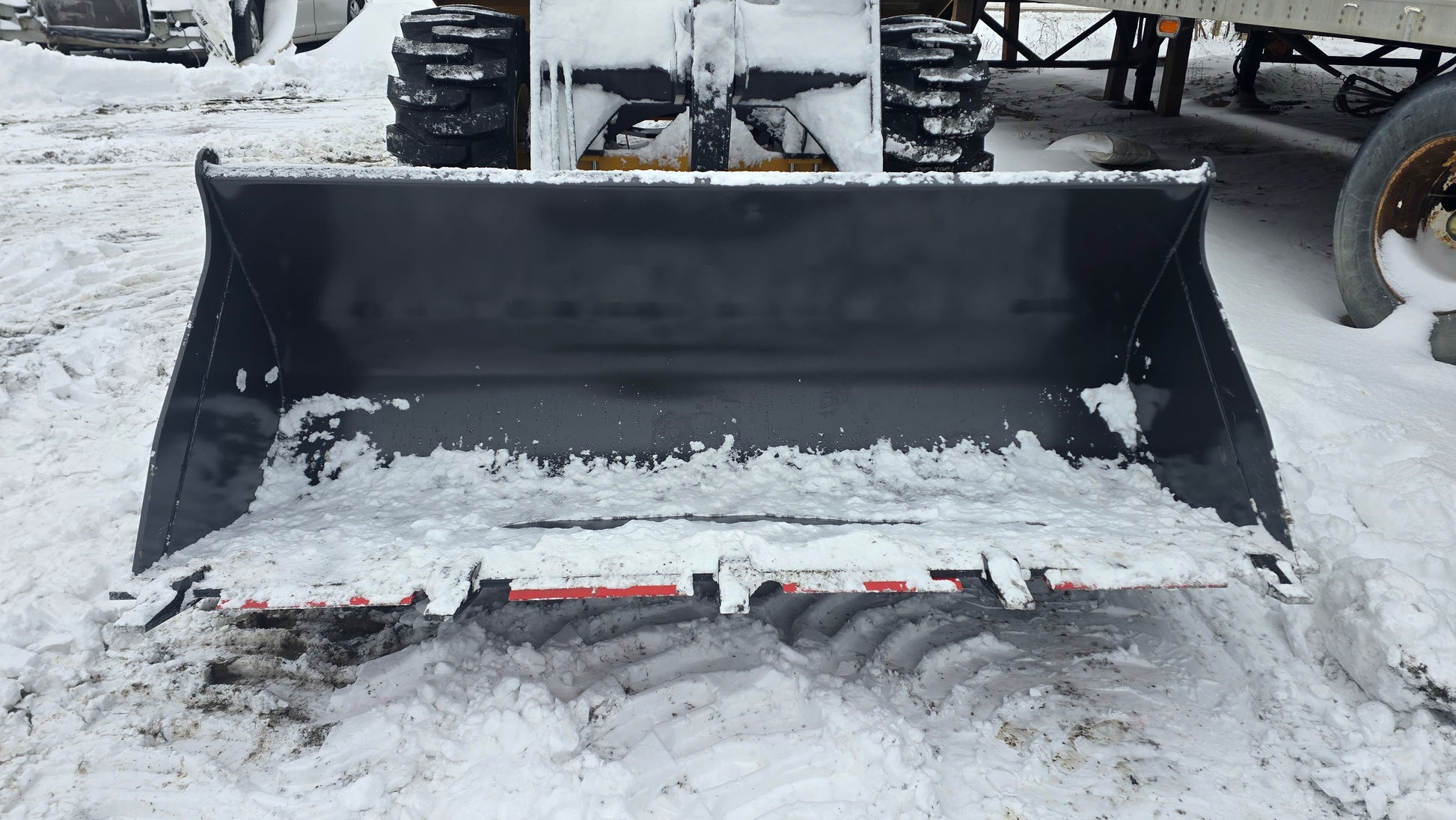

Bucket
• Bucket Width: 2.0 m
• Rated Bucket Capacity: 1.0 m³
Dimensions & Weight
• Overall Dimensions (L × W × H): 5.9 m × 2.0 m × 2.85 m
• Overall Weight: 4.26 tons
Wheel & Tire
• Wheelbase: 2.43 m
• Tire Model: 16/70-20
Performance Parameters
• Dumping Height: 3.5 m
• Flat Lift Height: 4.2 m
• Unloading Distance: 1.2 m
• Minimum Turning Radius: 3.3 m
• Maximum Travel Speed: 35 km/h
Drive System
• Driving Method: Four-Wheel Drive (4WD) with Air brakes
• Drive Axle Model: Center Wheel Hub Reduction Axle
Hydraulic System
• Hydraulic Pump Model: 1045
• Maximum Hydraulic System Pressure: 20 MPa
Transmission System
• Continuously Variable Transmission (CVT)
• Dual Speed: High & Low
Cooling System
• Dual-Piece Hydraulic Torque Converter Oil Radiator
2 Years Warranty on engine with Kohler dealership
1 year warranty on all parts only with HEC
